Specification of the Avtech DGH8536L 36 Channel NVR
| Hardware |
| Video Input |
One LAN port (up to 36 IP cameras) |
| Video Output |
HDMI, VGA / Composite |
| Video Output Resolution |
Up to 3840 x 2160 (4K2K) |
| HDD Storage** |
Eight 14TB hard disks |
| USB Port |
YES |
| Ethernet |
LAN port |
| Internet port |
|
|
| Software |
| Video Compression Format |
H.265 |
| Audio Compression Format |
G711 |
| Local / Remote Display Mode |
36CH |
| Local / Remote Playback Mode |
16CH |
| Local single-channel playback |
YES |
| Recording Mode |
Manual, Event, Alarm / Schedule |
| Record Stream |
Dual |
| Recording Throughput |
Up to 540 IPS at 8MP (3264 x 2448), Up to 300Mbps |
| Pre-alarm Recording |
YES |
| Quick Search |
Time / Event |
| Event Notification |
Push Status / Video Mail / Message Mail |
| Security |
Multiple user access levels with password |
| EaZy Networking |
YES |
| Scenario Setup |
YES |
| Pop-up & Preview |
YES |
| Free DDNS Service |
YES |
| Network |
| Protocols |
DDNS, PPPoE, DHCP, NTP, SNTP, TCP/IP, ICMP, SMTP, FTP, HTTP, RTP, RTSP, RTCP, IPv4, Bonjour, UPnP, DNS,UDP, IGMP, QoS, SNMP |
| ONVIF Compatible |
YES |
| Max. Online User |
20 |
| Remote Access |
(1) Windows Edge, Internet Explorer, Google Chrome, Mozilla Firefox & Safari on Windows & MAC operating systems; (2) CMS Lite, 32CH CMS software for Windows operating systems; and (3) EagleEyes on iOS & Android mobile devices |
| General |
| Power Source (±10%) |
DC19V / 3.42A |
| Power Consumption (±10%) |
14.25W (No hard disks connected) |
| Operating Temperature |
10C ~ 40C (50F~104F) |
| Operating Humidity/th>10% ~ 85% |
| Dimensions (mm)**** |
358 x 267 x 152 |
| Net Weight (kg) |
5.8 |
| Minimum PC Browsing Requirements |
Intel core i3 or higher, or equivalent AMD 2GB RAM, AGP graphics card, Direct Draw, 32MB RAM Windows 10, Windows 8, Windows 7, Windows Vista & Windows XP, DirectX 9.0 or later; Internet Explorer 7. x or later (Windows Edge not supported) |
| Optional Peripherals |
Full HD Matrix (HDM02) / PTZ Joystick (AVX102) |
| Certification |
CE / UL |

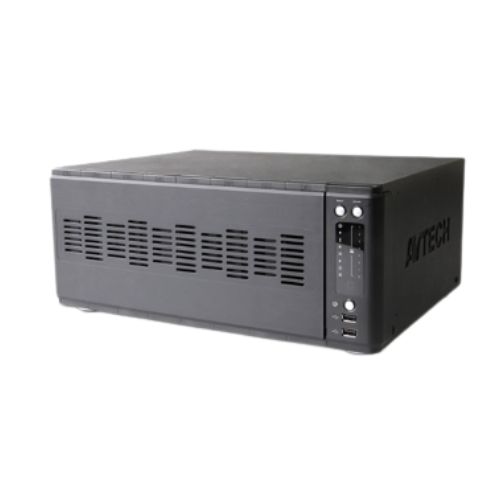

Avtech DGH8536L 36 Channel NVR
Avtech DGH8536L 36 Channel NVR provides 36 channels with H.265 compression. It also supports eight SATA HDDs with capacities of up to 14TB each. The online mode is EagleEyes/CMS. the
NVR video output resolution of 4K2K (3840x2160). video input on one LAN port.
