| Brand | Biostar |

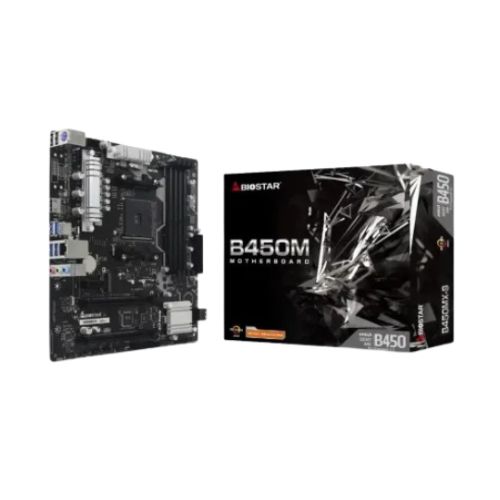

| Model | B450MX-S |
| Body Color | Black |
| Chipset Brand | AMD |
| Chipset | AMD B450 |
| Sockets Supported | AM4 |
| Built-in Processor | No |
| Supported CPU | AMD Ryzen APU (Raven Ridge, Picasso) or Ryzen CPU (Summit Ridge, Pinnacle Ridge, Matisse) |
| Generation | Not Applicable |
| Memory Type | DDR4 |
| Memory MHz | 1866, 2133, 2400/ 2667/ 2933(OC)/ (OC), 3200 (OC), 3600 (OC), and 4000 (OC) |
| Memory Channel | Dual |
| Memory Slot | 4 |
| Memory Max. | 128GB |
| Optane Memory Support | No |
| Storage Interface | 6.0Gb/s |
| M.2/SSD Expansion Slot | 1 |
| Graphics | Integrated |
| Graphics Chipset | Integrated With Processor |
| PCI Express Slot | 1 x PCIe 3.0 x 16 (Supports PCIe 3.0 x16 mode with AMD Ryzen processors, Supports PCIe 3.0 x8 mode AMD Ryzen with Radeon Vega Graphics processors) (AMD Processors), 1 x PCIe 2.0 x 16 (x4 mode), 1 x PCIe 2.0 x 1 (AMD Chipset) |
| Audio Chipset. | ALC887 / 897 |
| Audio Channel | 7.1 |
| LAN Chipset | Realtek RTL8111H |
| LAN Speed (Mbps) | 10/ 100/ 1000 Mbps |
| WiFi | No |
| Bluetooth | No |
| USB Port | 2 x USB 2.0, 4 x USB 3.2 Gen 1 |
| VGA Port | No |
| DVI Port | No |
| HDMI Port | 1 |
| DisplayPort (DP) | No |
| SATA Port | 4 x SATA III |
| Thunderbolt | No |
| TPM Port | No |
| COM Port | 1 |
| CrossFire Support | No |
| Sli Support | No |
| Raid Support | 0, 1, 10 |
| RGB Support | No |
| Approx. Power Consumption | 65W |
| Form Factor | Micro-ATX |
| Supported Operating System | Windows 7, 10, |
| Warranty | 3 Year |
