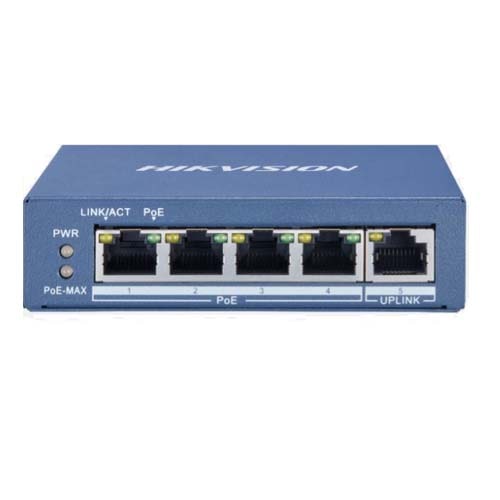

Hikvision DS-3E0505P-E/M 4 Port POE Switch
- Network Parameters
- Ports4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding Mode Store-and-forward switching
- MAC Address Table2 K
- Switching Capacity10 Gbps
- Packet Forwarding Rate7.44 Mpps
- Internal Cache1 Mbits
- PoE Power Supply
- PoE Standard IEEE 802.3af, IEEE 802.3at
- PoE Power Pin End-span: 1/2(-), 3/6(+)
- PoE Port Ports 1 to 4
- Max. Port Power30 W
- PoE Power Budget35 W
- General
- Dimensions (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
- Shell Metal material, fan-free design
- Gross Weight0.76 kg (1.67 lb)
- Net Weight0.27 kg (0.58 lb)
- Operating Temperature–10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature–40 °C to 85 °C (–40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Supply48 VDC, 0.8 A
- Power Consumption In Idle3 W
- Max. Power Consumption38 W
- Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 18)
- Safety UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2028)
- Chemistry CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2017)
