Key features of the Hivideo PTZ-05AIP5H-20X 5 inch 5MP Full Color PTZ
Specification of the Hivideo PTZ-05AIP5H-20X 5 inch 5MP Full Color PTZ
| Category | Details |
|---|---|
| Model | PTZ-05AIP5H-20X |
| Brand | Hivideo |
| Camera Type | PTZ IP Camera |
| Image Sensor | 1/2.8" CMOS Sensor |
| Resolution | 5MP (2592 × 1944) |
| Compression | H.264 / H.265 |
| Optical Zoom | 20X Optical Zoom |
| Lens Type | Motorized Varifocal Lens |
| Focal Length | Approx. 4.7mm – 94mm |
| Night Vision | Full Color + IR Night Vision |
| IR Distance | Up to 100 meters |
| White Light Distance | Up to 80 meters |
| Pan Rotation | 0° – 355° Continuous |
| Tilt Rotation | 0° – 90° |
| PTZ Speed | Adjustable Smart PTZ Speed |
| Auto Tracking | Yes |
| Human Detection | Yes |
| Audio Support | Built-in Microphone |
| Two-Way Audio | Supported |
| Smart Features | Motion Detection, Auto Cruise, Preset Patrol |
| Preset Points | Up to 128 Presets |
| Network Interface | RJ45 10/100Mbps |
| ONVIF Support | Yes |
| Mobile Monitoring | Android & iOS |
| Remote Access | P2P Cloud Support |
| Waterproof Rating | IP66 |
| Power Supply | DC 12V |
| Power Consumption | <20W |
| Housing Material | Metal |
| Installation | Wall / Pole Mount |
| Color | White |
| Warranty | 1 Year |

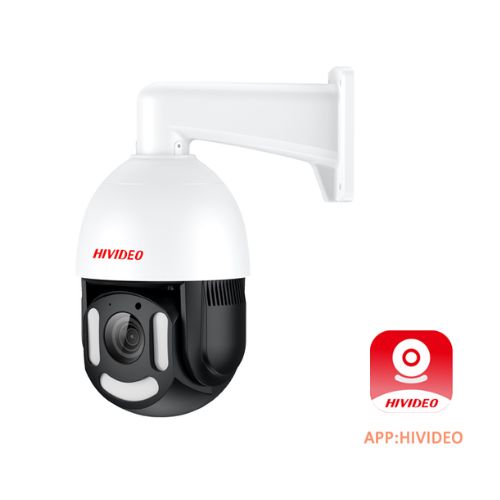

The Hivideo PTZ-05AIP5H-20X 5 Inch 5MP Full Color PTZ Camera is a professional-grade smart surveillance camera designed for large-area monitoring with powerful zoom capability, intelligent PTZ control, and advanced full-color night vision. Built for commercial security, factories, parking areas, offices, warehouses, and outdoor environments, this camera delivers detailed long-range monitoring with flexible movement control.
Equipped with a 5MP high-resolution image sensor, the camera captures sharp and detailed video footage with smooth performance up to 25fps. The high-resolution output helps identify faces, vehicles, and distant objects more clearly, making it suitable for professional surveillance systems.
One of its biggest highlights is the 20X optical zoom lens, allowing users to zoom into distant subjects without losing image quality. Unlike digital zoom, optical zoom maintains image clarity, making it extremely useful for monitoring wide outdoor spaces such as roads, building perimeters, parking lots, and industrial sites.
The camera supports advanced PTZ (Pan-Tilt-Zoom) functionality with smooth horizontal and vertical movement control. It can rotate across wide viewing angles to monitor large areas using a single camera, reducing the need for multiple fixed cameras.
For nighttime surveillance, the camera features a smart full-color night vision system with multiple night modes, including:
It also includes powerful infrared LEDs with long-range night visibility support for clearer monitoring in dark environments.
The camera supports PoE (Power over Ethernet) and built-in audio functionality, allowing both power and data transmission through a single Ethernet cable while also recording sound. This simplifies installation and improves overall surveillance efficiency.
Its IP66 weatherproof metal housing ensures reliable outdoor operation under rain, dust, and harsh weather conditions. The camera is also compatible with ONVIF-supported NVR systems and remote monitoring applications for mobile and PC access.
The latest price of the Hivideo PTZ-05AIP5H-20X 5 inch 5MP Full Color PTZ in Bangladesh is 70,000 BDT. You can buy the Hivideo PTZ-05AIP5H-20X 5 inch 5MP Full Color PTZ from us at the best price. You can either purchase it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
