Key features of the ONV-H3005ES Gigabit 5-port Ethernet switch
Specification of the ONV-H3005ES Gigabit 5-port Ethernet switch
| Category | Details |
|---|---|
| Model | ONV-H3005ES |
| Brand | ONV |
| Switch Type | Unmanaged Ethernet Switch |
| Total Ports | 5 × 10/100/1000Mbps RJ45 Ports |
| Port Type | Auto MDI/MDI-X Adaptive |
| Network Standard | IEEE 802.3 / 802.3u / 802.3ab / 802.3x |
| Switching Capacity | 10Gbps |
| Forwarding Rate | 7.44Mpps |
| MAC Address Table | 2K |
| Buffer Memory | 2M |
| Forwarding Mode | Store-and-Forward |
| Jumbo Frame Support | 9.2K |
| Transmission Media | Cat5e/Cat6 UTP Cable |
| LED Indicators | Power, Link/Act |
| Power Supply | External DC5V Adapter |
| Power Consumption | Standby <1W, Full Load <4W |
| Cooling System | Fanless Design |
| Lightning Protection | 4KV Surge Protection |
| Operating Temperature | 0°C to 55°C |
| Installation | Desktop |
| Dimensions | 87.7 × 55 × 23.9 mm |
| Weight | Approx. 0.08 kg |
| Housing Material | Flame-Retardant Plastic |
| Warranty | 1 Year |

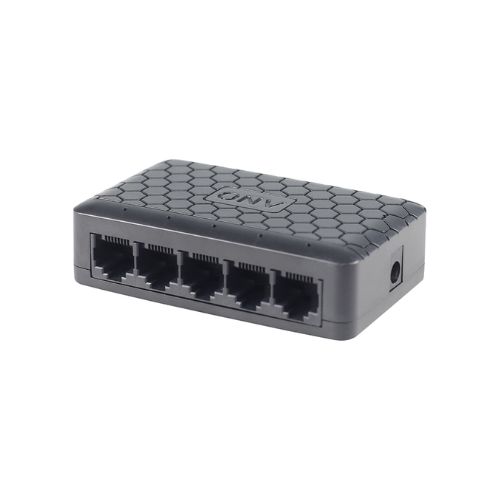

ONV-H3005ES Gigabit 5-port Ethernet switch is a compact and reliable unmanaged network switch designed for high-speed home, office, and CCTV networking environments. With full Gigabit transmission support, this switch provides stable and efficient connectivity for multiple network devices while maintaining smooth data transfer performance.
The switch comes equipped with 5× 10/100/1000Mbps RJ45 Ethernet ports, allowing users to connect devices such as PCs, NVRs, IP cameras, routers, printers, and wireless access points with stable Gigabit speed. Its full Gigabit architecture helps improve large file transfers and reduces video lag or frame loss in HD surveillance systems.
Designed with a plug-and-play unmanaged system, the ONV-H3005ES requires no configuration or technical setup. Users can simply connect their devices, and the switch automatically handles network communication, making it ideal for both beginners and professional installers.
The switch supports non-blocking wire-speed forwarding along with IEEE 802.3x full-duplex flow control, helping maintain smooth and reliable network performance during continuous data transmission.
Its compact desktop-friendly design features a durable flame-retardant plastic body with low power consumption and fanless silent operation. LED indicators on the front panel provide quick status monitoring for power and network activity.
The ONV-H3005ES also supports standard Cat5e and Cat6 Ethernet cables with transmission distances up to 100 meters, making it suitable for office networking, surveillance systems, classrooms, shops, and small business environments.
The latest price of the ONV-H3005ES Gigabit 5-port Ethernet switch in Bangladesh is 1,900 BDT. You can buy the ONV-H3005ES Gigabit 5-port Ethernet switch from us at the best price. You can either buy it through our website or directly visit our office. Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh. Contact Us: +88 01894-683430
