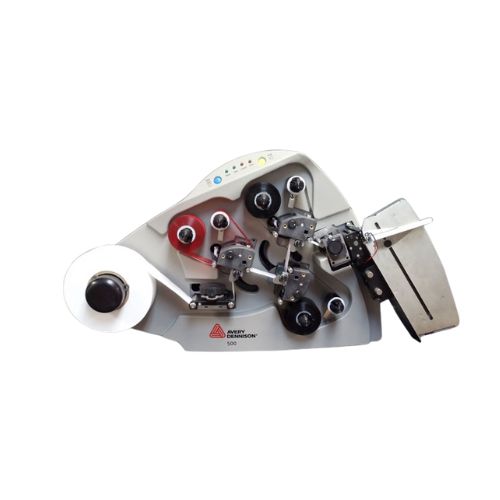

Avery Dennison Snap 500 Barcode Printer

Description

Specification of the Avery Dennison Snap 500 Barcode Printer

Feature	Specification
Standard Equipment	Printer, heads, down stacker, integrated cutter included
Supply Types	Coated, nylon, satin, and heat seal tapes, pressure sensitive, thermal transfer ink ribbons
Printing Method	Thermal Transfer
Printhead Configurations	• Two over one (2/1) • One over one (1/1) • Two over zero (2/0) • One over zero (1/0)
Label Size	• Media width, min – 0.5” (12.7mm) • Media width, max – 2.125” (54mm) • Label length, min w/ rotary knife, GEN2, GEN1 w/ short feed option: 0.750” (19mm) at 3”/sec, 0.775” (20mm) at 4.5”/sec, 0.850” (22mm) at 5”/sec • Label length, min w/ rotary knife, GEN1 standard feed: 1.063” (27mm) at 3”-6”/sec, 1.200” (30.5mm) at 7”/sec • Length, max, no stack – 25” (635mm) • Finished label stacking: Max 2.125” (54mm) x 5” (127mm) with standard down-stacker, Max width-to-length ratio is 1:5
Maximum Print Area	2” x 25” (127mm x 635mm), no stack
Print Speed (305dpi)	3” (76mm), 4.5” (114.3mm), 6” (154.2mm), and 7” (177.8mm)/sec
Print Speed (609dpi)	3” (76mm), 4.5” (114.3mm), 6” (154.2mm)/sec
Printhead	305 DPI (12 dots/mm), 609 DPI (24 dots/mm) option
Bar Codes	UPCA, UPCE, EAN8, EAN13, GS1 subsets, Code 39, Code 128, Code 128EDI, Code 93, Interleaved 2 of 5, Sears Code 39, Datamatrix, QR Code
Standard Fonts	True Type – English, Cyrillic, Asian, Windows® fonts available as download graphic from PCMate, Fonts can be loaded on printer
Sensing Method	Top center fixed reflective, standard, Bottom reflective, optional, Color contrast, optional, Preprinted sensemark, centered, min. size 0.33”x0.125” (8.4mm x 3.2mm) with a min. 0.4” (10mm) white space prior to the mark
Electrical	90-132/180-265 VAC (switch selectable), 50-60Hz 10/6 Amp 1 phase
Operating Conditions	40° to 95°F (5° to 35°C), 5%-90% humidity non condensing
Electrostatic Discharge and Air Quality	Some problems with electronic equipment may occur in environments prone to static discharge or extreme dust conditions. Avery Dennison suggests precautions taken to minimize these conditions.
Physical Dimensions (including stacker)	Height: 18.5” (470mm), Width: 26” (660mm), Depth: 18” (457mm)
Weight	Printer: 54 lbs (24.5 kg), Shipping carton: 70 lbs (31.8kg)
Options and Accessories	Sonic Knife Module, Rewinder
Service Printer Warranty	One (1) year depot warranty

The Best Features of the Avery Dennison Snap 500 Barcode Printer

The Avery Dennison Snap 500 Barcode Printer is a multi-headed care label printer that offers increased productivity and flexibility. It can print, cut, batch, and stack care labels right from your manufacturing facility in a single, high-speed operation.

The SNAP 500 is ideal for a wide range of care label applications, including:

1.Sewn-in information
2.Alternative to sewn-in
3.Tracking high-content care labels

The SNAP 500 also offers a variety of features and benefits, including:

1. Two-sided print capability
2.  Prints on a range of materials
3. Easy-to-use
4. Decreased downtime
5. Pre-installed cold knife and stacker
6. 600 dpi printhead (optional)

In addition to the standard features, the Avery Dennison Snap 500 Barcode Printer also offers a variety of options, including:

SNAP 500 Sonic Knife: The uses ultrasonic vibrations to cut uncoated woven labels.
SNAP 500 LOKPRINT: Its includes an oven that heats a heat-set woven polyester fabric called LOKPRINT tape. Heating the tape causes the dye-sublimation ink to vaporize while the polyester fibers open up to absorb the ink.
SNAP 500 Printhead Resolution: For ultra-high definition printing, the 600 DPI-enhanced printhead resolution provides legible Asian and Eastern characters, fitting more content on a smaller label.

The Avery Dennison Snap 500 Barcode Printer is a versatile and reliable solution for your care label printing needs. It offers a wide range of features and benefits, as well as a variety of options to meet your specific needs.
