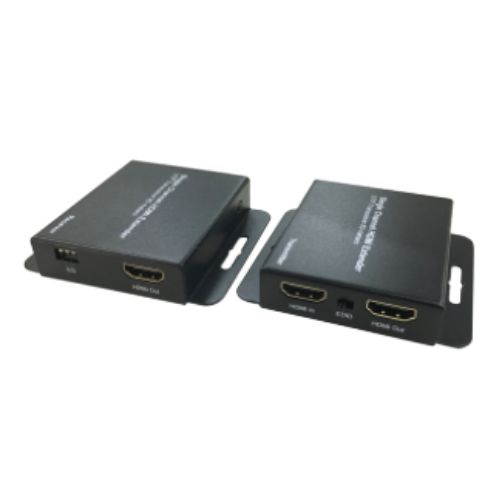

Dahua DH-PFM700-E HDMI Extender
৳ 4,000.00 Original price was: ৳ 4,000.00.৳ 3,500.00Current price is: ৳ 3,500.00.
- Power supply: Input voltage DC5V, only supply for transmitter
- Transmission effect: Real-time transmission HDMI video signal, no delay, strong anti-interference
- Dahua DH-PFM700-E HDMI Extender
- Infrared function: support to transmit one-way infrared remote control signal
- Protection and anti-interference: Excellent anti-thunder, anti-static and anti-interference capabilities
Description
Model | PFM700-E |
Properties | |
Transmission Signal | 1channel HDMI |
Transmission Distance | 50m (max. 164ft), with CAT6 of pure copper cable (DC impedance is less than 9.5 ohms for every 100 meters (328 ft). |
Video Transmission Properties | |
Video Signal Input Interface | HDMI interface |
Video Input Port | HDMI interface |
Twisted-pair Video Transmission Port | RJ45 port |
Input Voltage | DC5V |
Power | TX<3W, RX<3W |
HDCP Version | Support HDCP1.2 |
HDMI Version | Support 1.3 and lower version |
Resolution Output Signal | |
Resolution | 1080P/1080I/720P/576P/576I/480P/480I |
Output Voltage | 0.5~1.5Vp-p |
Impedance | |
END | ±6KV(contact discharge) |
±8KV(air discharge) | |
Per: IEC61000-4-2 1995 (GB/T 17626.5) | |
Anti-thunder | ±2KV (common mode), ±1KV (differential mode) |
Per: IEC61000-4-5 1995 (GB/T 17626.5) | |
Stability | |
MTBF | >5000h |
Physical Properties | |
Dimension(L*W*H) | Transmitter: 79.5mmx68mmx16.5mm (port length included) (3.13”x2.68”x0.65”) Receiver: 79.5mmx68mmx16.5mm(3.13”x2.68”x0.65”) |
Shell | Iron |
Color | Black |
N.W. | Transmitter: 133g(0.29lb) Receiver: 133g(0.29lb) |
Environmental | |
Working Temperature | -10℃~55℃(14℉~131℉) |
Storage Temperature | -20℃~80℃(-4℉~176℉) |
Humidity | 0~95%(non-condensing) |
Certification | |
Certification | CE/FCC |
Dahua DH-PFM700-E HDMI Extender
The Dahua 1-CH HDMI Extender is a dependable and cost-effective way to boost HDMI signals up to 50 meters (164 feet) utilizing a single UTP (CAT-5E or CAT-6) cable. HDMI 1.3, EDID, and one-way infrared remote control signal transfer are all supported. It is also shielded from thunder, static, and interference. It is simple to use and install, as there is no need to install a driver application or configure network specifications.
What is the Price of the Dahua DH-PFM700-E HDMI Extender in Bangladesh?
The latest price of the Dahua DH-PFM700-E HDMI Extender is 3,500 BDT. You can buy the Dahua DH-PFM700-E HDMI Extender from us. To buy this product, you can either buy it through our website or directly visit our office.
Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.
Contact Us: +88 01894-683430
