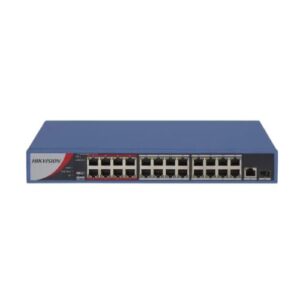

Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch

Original price was: ৳ 22,000.00.Current price is: ৳ 19,800.00.

  • Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
  • Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
  • Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
  • 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
  • 6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
  • Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

Description

Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch

  • Network Parameters
  • Port Number24 × 10/100 Mbps PoE ports, 1 × gigabit RJ45 port, and 1 × gigabit fiber optical port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working ModeStandard mode (default); Extend mode
  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
  • Forwarding ModeStore-and-forward switching
  • Ports For Long-Distance TransmissionPorts 17 to 24
  • MAC Address Table4 K
  • Internal Cache2.75 Mbits Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
  • Switching Capacity8.8 Gbps
  • Packet Forwarding Rate6.547 Mpps
  • High Priority PortsPorts 1 to 8
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPorts 1 to 24
  • Max. Port Power30 W
  • PoE Power Budget230 W Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
  • Dialing Function
  • Long RangePorts 17 to 24: up to 300 m; and the speed rate of the port is 10 Mbps.
  • General
  • Dimension (W × H × D)335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Gross Weight3.33 kg (7.34 lb)
  • Net Weight2.55 kg (5.6 lb)
  • Power Consumption In Idle20 W
  • ShellMetal material
  • Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Operating Humidity5% to 95% (no condensation)
  • Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
  • Max. Power Consumption250 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) Hikvision 16 DS-3E0326P-E-M 24 Port Fast Ethernet POE Switch
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)DS-3E0326P-E-M
