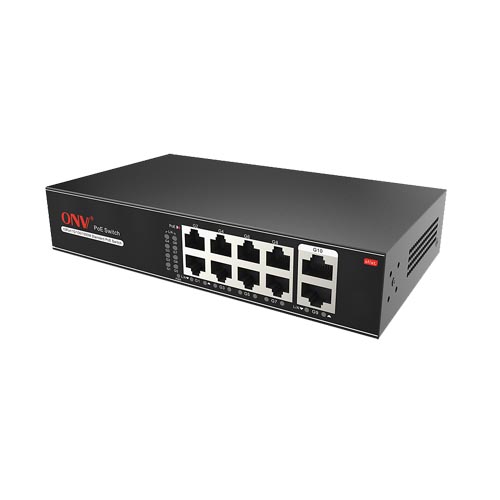

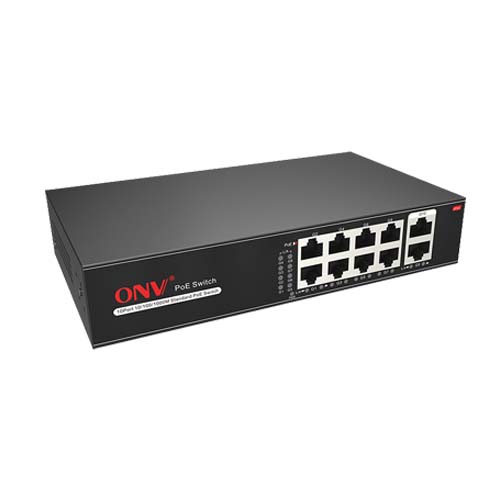

ONV-H3108PS 10-port PoE Switch (Full gigabit)
৳ 7,680.00 Original price was: ৳ 7,680.00.৳ 6,800.00Current price is: ৳ 6,800.00.
Features of the ONV-H3108PS 10-port PoE switch
- Unmanaged PoE switch
- with 8*10/100/1000M PoE ports
- 2*10/100/1000M RJ45 ports.
- Port 1-8 can support the IEEE 802.3af/at PoE standard.
- Built-in 120W power supply.
Description
The ONV-H3108PS is a full gigabit unmanaged PoE switch independently developed by ONV. It has 8*10/100/1000Base-T PoE ports and 2*10/100/1000Base-T uplink RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP phone, video access control intercom, etc. through a network cable to meet the network environment that needs a high-density PoE power supply. It is suitable for hotels, campuses, factory quarters, and small and medium-sized enterprises to form an economy-efficient network.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE
Full gigabit rate, dual RJ45 ports uplink
- Support IEEE 802.3x full-duplex flow control and Backpressure.
- Support non-blocking wire-speed forwarding for smoother transmission.
- Provides Gigabit Ethernet ports and dual RJ45 ports uplink for flexible networking and meets the networking requirements of various scenarios.
Intelligent PoE power supply
- IEEE802.3af/at PoE standard, without damaging non-PoE devices.
- 8*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable, easy to use
- CCC, CE, FCC, RoHS.
- Plug and play, no configuration, simple and convenient.
- Low power consumption, galvanized steel casing, no fan.
- The user-friendly panel can show the device status through the LED indicator of PWR, Link, PoE.
- Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
DIMENSION
ORDERING INFORMATION
Model | Description |
ONV-H3064PS | Unmanaged PoE switch with 4*10/100/1000M PoE ports and 2*10/100/1000M RJ45 ports. Port 1-4 can support IEEE802.3af/at PoE standard. Built-in 65W power supply. |
ONV-H3108PS | Unmanaged PoE switch with 8*10/100/1000M PoE ports and 2*10/100/1000M RJ45 ports. Port 1-8 can support IEEE802.3af/at PoE standard. Built-in 120W power supply. |
PACKING LIST
Packing List | CONTENT | QTY | UNIT |
10-port full gigabit PoE switch | 1 | SET | |
AC Power Line | 1 | PC | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |
TECHNICAL SPECIFICATION
Model | ONV-H3064PS | ONV-H3108PS |
Interface Characteristics | ||
Fixed Port | 4*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
8*10/100/1000Base-T PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data) |
Ethernet Port | Port 1-6/ Port 1-10 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption | |
Twisted Pair Transmission | 10BASE-T: Cat3, 4, 5 UTP(≤100 meters)
100BASE-TX: Cat5 or later UTP(≤100 meters) 1000BASE-T: Cat5e or later UTP(≤100 meters) |
|
Chip Parameter | ||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x |
|
Forwarding Mode | Store and Forward(Full Wire Speed) | |
Switching Capacity | 16Gbps (Non-blocking) | 20Gbps (Non-blocking) |
Forwarding
Rate@64byte |
8.93Mpps | 14.88Mpps |
MAC | 8K | 2K |
Buffer Memory | 2M | |
Jumbo Frame | 9.2k | |
LED Indicator | Power: PWR (Green), Network: Link (Green), PoE: PoE (Green) | |
PoE & Power Supply | ||
PoE Port | Port 1 to 4 | Port 1 to 8 |
Power Supply Pin | 1/2(+) 3/6(-) | |
Max Power Per Port | 30W, IEEE802.3af/at | |
Total PWR / Input Voltage | 65W/ (AC100-240V) | 120W/ (AC100-240V) |
Power Consumption | Standby <5W, Full load <65W | Standby <6W, Full load <120W |
Power Supply | Built-in power supply, AC100~240V 50-60Hz 1.1A | Built-in power supply, AC100~240V 50-60Hz 2.2A |
Physical Parameter | ||
Operation TEMP / Humidity | -20~+55°C, 5%~90% RH Non condensing | |
Storage TEMP / Humidity | -40~+75°C, 5%~95% RH Non condensing | |
Dimension (L*W*H) | 140*115*40mm | 195*130*40mm |
Net /Gross Weight | <0.6kg / <1.0kg | <0.9kg / <1.2kg |
Installation | Desktop, Wall-mounted | |
Certification & Warranty | ||
Lightning Protection | Lightning protection: 4KV 8/20us, Protection level: IP30 | |
Certification | CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS | |
Warranty | 1 year, lifelong maintenance. |
ONV-H3108PS 10-port PoE switch (Full Gigabit)
The product ONV-H3108PS 10-port PoE switch Provides Twisted Pair Transmission of 10 base-T: Cat3, 4, 5 UTP(≤100 meters)/100 base-TX: Cat5 or later UTP(≤100 ≤100 meters), and 1000 base-T: Cat5e or later UTP(≤100 meters). Visit for more.
What is the price of the ONV-H3108PS 10-Port PoE switch in Bangladesh?
The latest price of the ONV-H3108PS 10-port PoE switch in Bangladesh is 6800 BDT. You can buy the ONV-H3108PS 10-port PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.
Our Head Office Address: 360, Star House, Shahid Jahanara Imam Sarani, Elephant Road, Dhaka, 1205, Bangladesh.
Contact: 01821-051012
