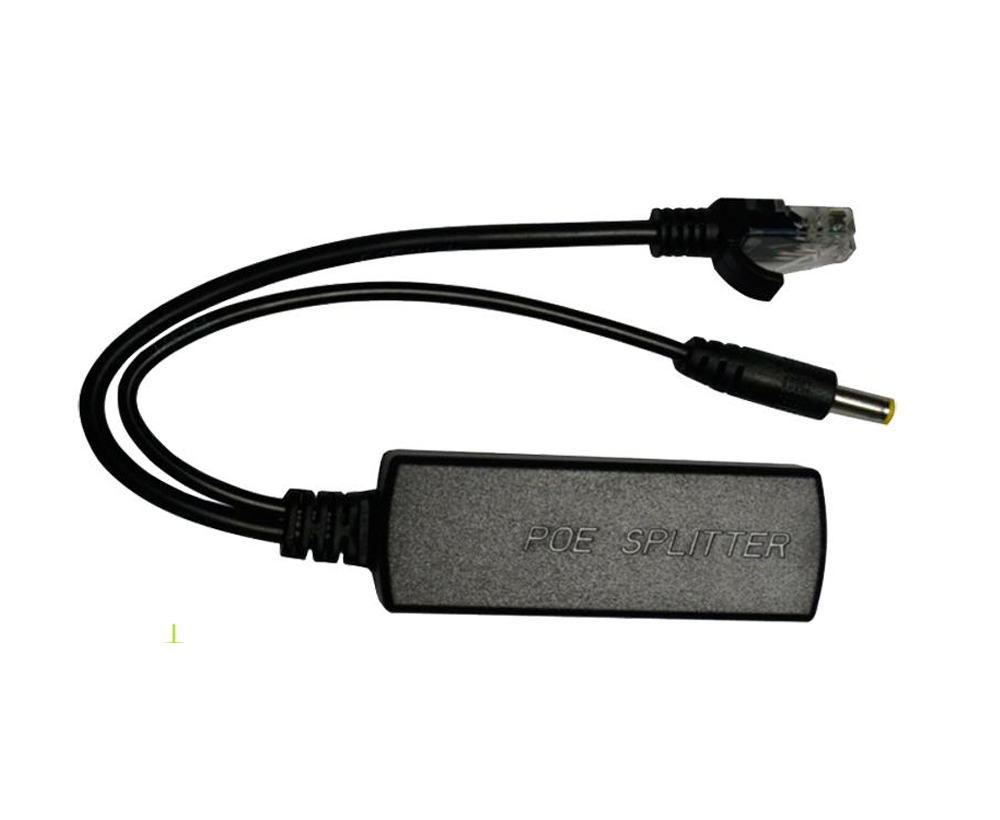

ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable
৳ 0.00
- ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable
- 10/100M isolated PD PoE splitter cable
- support IEEE802.3af/at PoE standard
- Input voltage: 44-57VDC.
- Call for Price (Contact: 01894-683430)
Description
Power your devices with ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable !
| Specification | ONV-PD5202-at |
|---|---|
| Model | ONV-PD5202-at |
| Interface Characteristics | Fixed Port |
| Fixed Port | 110/100Base-TX RJ45 port (Data),
18P male output port (Data), 1*DC5521 power port (Power) |
| Ethernet Port | Ethernet port can support 10/100Base-TX
auto-sensing, full/half duplex MDI/MDI-X self-adaption |
| Transmission Bandwidth (Rate) | 10/100Mbps |
| Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter),
100BASE-TX: Cat5 or later UTP(≤100 meter) |
| LED Indicator | Working indicator: POE (Yellow) |
| PoE & Power Supply | PoE Port (PD) |
| Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T,
IEEE802.3u 100Base-TX, IEEE802.3x |
| Power Supply Pin | 1/2 (+), 3/6 (-)& 4/5 (+), 7/8 (-) |
| Input Voltage | 44-57VDC |
| Output Voltage | Default 12VDC± 0.5V, optional 5V
,9V,24VDC, Default DC5521 plug, optional Micro USB power plug |
| Power Consumption | Standby<1W, Full Load<24W |
| Conversion Efficiency (Output: Input) | ≥82% |
| Operation TEMP / Humidity | -20~+55°C, 5%~90%
RH Non condensing |
| Storage TEMP / Humidity | -40~+85°C, 5%~95%
RH Non condensing |
| Dimension (LWH) | 853126mm, cable
length:≤150mm |
| Net /Gross Weight | <0.1kg /<0.15kg |
| Lightning Protection | Lightning protection: 4KV 8/20us,
Protection level: IP40 |
| Warranty | 1 year, lifelong maintenance. |
ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable
The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable allows you to power and connect non-PoE devices over a single Ethernet cable. It is compatible with IEEE802.3af/at PoE standards and can provide up to 13W of power to your device.
The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable is easy to use and install. Simply connect the PoE splitter to your PoE switch or injector using the Ethernet cable included in the package. Then, connect your non-PoE device to the PoE splitter using the 8P male output port. The ONV PD5202-at will automatically detect and power your device.
FEATURE
10/100Mbps fast Ethernet
◇ Support IEEE802.3af/at standard, Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )
◇ Output voltage:12VDC(Default), 5~24VDC can be customized, with low ripple.
◇ Input voltage 44-57VDC, rated output power 12W, greater than 82% efficiency
◇ Support short circuit, over current and over temperature protection
◇ 1500V high voltage isolation (input stage to output stage) (only applicable to ONV-PD5202, ONV-PD5202-at)
◇ DC interface has dustproof and waterproof measures
The ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable is ideal for use in a variety of applications, such as:
- Powering IP cameras
- Powering wireless access points
- Powering VoIP phones
- Powering other non-PoE devices
Here are some of the benefits of using the ONV PD5202-at:
- Easy to install and use
- Supports both IEEE 802.3af and IEEE 802.3at PoE standards
- Provides up to 13W of power to the non-PoE device
- Has a number of safety features
- Affordable
What is Benefits ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable ?
- Flexibility: PoE splitter cables allow you to power non-PoE devices using a PoE switch. This is useful if you need to power devices in locations where there is no access to an AC power outlet, or if you want to reduce cable clutter.
- Cost savings: PoE splitter cables can help you save money on installation and maintenance costs. By eliminating the need to run separate power cables to your devices, you can reduce the time and expense of installation. Additionally, PoE splitter cables can help to extend the life of your devices by reducing the wear and tear on power cables.
- Reliability: PoE splitter cables are designed to be reliable and durable. They are typically made with high-quality materials and construction, and they are backed by warranties from reputable manufacturers.
What is the price of the ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable in Bangladesh?
The latest price of the ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable Call for Price (Contact: 01894-683430) BDT.
You can buy this ONV PD5202-at 10 to 100 Mbps PD PoE Splitter Cable from us at the best price. Or You can buy it through our website or directly visit our office.
Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.
Contact Us: +88 01894-683430
