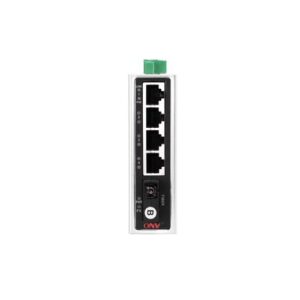

ONV-IPS1004PF 10/100M 5-port industrial PoE switch

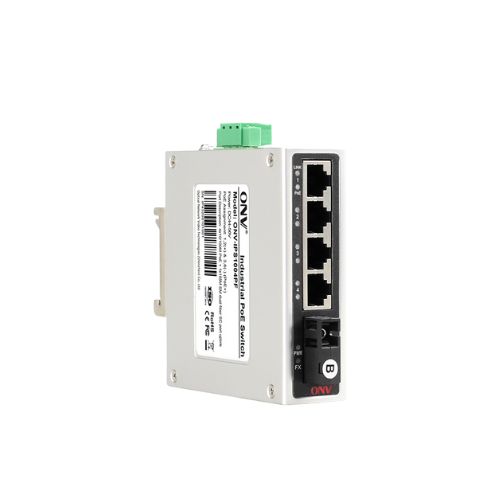

10/100M 5-port industrial PoE switch - Image 2

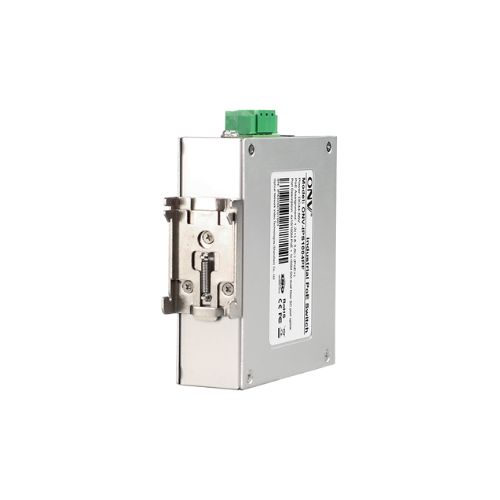

10/100M 5-port industrial PoE switch - Image 3
10/100M 5-port industrial PoE switch - Image 4
  1. ONV-IPS1004PF 10/100M 5-port industrial PoE switch
  2. 10/100M 5-port industrial PoE switch - Image 2
  3. 10/100M 5-port industrial PoE switch - Image 3
  4. 10/100M 5-port industrial PoE switch - Image 4

10/100M 5-port industrial PoE switch

Features of the 10/100M 5-port industrial PoE switch

(Call for Price +88 018-94683430)

  • 4× PoE+ Ports (30W each) – Powers IP cameras, APs, and VoIP phones.
  • 1× 10/100M Uplink Port – Ensures stable network transmission.
  • Industrial-Grade Build – IP40-rated metal housing with DIN rail mounting.
  • 6KV Lightning Protection – Shields against power surges.
  • Wide Temperature Range – Operates from -40°C to +75°C.

Description

Specification of the 10/100M 5-port industrial PoE switch

Model
ONV-IPS1004PF | ONV-IPS1004PF-A | ONV-IPS1004PF-B
Interface Characteristics
Fixed Port
1*155M uplink SC fiber port (Data)
4*10/100Base-T PoE ports (Data /Power)
Ethernet Port
Port 1-4 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5e or later UTP (≤100 meters)
Optical Fiber Port
Default optical module is single-mode dual fiber 20km, SC port
Optical Cable/ Distance
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode
Store and Forward (Full Wire Speed)
Switching Capacity
1.6Gbps (non-blocking)
Forwarding Rate@64byte 0.744Mpps
MAC 1K
Buffer Memory 512K
Jumbo Frame 2048bytes
LED Indicator
Power: PWR (Green), Network: Link (Green), PoE:PoE(Green), Fiber port: FX (Green)
PoE & Power Supply
PoE Port Port 1-4
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port
30W, IEEE 802.3 af/at
Power Consumption
Standby<3W, Full Load af<60W, at<120W
Working Voltage
DC44-56V, 3P industrial terminal and DC jack, support anti-reverse protection.
Power Supply
No, optional 48V/60W and 48V/120W industrial power supply
Physical Parameter
Operation Temp/ Humidity
-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity
-40~+85°C, 5%~95% RH Non condensing
Dimension (L*W*H) 98*88*30mm
Net /Gross Weight
0.25kg/ 0.35kg
Installation
Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection
Protection level: IP30
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty
5 years, lifelong maintenance.

ONV-IPS1004PF 10/100M 5-port industrial PoE switch

 10/100M 5-port industrial PoE switch

The ONV-IPS1004PF 10/100M 5-port industrial PoE switch is a tough industrial PoE switch made for reliable and effective networking in difficult settings. It supplies data and power to connected devices, including VoIP phones, wireless access points, and IP cameras, thanks to its four 10/100M PoE+ ports. It also has a single 10/100M uplink connection, which guarantees efficient data transfer to the main network. This switch is perfect for several PoE-powered devices because it supports IEEE 802.3af/at PoE+ standards and can offer up to 30W per port with a total power budget of 60W. It guarantees dependable performance and low latency with a switching capability of 1 Gbps and store-and-forward transmission. With its sturdy IP40-rated metal housing and 6KV lightning protection, the ONV-IPS1004PF is designed for industrial use and can function effectively in temperatures ranging from -40°C to +75°C. Redundancy is provided by the twin DC 48-55V power input, guaranteeing continuous operations even in power-sensitive settings.





Overall, the ONV-IPS1004PF 10/100M 5-port industrial PoE switch is a high-performance PoE switch that guarantees reliable and effective network connectivity in harsh settings, making it perfect for remote networking, industrial automation, and outdoor surveillance.



What is the price of the 10/100M 5-port industrial PoE switch in Bangladesh?

The latest price of the 10/100M 5-port industrial PoE switch is (Call for Price +88 018-94683430). You can buy the 10/100M 5-port industrial PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.
