10/100M 5-port industrial Ethernet switch

Features of the ONV-IPS31004F 10/100M 5-port industrial Ethernet switch

(Call for Price +88 018-94683430)

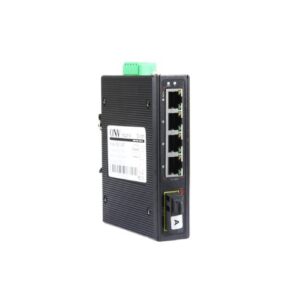

Ports: 4× 10/100M RJ45 + 1× fiber port
Design: IP30 aluminum, fanless
Power: Dual 12–48V DC input

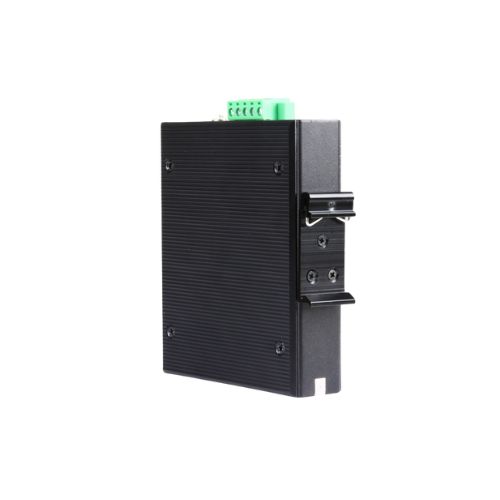

Mounting: DIN rail
Use: Industrial, harsh environments

Description
Reviews (0)

Description

Specification of the 10/100M 5-port industrial Ethernet switch

Model

ONV-IPS31004F

ONV-IPS31004F-M

ONV-IPS31004F-A

ONV-IPS31004F-B

Interface Characteristics
Fixed Port	1155M uplink SC fiber port (Data) 410/100Base-TX RJ45 ports (Data /Power) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal)
Ethernet Port	Port 1-4 can support 10/100Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Default optical module is single-mode dual fiber 20km, SC port (optional single-mode single fiber and multi-mode dual fiber optical module)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, 1310nm /0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.6Gbps (non-blocking)
Forwarding Rate @64byte	0.744Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frames	9.2K
LED Indicator	Power: PWR(Green), Network: Link (Yellow), Fiber port: L/A (Green)
Power Supply
Power Consumption	Standby<3W, Full load<6W
Power Supply	No, optional 24V/24W industrial power supply
Working Voltage	DC12-48V, 5P industrial Phoenix terminal, support anti-reverse protection.
Physical Parameter
Operation TEMP / Humidity	-40~+80°C, 5%~90% RH Non-condensing
Storage TEMP / Humidity	-40~+85°C, 5%~95% RH Non-condensing
Dimension	11910030mm
Net /Gross Weight	0.4kg /0.5kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS31004F 10/100M 5-port industrial Ethernet switch

The ONV-IPS31004F 10/100M 5-port industrial Ethernet switch is a 5-port, high-performance industrial Ethernet switch made to provide reliable, secure, and long-distance data transfer in challenging industrial settings. It is the best option for small to medium-sized industrial networks that need excellent dependability and simple implementation because it has four RJ45 Ethernet ports and one SC fiber uplink interface. The ONV-IPS31004F, which is intended for use in industrial environments, operates reliably even under harsh circumstances. It has kV lightning protection for all ports and power inputs, can withstand dust and shock, and has a wide operating temperature range of -40°C to +75°C. This guarantees continuous functioning in areas such as energy facilities, outdoor enclosures, and production floors.

With built-in reverse polarity protection, the ONV-IPS31004F accepts DC 12~48V wide-range power input through a secure Phoenix terminal block. The switch’s fanless design and low power footprint ensure dependable communication while using the least amount of energy possible. This switch provides a hassle-free experience whether you’re establishing a new configuration or growing your network. You can power it up and connect devices immediately, thanks to its plug-and-play feature, which eliminates the need for complex settings. You have freedom for various installation options thanks to its small metal enclosure, which also enables wall mounting and DIN rail.

Overall, the ONV-IPS31004F 10/100M 5-port industrial Ethernet switch is a strong and useful option if you require a small, robust, and high-performing Ethernet switch to maintain the smooth operation of your industrial network. It provides reliable connectivity, whether you’re enabling remote monitoring, automation, or surveillance.
