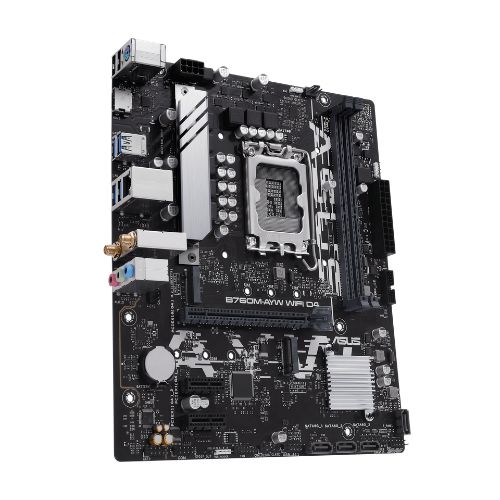

ASUS B760M-AYW WIFI D4 mATX Motherboard

Original price was: ৳ 19,360.00.Current price is: ৳ 18,900.00.

Features of the ASUS B760M-AYW WIFI D4 mATX Motherboard

Model: B760M-AYW WIFI D4
Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
Supported RAM: 2 x DIMM, Max. 64GB, DDR4
Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
Features: Realtek 2.5Gb Ethernet, Wi-Fi 6, PCIe 4.0 x16 slot

Description
Reviews (0)

Description

Specification of the ASUS B760M-AYW WIFI D4 mATX Motherboard

Brand / Model	ASUS B760M‑AYW WIFI D4
Form Factor	micro‑ATX (24.4 × 21.1 cm)
Socket / Chipset	LGA 1700, Intel B760 – supports 12/13/14th Gen Core, Pentium, Celeron
Memory	2 × DDR4 DIMM, up to 64 GB; DDR4‑5333 (OC)/4800/…/2133; dual‑channel, XMP support
Graphics Outputs	1 × HDMI 2.1 (4K@60 Hz)
PCIe Expansion	1 × PCIe 4.0 ×16; 2 × PCIe 4.0 ×1
Storage	2 × M.2 Key M PCIe 4.0 ×4 (2242–2280); 4 × SATA 6 Gb/s with RAID 0/1/5/10
Networking	Realtek 2.5 Gb LAN (LANGuard); Wi‑Fi 6 (802.11ax); Bluetooth v5.2
Rear USB Ports	4 × USB 3.2 Gen 1, 2 × USB 2.0
Internal USB Headers	1 × USB 3.2 Gen 1 header; 1 × USB 2.0 header
Audio	Realtek 7.1‑ch HD Audio codec (24‑bit/192 kHz), with shielding & premium caps
I/O Connectors	1 × CPU fan, 1 × chassis fan; Intel® H610 specifics; COM header; Clear CMOS; TPM SPI; AAFP; S/PDIF‑out; speaker; system panel
Protection & Build	5X Protection III: DIGI+ VRM, LANGuard, over‑voltage protection, SafeSlot Core+, stainless‑steel I/O; M.2/PCH heatsinks
Special Features	Q‑Design (Q‑DIMM, Q‑LED Core, Q‑Slot); Armoury Crate with Fan Xpert; ASUS AI Suite; Aura Sync; CrashFree BIOS 3; EZ Flash 3
BIOS	128 Mb UEFI AMI BIOS; WOL by PME; PXE boot support

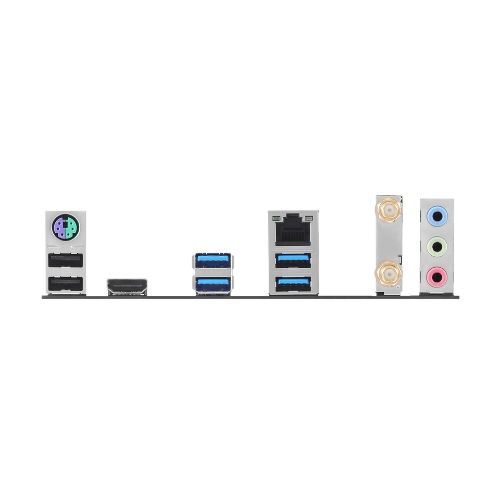

Rear I/O	PS/2 combo, HDMI, Wi‑Fi antenna connectors, 2.5 Gb LAN, 3 × audio jacks, 4 × USB 3.2, 2 × USB 2.0

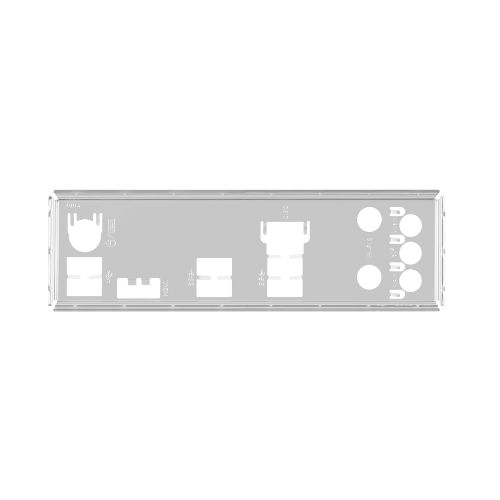

Accessories	2 × SATA cables, I/O shield, Wi‑Fi antenna, M.2 screws, user manual
Warranty	3-year

ASUS B760M-AYW WIFI D4 mATX Motherboard

The ASUS B760M-AYW WIFI D4 mATX Motherboard is a high-performance Micro-ATX motherboard made for power, efficiency, and wireless freedom. Its purpose is to enable next-generation computing in small and adaptable packages. For gamers, video producers, and productivity-focused users seeking reliable performance with integrated wireless functionality, this board is perfect. It supports Intel’s 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron CPUs via the LGA1700 socket.

Under the hood, the Intel B760 chipset powers efficient and responsive system behavior, supporting fast processing and multitasking. This board is tuned for real-world computing with a solid mix of performance features and practical expandability—all housed in a small and manageable mATX form factor.

The B760M-AYW WIFI D4 embraces the widely available DDR4 memory standard, offering great performance at a more budget-friendly price point compared to DDR5. With two DIMM slots, the board supports up to 64GB of DDR4 RAM, with speeds up to 5333 MHz (OC)—plenty of headroom for demanding multitasking, gaming, or creative work.

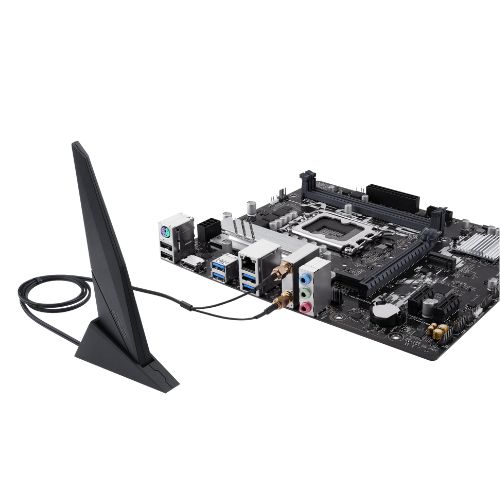

One of its standout features is its integrated Wi-Fi, providing seamless wireless connectivity right out of the box. This allows for easy internet access without the need for additional adapters, making the board perfect for clean, cable-free setups or builds in locations where wired networking isn’t practical. Paired with Realtek Gigabit Ethernet, it also ensures stable and high-speed wired networking when needed.

On the storage front, the motherboard includes a PCIe 4.0 x4 M.2 slot, enabling super-fast NVMe SSD performance for blazing-quick boot times and software loading. You also get four SATA 6Gb/s ports for traditional hard drives or SSDs—great for those who need a mix of speed and high-capacity storage.

Expansion options include a PCIe 4.0 x16 slot for a dedicated graphics card and a PCIe 3.0 x1 slot for other add-ons like capture cards, sound cards, or extra connectivity options. Despite the compact design, it doesn’t limit your ability to customize your build.

For visuals, it includes HDMI and VGA (D-Sub) ports, supporting modern and legacy display devices. Whether you’re building a workstation or media center, dual display output ensures flexibility for multitasking or presentations.

The board is built to last with ASUS 5X Protection III, incorporating essential hardware safeguards like SafeSlot Core, surge protection, and premium capacitors, giving you peace of mind during long hours of operation.

With a sleek black PCB design and a compact layout, the B760M-AYW WIFI D4 is a great match for modern minimalist cases. Its support for ASUS’s intuitive UEFI BIOS makes it easy to configure your system, whether you’re a seasoned builder or a first-time PC user.

Overall, the ASUS B760M-AYW WIFI D4 mATX Motherboard provides the ideal balance of modern features and vital performance, making it ideal for those looking for a small, capable PC that doesn’t sacrifice connectivity, stability, or expandability. It is also prepared to meet the demands of today’s connected lifestyle.

What is the price of the ASUS B760M-AYW WIFI D4 mATX Motherboard in Bangladesh?

The latest price of the ASUS B760M-AYW WIFI D4 mATX Motherboard in Bangladesh is 18,900 BDT. You can buy the ASUS B760M-AYW WIFI D4 mATX Motherboard from us at the best price. You can either purchase it through our website or directly visit our office.
