ASUS B760M-AYW WIFI mATX Motherboard
৳ 19,300.00 Original price was: ৳ 19,300.00.৳ 18,900.00Current price is: ৳ 18,900.00.
Features of the ASUS B760M-AYW WIFI mATX Motherboard
- Model: B760M-AYW WIFI
- Supported CPU: 14th Gen, 13th Gen & 12th Gen Processors (LGA1700)
- Supported RAM: 2 x DIMM, Max. 96GB, DDR5
- Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
- Features: Realtek 2.5Gb Ethernet, Wi-Fi 6
Description
Specification of the ASUS B760M-AYW WIFI mATX Motherboard
Brand / Model |
ASUS B760M‑AYW WIFI
|
Form Factor |
micro‑ATX (24.4 × 21.1 cm)
|
CPU Socket / Chipset |
LGA 1700 / Intel B760 – supports 12th–14th Gen Core, Pentium, Celeron
|
Memory |
2× DDR5 DIMM, up to 96 GB; up to DDR5‑8000 (OC), XMP support
|
Graphics Output |
1× HDMI 2.1 (4K@60 Hz)
|
Expansion Slots |
1× PCIe 4.0 ×16; 2× PCIe 4.0 ×1
|
Storage |
2× M.2 Key M (PCIe 4.0 ×4); 4× SATA 6 Gb/s, RAID 0/1/5/10
|
Ethernet & Wi‑Fi |
Realtek 2.5 Gb LAN with ASUS LANGuard; Wi‑Fi 6 (802.11ax) & Bluetooth 5.3
|
Audio |
Realtek 7.1 HD Audio codec, 24‑bit/192 kHz, shielded with premium caps
|
Rear USB Ports |
4× USB 3.2 Gen 1 (5 Gbps); 2× USB 2.0
|
Front USB Headers |
1× USB 3.2 Gen 1; 1× USB 2.0
|
Cooling & Fan Headers |
VRM, M.2 & PCH heatsinks; hybrid fan headers; Fan Xpert 2+ support
|
RGB Support |
Addressable Gen 2 RGB headers, Aura Sync
|
Protection Features |
ASUS 5X Protection III (DIGI+ VRM, LANGuard, over-voltage protection, SafeSlot Core+, stainless I/O)
|
BIOS |
128 Mb UEFI AMI with CrashFree BIOS 3, EZ Flash 3; WOL & PXE support
|
Wireless Antenna Notes |
Some users report antenna not recognized – internal M.2 WiFi card may need reseating; see Reddit
|
Warranty | 3 years |
ASUS B760M-AYW WIFI mATX Motherboard

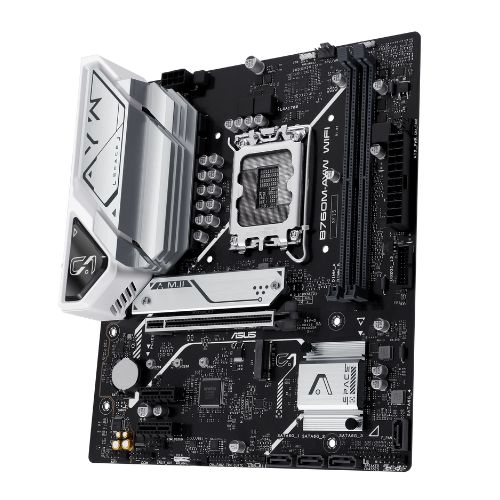

The ASUS B760M-AYW WIFI is a feature-rich Micro-ATX motherboard designed to deliver next-generation performance, compact form factor efficiency, and wireless freedom—all at an accessible price point. Built around the Intel B760 chipset, this board supports 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors through the LGA1700 socket, making it ideal for gamers, content creators, and everyday users looking for future-ready reliability.
Despite its compact size, this motherboard is fully loaded with essential features to power modern computing. It supports up to 64GB of DDR4 memory through two DIMM slots, with speeds reaching up to 5333 MHz (OC). This provides excellent performance for multitasking, productivity, light gaming, and content editing, all while keeping memory costs lower thanks to DDR4 compatibility.
Connectivity is a major strength of the B760M-AYW WIFI. It features built-in Wi-Fi, allowing users to connect to high-speed wireless networks without the need for an external adapter. Whether you’re setting up in a clutter-free workspace or using a compact PC case without easy access to Ethernet, this onboard Wi-Fi ensures smooth streaming, fast downloads, and stable online gaming. Additionally, Realtek Gigabit LAN is included for those who prefer the speed and stability of wired networking.
Storage is fast and flexible with support for a PCIe 4.0 x4 M.2 slot, perfect for installing NVMe SSDs that offer ultra-fast boot times and data access. It also features four SATA 6Gb/s ports for traditional storage drives, giving users ample space for games, media, and work files.
In terms of expansion, the motherboard includes a PCIe 4.0 x16 slot for a dedicated graphics card and a PCIe 3.0 x1 slot for additional components like capture cards, network adapters, or sound cards, making it highly adaptable to your build’s needs.

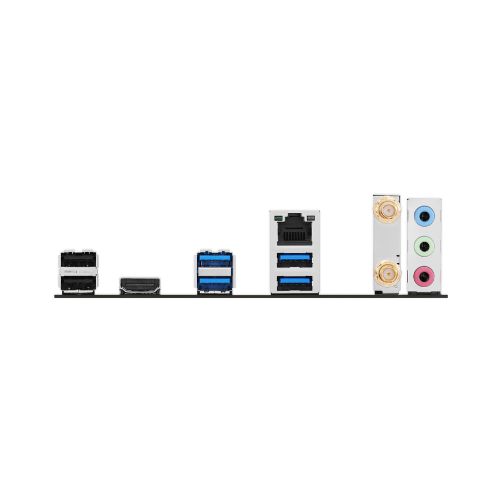

On the rear I/O, the board offers a balanced mix of modern and legacy ports. You’ll find HDMI, VGA (D-Sub), multiple USB 3.2 Gen 1 and USB 2.0 ports, and audio jacks, ensuring wide compatibility with displays, peripherals, and accessories. This blend makes it ideal for both current and older hardware environments.
Durability is built into every aspect of the B760M-AYW WIFI. It comes with ASUS 5X Protection III, including high-quality components, SafeSlot Core reinforcement, overvoltage protection, and stainless steel I/O shielding—ensuring long-lasting performance and protection against power fluctuations and wear.
Designed with both function and style in mind, this board has a clean black PCB and a simple, modern aesthetic that fits well in any system build, be it a compact gaming rig or a sleek home PC.
If you’re looking for a compact, affordable, and wireless-ready Intel motherboard with all the essentials, the ASUS B760M-AYW WIFI mATX Motherboard offers the perfect combination of connectivity, expandability, and performance for any modern build.
What is the price of the ASUS B760M-AYW WIFI mATX Motherboard in Bangladesh?
The latest price of the ASUS B760M-AYW WIFI mATX Motherboard in Bangladesh is 18,900 BDT. You can buy the ASUS B760M-AYW WIFI mATX Motherboard from us at the best price. You can either purchase it through our website or directly visit our office.
Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.
Contact Us: +88 01894-683430
