Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard
Asus PRIME B760M-F mATX Motherboard - Image 5

Asus PRIME B760M-F mATX Motherboard

Original price was: ৳ 15,120.00.Current price is: ৳ 14,600.00.

Features of the Asus PRIME B760M-F mATX Motherboard

  • Model: PRIME B760M-F
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 2 x DIMM, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI
  • Features: 1 x Realtek 1Gb Ethernet

Description

Specification of the Asus PRIME B760M-F mATX Motherboard

Brand
ASUS
Model
PRIME B760M‑F
Form Factor
micro‑ATX (24.4 × 21.1 cm)
Socket / Chipset
LGA 1700 / Intel B760, supports 12th–14th Gen Intel Core, Pentium, Celeron
Memory
2 × DDR5 DIMM, up to 96 GB; up to 8000 MT/s (OC); dual‑channel; XMP supported
Graphics Output
1 × HDMI (supports 4K@30 Hz)
Expansion Slots
1 × PCIe 4.0 x16, 1 × PCIe 4.0 x1
Storage
2 × M.2 Key‑M slots (up to 2280, PCIe 4.0 x4); 4 × SATA 6 Gb/s ports (RAID 0/1/5/10)
Networking
Realtek 1 Gb Ethernet with ASUS LANGuard

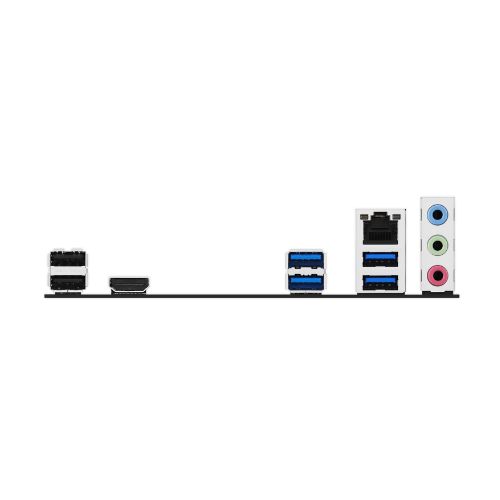

Rear USB Ports
4 × USB 3.2 Gen 1 Type‑A (5 Gbps); 2 × USB 2.0 Type‑A
Front USB Headers
1 × USB 3.2 Gen 1 header (2 ports); 2 × USB 2.0 headers (3 ports)
Audio Codec
Realtek 7.1 High‑Definition Audio (24‑bit/192 kHz) with shielding, premium caps, dedicated PCB layers
Chipset Cooling & Fans
PCH heatsink, 1 × CPU fan header, 2 × chassis fan headers, Fan Xpert 2+
Internal Headers & Connectors
24‑pin main power; 8‑pin CPU power; Clear CMOS; COM; Front audio; S/PDIF‑out; Speaker; TPM; System panel; 2 × ARGB Gen2 headers
Protection & Build
ASUS 5X Protection III: DIGI+ VRM, LANGuard, over‑voltage, SafeSlot Core, stainless rear I/O; Q‑DIMM, Q‑LED Core, Q‑Slot; aluminum heatsink; Aura Sync RGB
Software Features
Armoury Crate (Aura, Fan Xpert, AI noise cancel), AI Suite 3, PC Cleaner; UEFI BIOS with CrashFree and EZ Flash 3
BIOS
128 Mb UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 10 / 11 64‑bit
Warranty 3 years

Asus PRIME B760M-F mATX Motherboard

Asus PRIME B760M-F mATX Motherboard

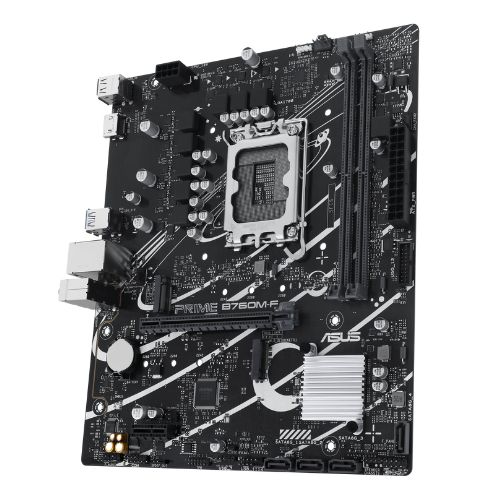

The ASUS PRIME B760M-F is a versatile and feature-rich Micro-ATX motherboard, designed to bring modern performance and reliable stability to your desktop build. Built on the Intel B760 chipset, this board supports 12th, 13th, and 14th Gen Intel Core processors via the LGA1700 socket, offering dependable processing power for gaming, content creation, or everyday productivity.

🔧 Power & Performance

  • Equipped with a robust 8+1+1-phase VRM and premium components to ensure consistent power delivery and thermal control, even during long gaming sessions or multitasking demands.

  • Supports dual-channel DDR5 memory up to 7200+ MHz (OC) and capacities up to 96 GB, delivering quicker load times and smoother multitasking performance.

💾 Storage & Expansion

  • Includes a PCIe Gen4 x16 slot, ready for powerful graphics cards and high-throughput computing.

  • Comes with dual M.2 slots (one PCIe Gen4 x4, one PCIe Gen3 x4)—perfect for fast NVMe SSDs—and four SATA 6 Gb/s ports for HDDs or SATA SSDs.

📶 Connectivity

  • Features 2.5 Gb Ethernet for low-latency wired networking, along with a comprehensive rear I/O that includes HDMI 2.1, DisplayPort 1.4, and multiple USB 3.2 Gen1/Gen2 ports for versatile display and peripheral support.

  • Internal headers allow easy cable management and accommodate additional USB and cooling system needs.

🎛️ Cooling & Customization

  • Offers comprehensive cooling options with multiple fan headers and AI Cooling II, which intelligently adjusts fan speeds based on workload to maintain optimal temperatures.

  • Supports Aura Sync RGB, enabling synchronized lighting effects across compatible components for a stylish, cohesive build aesthetic.

🛡️ Reliability & Protection

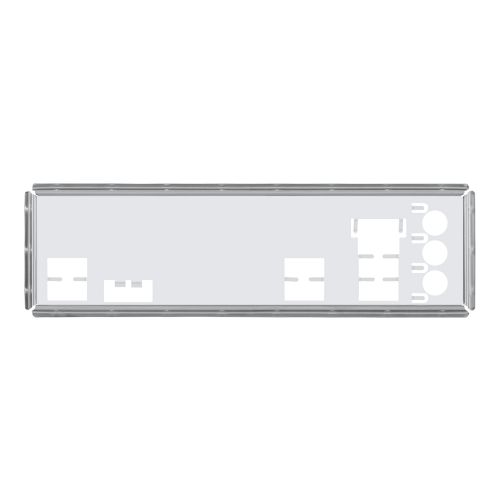

  • Built for longevity with 5X Protection III, featuring safeguards such as SafeSlot Core, overcurrent protection, DRAM overvoltage protection, and stainless-steel rear I/O shield.

  • BIOS FlashBack and EZ BIOS updater tools make firmware updates easy and secure, even without a CPU installed.

Designed for users who want a compact yet capable board, the ASUS PRIME B760M-F balances performance, modern features, and build-quality in a sleek Micro-ATX design. Whether you’re building a mainstream gaming PC, a home productivity machine, or a stylish compact system, this board delivers flexibility, durability, and future-ready potential.

What is the price of the Asus PRIME B760M-F mATX Motherboard in Bangladesh?

The latest price of the Asus PRIME B760M-F mATX Motherboard in Bangladesh is 14,600 BDT. You can buy the Asus PRIME B760M-F mATX Motherboard from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.

Contact Us: +88 01894-683430
