ASUS Pro B660M-C D4-CSM mATX Motherboard

ASUS Pro B660M-C D4-CSM mATX Motherboard

Original price was: ৳ 16,630.00.Current price is: ৳ 16,200.00.

Features of the ASUS Pro B660M-C D4-CSM mATX Motherboard

Model: Pro B660M-C D4-CSM
Supported CPU: 14th, 13th & 12th Gen Core, Pentium Gold & Celeron (LGA1700)
Supported RAM: 4x DDR4, Max 128GB
Graphics Output: 2 x DisplayPort, 1 x D-Sub, 1 x HDMI
Features: 1 x Intel 1Gb Ethernet

Description
Reviews (0)

Description

Specification of the ASUS Pro B660M-C D4-CSM mATX Motherboard

Brand	ASUS
Model	Pro B660M‑C D4‑CSM
Form Factor	micro‑ATX (24.4 × 24.4 cm)
Socket / Chipset	LGA 1700 / Intel B660; supports 12th–14th Gen Intel Core, Pentium Gold & Celeron; Turbo Boost 2.0, Turbo Boost Max 3.0
Power Design	DIGI+ VRM – 8-phase design
Memory	4 × DDR4 DIMM, up to 128 GB; supports DDR4‑5000(OC)/4800/…/2133; Dual-channel, XMP, OptiMem
Graphics Outputs	2 × DisplayPort 1.4 (4K@60 Hz), 1 × HDMI 2.1 (4K@60 Hz), 1 × VGA (D-Sub)
Expansion Slots	1 × PCIe 4.0/3.0 ×16 (CPU); 2 × PCIe 3.0 ×1 (chipset)
Storage	2 × M.2 Key‑M slots (PCIe 4.0 ×4, 2242/60/80); 4 × SATA 6 Gb/s with RAID 0/1/5/10
Networking	Intel 1 GbE LAN with ASUS LANGuard
Audio Codec	Realtek 7.1‑channel HD audio (ALC897), 24‑bit/192 kHz; jack detection & front-panel retasking
Rear USB Ports	2 × USB 3.2 Gen 1 (5 Gbps), 2 × USB 2.0
Front USB Headers	1 × USB 3.2 Gen 1 header (Type-C capable), 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers
Internal I/O Headers	1 × CPU fan, 2 × chassis fans; Clear CMOS; chassis intrusion; 2 × COM; LPT; front audio; speaker; TPM; Mono-out; SMBus; system panel; M.2 E‑slot for Wi‑Fi
Protection Features	ASUS 5X Protection III (DIGI+ VRM, LANGuard, over-voltage, SafeSlot Core+, stainless rear I/O); USBGuard; anti-moisture coating; Qin LED; COM debug; self‑recovering BIOS; event log; TPM onboard
BIOS	128 Mb UEFI AMI Flash ROM; commercial BIOS kit included; ASUS Control Center Express support
Warranty	3‑year warranty

ASUS Pro B660M-C D4-CSM mATX Motherboard

The ASUS Pro B660M-C D4-CSM mATX Motherboard is a feature-rich Micro-ATX motherboard from ASUS’s Commercial Series portfolio that is designed for corporate dependability, performance, and security. This board is specifically designed for business and enterprise settings that require long-term stability and manageability. It is built with Intel’s B660 chipset and supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors.

The LGA1700 socket ensures compatibility with the latest Intel processors, making it a future-ready platform for business desktops, point-of-sale systems, digital signage, and professional workstations. Whether your workflow involves spreadsheets, video conferencing, or multitasking across multiple applications, the Pro B660M-C D4-CSM delivers consistent and efficient performance.

Designed with cost-efficiency in mind, this motherboard supports DDR4 memory—a smart choice for businesses that want dependable speed without the added cost of DDR5. With four DIMM slots, it supports up to 128GB of RAM, making it suitable for a wide range of office productivity and enterprise software needs.

The board offers strong storage and connectivity capabilities. It includes two M.2 slots (one PCIe 4.0 x4 and one PCIe 3.0 x4), perfect for lightning-fast NVMe SSDs, and four SATA 6Gb/s ports to ensure reliable storage expansion for large files, databases, and backups.

Expansion flexibility is delivered via one PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, allowing users to add graphics cards, capture cards, networking cards, or other PCIe-based devices. This adaptability makes the motherboard ideal for tailored business builds and professional configurations.

On the networking front, the Intel Gigabit Ethernet controller ensures fast and reliable wired connectivity, ideal for enterprise-level networking or large office environments. The board also includes Athe SUS Commercial BIOS Kit and the ASUS Control Center Express (ACC), enabling easier IT management and remote control for large-scale deployments.

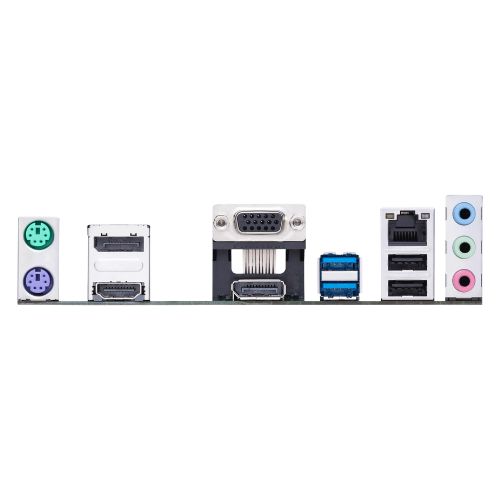

Rear I/O options are diverse, featuring USB 3.2 Gen 1, USB 2.0, HDMI, DisplayPort, VGA (D-Sub), COM port, and PS/2 interfaces. These legacy and modern ports ensure full compatibility with both current peripherals and older business equipment, especially useful in industries where legacy devices are still in use.

The 8-channel HD audio with dedicated shielding ensures clear sound output and input for business communication or conferencing setups, while internal headers support TPM (Trusted Platform Module) and COM ports for secure and specialized enterprise solutions.

Durability is a defining feature of this model. The Pro B660M-C D4-CSM comes with ASUS 5X Protection III, including SafeSlot Core+, LANGuard, overvoltage protection, stainless-steel I/O shield, and premium capacitors to guarantee long-term operation and resilience in 24/7 environments.

With a Micro-ATX form factor, it offers excellent compatibility with smaller cases without compromising on features. The clean and professional black PCB design adds a polished touch, making it suitable for visible office placements or open-system racks.

Overall, the ASUS Pro B660M-C D4-CSM mATX Motherboard If you’re looking to build secure, scalable, and dependable business systems, the ASUS Pro B660M-C D4-CSM mATX Motherboard delivers a business-class foundation with enterprise-grade stability, efficient management tools, and lasting durability. Ideal for companies, institutions, and professionals who expect more from their hardware.
