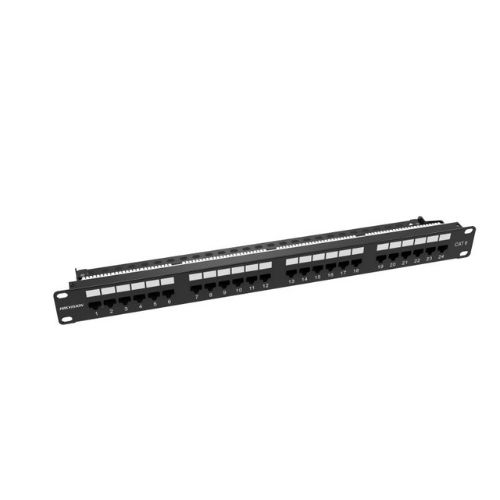

Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel

Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel - Image 2

Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel

Original price was: ৳ 3,100.00.Current price is: ৳ 2,550.00.

Features of the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel

Model: DS-1CP6U24-1U
Keystone Ports: 24, Supports 250MHz Data Rates
Universal Design and Label Supports both TIA 568 A & B Wiring
Compatible with 22-24 AWG Solid or Stranded Wires
Cable Termination Using 110 Block Termination Tool

Description
Reviews (0)

Description

Specification of the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel

Brand	Hikvision
Model	DS‑1CP6U24‑1U
Type	Cat6 U/UTP 24‑Port Patch Panel (Keystone)
Rack Size	1U, EIA 19″ width
Ports	24 × RJ45 keystone ports
Wiring Standards	Supports TIA‑568A & TIA‑568B
Category Rating	ANSI/TIA‑568.2‑D Category 6; ISO/IEC 11801 Class E; 250 MHz performance
Termination	IDC (110‑block compatible); press-fit, PCB-protective design
Material – Panel	Cold‑rolled steel, powder‑coated black
IDC Material	PC; contacts in PBT; IDC pins/phosphor bronze
Contact Plating	50 μin gold
Electrical Specs	DC resistance ≤ 20 mΩ; current rating 1.5 A @ 20 °C; dielectric withstand 1,000 VAC; insulation ≥ 500 MΩ
Mechanical Durability	≥ 750 plug cycles
Fire Rating	UL94 V‑0 (flame-retardant)
Dimensions (W×D×H)	482.6 × 31.7 × 44 mm; depth with bracket 92 mm
Weight	~830 g (box included)
Operating Temp / Humidity	–10 °C to +60 °C; 10–90 % RH
Accessories Included	24 cable ties; 4 × screws & nuts; 1 × installation tool

Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel

The Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel is a high-performance 24-port Cat6 unshielded patch panel, expertly designed to support structured cabling systems in data centers, enterprise networks, and surveillance installations. With a 1U rackmount form factor, it integrates seamlessly into standard 19-inch racks and cabinets, offering a centralized and professional solution for network cable termination and management.

Engineered for Category 6 (Cat6) standards, this patch panel supports Gigabit Ethernet and higher bandwidth applications, ensuring fast, stable, and interference-free data transmission. Its unshielded twisted pair (UTP) design reduces crosstalk and electromagnetic interference while maintaining cost-efficiency for high-density networking environments.

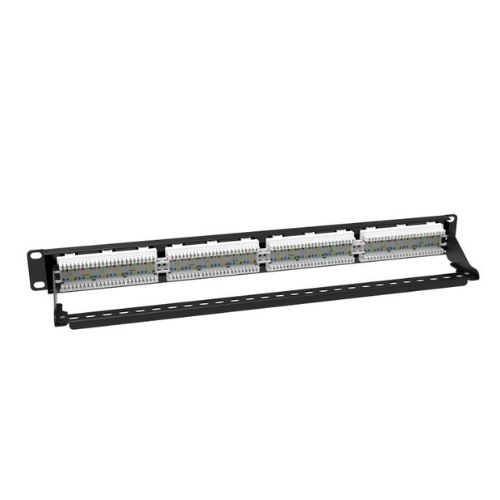

Each of the 24 RJ45 ports is clearly numbered for easy identification and cable organization. The panel also features IDC (Insulation Displacement Contact) terminals at the rear for quick, secure, and tool-assisted punch-down of cables. This setup allows installers to easily manage and maintain connections, reducing installation time and minimizing errors.

Crafted with a robust metal frame and durable components, the DS-1CP6U24-1U ensures long-term reliability even in high-traffic server rooms or control centers. It’s ideal for routing connections between switches, routers, and patch cables, creating a neat and serviceable network hub.

Overall, the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel offers dependable performance, well-organized cable management, and professional-grade connections, whether you’re building from scratch or upgrading your infrastructure.

What is the price of the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel in Bangladesh?

The latest price of the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel in Bangladesh is 2550 BDT. You can buy the Hikvision DS-1CP6U24-1U Cat6 Unshielded 24-Port Patch Panel from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.

Contact Us: +88 01894-683430
