Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable

Original price was: ৳ 18,000.00.Current price is: ৳ 17,400.00.

Features of the Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable

Model – DS-1LN6UEL5
CAT6 U/UTP, 24AWG (0.53mm) solid conductor
LSZH jacket, CPR Eca rated for fire safety
Excellent Fluke test: 90m at 50°C, 100m PoE (57V/1A)
High compatibility with ANSI/TIA, IEC, ISO standards
RoHS 2.0 compliant, eco-friendly design

Description
Reviews (0)

Description

Specification of the Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable

Brand	Hikvision
Model	DS‑1LN6UEL5

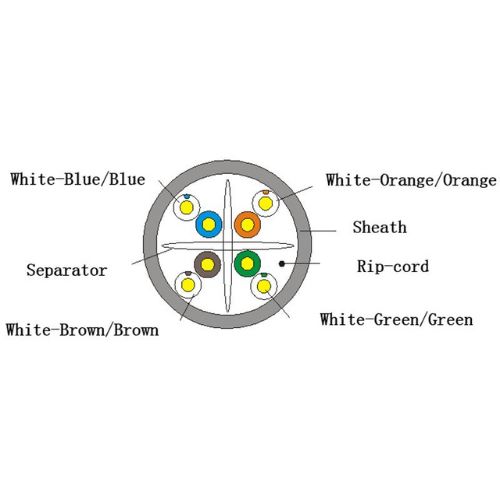

Category & Structure	Cat 6 U/UTP; solid bare copper, 24 AWG (Ø 0.530 ± 0.005 mm)
Length	305 ± 1.5 m
Insulation	HDPE, Ø 0.95 ± 0.05 mm
Sheath	LSZH PVC, Ø 5.80 ± 0.50 mm, thickness 0.50 ± 0.05 mm; white
Separator / Rip-cord	Yes / Yes
Fire Rating	CPR Eca; RoHS 2.0 compliant
Standards Compliance	ANSI/TIA‑568.2‑D, IEC 61156, ISO/IEC 11801
Performance Testing	Fluke-certified for 90 m at 50 °C continuous and 100 m PoE channel @ 57 V/1 A
Electrical Specs	Impedance 100 ± 15 Ω; Delay skew ≤ 45 ns/100 m; DC resistance ≤ 9.38 Ω/100 m; conductor unbalance ≤ 4 %
Mechanical Properties	Tensile ≥ 10 MPa (pre-aging), ≥ 8 MPa (post-aging); elongation ≥ 125 % / ≥ 100 %; cold-bend (–20 °C) no cracks
Operating Temp Range	–20 °C to 75 °C
Packing Dimensions	~400×400×255 mm; weight ≈ 13 ± 1 kg
Use Cases	Indoor structured cabling, PoE, Gigabit Ethernet, IP cameras

Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable

The Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable is built for high-speed, high-reliability networking over long distances. Designed to meet the standards of modern digital infrastructure, this 305-meter cable ensures stable, interference-resistant data transmission, making it an excellent choice for IP surveillance systems, enterprise networks, and high-bandwidth internet setups.

Engineered to Category 6 (CAT6) specifications, this cable supports Gigabit Ethernet speeds up to 1000 Mbps and is capable of handling heavy network loads such as HD video streaming, VoIP, cloud data access, and large file transfers with ease. It’s U/UIP (Unshielded/Unshielded Individual Pairs) construction reduces crosstalk while maintaining flexibility and ease of installation.

Inside, the DS-1LN6UEL5 uses high-quality copper-clad aluminum (CCA) conductors, providing an affordable yet efficient solution for professional-grade networking. It ensures stable data transmission and performs reliably in PoE (Power over Ethernet) applications, powering devices like IP cameras and access points without performance loss.

The cable is protected with a durable PVC outer sheath, offering resistance to wear, abrasion, and environmental stress. Its vibrant color coding makes identification easy during large-scale installations, and the cable is packaged in a smooth pull-box for hassle-free measuring and cutting.

Overall, the Hikvision DS-1LN6UEL5 CAT6 U/UIP 305 Meter Network Cable offers reliable speed, trusted performance, and the long-distance coverage that professionals require, whether you’re installing a surveillance system, constructing a data center, or setting up an office network.
