Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable

Original price was: ৳ 21,120.00.Current price is: ৳ 19,500.00.

Features of the Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable

Model – DS-1LN6USL5
CAT6 U/UTP, 23AWG (0.565mm) solid copper conductor
LSZH jacket with CPR Eca fire safety rating
305 meters in length, ideal for structured cabling
Excellent Fluke test: 90m at 50°C, 100m with 57V/1A PoE
Standards compliant: ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801, RoHS 2.0

Description
Reviews (0)

Description

Specification of the Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable

Brand	Hikvision
Model	DS‑1LN6USL5
Category	CAT 6 U/UTP
Length	305 ± 1.5 m
Conductor	Solid bare copper, Ø 0.565 ± 0.005 mm (23 AWG), 99.95 % Cu
Insulation	HDPE, Ø 0.98 ± 0.05 mm

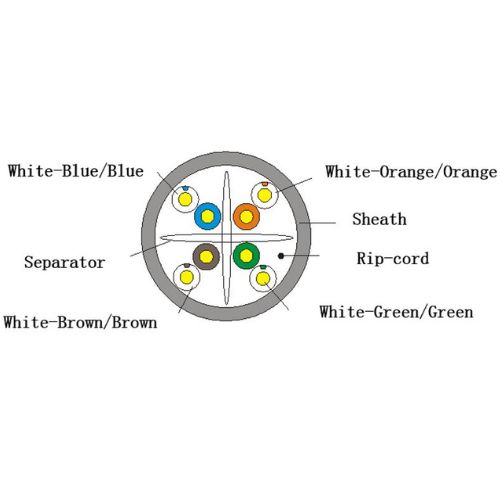

Sheath Material	LSZH PVC, thickness 0.50 ± 0.05 mm, Ø 6.20 ± 0.50 mm, color: white
Separator / Rip-cord	Yes / Yes
Standards Compliance	ANSI/TIA‑568.2‑D, IEC 61156, ISO/IEC 11801; RoHS 2.0
Fire Rating	CPR Eca
Fluke Testing	90 m permanent link @50 °C; 100 m channel under PoE (57 V/1 A)
Electrical Specs	Impedance 100 ± 15 Ω; delay skew ≤ 45 ns/100 m; DC resistance ≤ 9.38 Ω/100 m; unbalance ≤ 4 %
Mechanical Properties	Tensile ≥10 MPa / elongation ≥125% (pre-aging); ≥8 MPa / ≥100% (post-aging); cold‑bend to –20 °C
Operating Temperature	–20 °C to 75 °C
Package Dimensions	~334 × 338 × 270 mm; Weight ~15 ± 1 kg
Use Cases	Indoor structured cabling, Gigabit Ethernet, PoE, IP cameras

Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable

The Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable is a high-quality networking cable designed to meet the demands of modern communication and data transmission systems. With a generous 305-meter length, this cable is ideal for structured cabling in office buildings, commercial spaces, and surveillance infrastructure, where reliable and high-speed connectivity is essential.

Built to Category 6 (CAT6) standards, this U/UTP (Unshielded Twisted Pair) cable delivers excellent data performance, supporting up to 1 Gbps Ethernet speeds and frequencies up to 250 MHz. It is designed to reduce crosstalk and electromagnetic interference (EMI), ensuring clean and stable data transmission even in dense electrical environments.

The DS-1LN6USL5 features copper-clad aluminum (CCA) conductors, striking a balance between conductivity and cost-efficiency. It’s a smart choice for long-distance LAN and IP surveillance installations where PoE (Power over Ethernet) is also required, enabling data and power to be transmitted simultaneously without signal degradation.

Encased in a durable, flame-retardant PVC sheath, the cable offers strong resistance to physical damage, bending, and environmental stress. Its smooth, tangle-free pull-box packaging ensures quick and convenient installation, reducing downtime during large-scale deployments.

Overall, the Hikvision DS-1LN6USL5 CAT6 U/UTP 305 Meter Structure Cable offers outstanding value, dependable performance, and long-lasting dependability, all supported by Hikvision’s industry-leading quality, whether you’re wiring a business network, setting up IP cameras, or creating a dependable home internet infrastructure.
