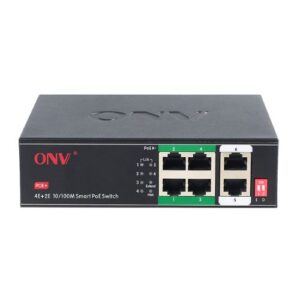

ONV-H1064PLD 10/100M 6-Port Smart PoE Switch

Description

Specification of the ONV-H1064PLD 10/100M 6-port Smart PoE Switch

Brand	ONV
Model	ONV-H1064PLD
Interface Characteristics
Fixed Port	4*10/100Base-TX PoE ports (Data/Power)
	2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port	Port 1-6/ 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤250 meters)
	100BASE-TX: Cat5 or later UTP (≤100 meters)
Function Switch	E: long-distance transmission and VLAN isolation (Default off)
	D: PoE watchdog mode: When the network fails, PoE watchdog will restart the power supply of the device and automatically repair the network communication. (Default off)
	Note: The function switch can control different functions, which can be enabled separately and simultaneously.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.6Gbps (non-blocking)
Forwarding Rate @64byte	0.89Mpps
MAC	1K
Buffer Memory	768K
Jumbo Frame	1536byte
LED Indicator	Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Function switch: E/D (Green)
PoE & Power Supply
PoE Port	Port 1-4
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR / Input Voltage	65W/ (AC100-240V)
Power Consumption	Standby<3W, Full load<65W
Power Supply	Built-in power supply, AC100-240V 50-60Hz, 1.1A
Physical Parameter
Operation Temp/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40°C~+80°C, 5%~95% RH Non condensing
Dimension (L*W*H)	142.5*115*40mm
Net /Gross Weight	0.55kg/ 0.8kg
Installation	Desktop, Wall mount
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.



ONV-H1064PLD 10/100M 6-port Smart PoE Switch

The ONV-H1064PLD 10/100M 6-port Smart PoE Switch is a reliable and efficient solution for small to medium-sized surveillance and networking setups. Designed by ONV, this compact and smart switch offers stable performance, long-distance transmission, and intelligent PoE management in one device.

This model features 4 PoE ports (10/100Base-TX) that can deliver both data and power to your IP cameras or PoE-enabled devices, and 2 uplink ports (10/100Base-TX) dedicated to data transmission. All six ports support auto-sensing and MDI/MDI-X self-adaptation, ensuring easy plug-and-play connectivity.

For enhanced functionality, the ONV-H1064PLD includes an E/D function switch:

• E mode enables long-distance transmission and VLAN isolation for greater network security and extended coverage.

• D mode activates the PoE watchdog feature, automatically rebooting unresponsive devices to maintain network stability—perfect for uninterrupted surveillance applications.

With a switching capacity of 1.6Gbps, store-and-forward transmission, and 0.89Mpps forwarding rate, this switch ensures smooth and fast data flow. It supports major network protocols like IEEE 802.3 standards and includes LED indicators for power, link status, PoE activity, and function modes.

On the power front, it supports up to 30W per PoE port (IEEE 802.3 af/at), with a total power budget of 65W, and a built-in power supply compatible with AC100-240V input.

Housed in a compact metal casing (142.5×115×40mm), it supports both desktop and wall-mount installations. It’s built to withstand operating temperatures from -20°C to +55°C, and is protected against lightning up to 4KV, making it suitable for indoor industrial use.

Certified by CCC, CE, FCC, RoHS, and more, the ONV-H1064PLD 6-Port Smart PoE Switch comes with a 1-year warranty and lifelong maintenance support—making it a smart, cost-effective choice for anyone looking to build a secure and efficient network.
