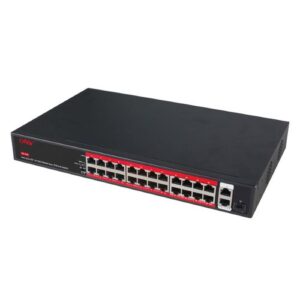

ONV-H2024PFG-YS Gigabit uplink 27-port non-standard PoE switch

Key Features of the ONV-H2024PFG-YS Gigabit uplink 27-port non-standard PoE switch

24 PoE ports with up to 18W per port (non-standard PoE+)
2 Gigabit uplink RJ45 ports + 1 SFP fiber port
250W built-in power supply
250m long-distance mode for extended PoE coverage
1-year warranty

(Call for Price +88 018-94683430)

Description
Reviews (0)

Description

Specification of the ONV-H2024PFG-YS Gigabit uplink 27-port non-standard PoE switch

Model	ONV-H2024PFG-YS
Interface Characteristics
Fixed Port	24*10/100Base-TX PoE ports (Data/ Power)
	2*10/100/1000Base-T uplink RJ45 ports (Data)
	1*1000Base-X uplink SFP fiber port (Data)
Ethernet Port	Port 1-16/ 1-24 can support 10/100Base-T(X) and port 17-18/ 25-26 can support 100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-TX : Cat5 or later UTP (≤250 meters)
	100BASE-TX: Cat5 or later UTP (≤100 meters)
	1000BASE-T :Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC/SC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m
	Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Functional Switch (100m/250m)	Port 9-16/ 17-24 can support 10M/250 meters transmission when the functional switch is on 250m.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	10.8Gbps (Non-blocking)
Forwarding Rate@64byte	8.04Mpps
MAC	2K
Buffer Memory	2.75M
Jumbo Frame	9216B
LED Indicator	Power: PWR (Green), Network: Link (Green), PoE: PoE(Red), Fiber port: L/A (Green), Functional switch: 100m/250m (Green)
PoE & Power Supply
PoE Port	Port 1-24
Power Supply Pin	4/5(+) 7/8(-)
Max Single Port PoE Power	18W, non-standard PoE+
Total PWR / Input Voltage	250W /(AC100-240V)
Power Consumption	Standby<8W, Full Load<250W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation TEMP / Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40°C~+80°C, 5%~95% RH Non condensing
*Dimension (LWH)*	35021544mm
Net /Gross Weight	1.9kg / 2.45kg
Installation	Desktop, Rack mounted
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.

ONV-H2024PFG-YS Gigabit uplink 27-port non-standard PoE switch

The ONV-H2024PFG-YS Gigabit uplink 27-port non-standard PoE switch is designed to provide exceptional performance and flexibility for large-scale networking applications, including surveillance systems, VoIP deployments, and high-demand environments. Featuring 24 PoE ports and 2 Gigabit RJ45 uplink ports, along with 1 SFP fiber port, this switch ensures seamless connectivity and power distribution for a variety of devices.

Each of the 24 PoE ports supports non-standard PoE+ with up to 18W of power per port, ideal for powering IP cameras, access points, and other low-power devices. The built-in power supply provides a total output of 250W, ensuring reliable performance even under full load. The SFP fiber port offers long-range connectivity for remote locations, while the two Gigabit uplink ports ensure fast data transfer for high-bandwidth applications.

The ONV-H2024PFG-YS switch also features a unique functional switch mode that supports transmission distances of up to 250 meters for ports 9-24, expanding its coverage for larger installations. The durable metal housing with 4KV lightning protection and IP30-rated design ensures reliable operation in harsh environments, while the switch supports a wide range of mounting options, including desktop and rack-mounted configurations.

Whether you’re managing a large-scale surveillance system or extending your network, the ONV-H2024PFG-YS provides a dependable, high-performance solution with excellent power efficiency and scalability.
