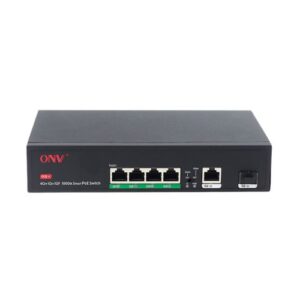

ONV-H3054PFD Gigabit 6-Port PoE Switch

ONV-H3054PFD Gigabit 6-Port PoE Switch

Key ONV-H3054PFD Gigabit 6-Port PoE Switch

  • 4 PoE Ports (30W per port, IEEE 802.3 af/at)

  • Gigabit Optical Fiber Port (SFP, optional single-mode or multi-mode)

  • Switching Capacity: 12Gbps (non-blocking)

  • Compact Design: 200×130×40mm, desktop or wall-mountable

  • 1-Year Warranty

(Call for Price +88 018-94683430)

Description

Specification of the ONV-H3054PFD Gigabit 6-Port PoE Switch

Model ONV-H3054PFD
Interface Characteristics
Fixed Port 1*1000Base-X uplink SFP fiber port (Data)
1*10/100/1000Base-T uplink RJ45 port (Data)
4*10/100/1000Base-T PoE ports (Data/Power)
Ethernet Port Port 1-5 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port Gigabit optical fiber port, default no include optical module(optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance Multi-mode: 850nm/ 0-550m
Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Functional Switch 250m: long-distance and VLAN isolation function (Default off, Use:on), After opening, the transmission rate of port 1-4 is 10M/250 meters transmission.
Chip Parameter
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode Store and Forward (Full Wire Speed)
Switching Capacity 12Gbps (Non-blocking)
Forwarding 8.93Mpps
Rate@64byte
MAC 2K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power: PWR (Green), Network: Link (Green), PoE: PoE (Red), Functional switch: 100m/250m (Green)
PoE & Power Supply
PoE Port Port 1 to 4
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, IEEE 802.3 af/at
Total PWR / Input Voltage 65W/ (AC100-240V)
Power Consumption Standby <3W, Full load <65W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 1.0A
Physical Parameter
Operation TEMP/ Humidity -20~+55°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity -40~+80°C, 5%~95% RH Non condensing
Dimension (L*W*H) 200*130*40mm
Net /Gross Weight 0.6kg / 0.9kg
Installation Desktop, Wall mounted
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty 1 year, lifelong maintenance.

ONV-H3054PFD Gigabit 6-Port PoE Switch

ONV-H3054PFD Gigabit 6-Port PoE Switch

The ONV-H3054PFD Gigabit 6-Port PoE Switch is a powerful and versatile network solution designed to provide reliable data and power transmission for high-demand environments. This switch features 4 PoE ports (30W per port, IEEE 802.3 af/at) that deliver both data and power to devices like IP cameras, wireless access points, and more. In addition to the PoE ports, it offers 1 Gigabit SFP fiber uplink port for high-speed fiber connections and 1 Gigabit RJ45 uplink port for standard copper-based networking.

The ONV-H3054PFD supports auto-sensing 10/100/1000Base-T(X) ports, ensuring fast, seamless data transfer with full/half duplex and MDI/MDI-X self-adaptation. For extended network coverage, the switch also provides a long-distance transmission mode (250 meters) with VLAN isolation to improve security.

With an impressive switching capacity of 12Gbps and 8.93Mpps forwarding rate, this switch ensures smooth data flow and supports Jumbo Frames up to 9.2K, making it ideal for high-bandwidth applications. The built-in power supply supports a total power budget of 65W, making it suitable for powering a variety of devices without requiring additional power sources.

Housed in a compact design (200×130×40mm), this switch is suitable for both desktop and wall-mounted installations. It is built to operate in temperatures ranging from -20°C to +55°C, and is protected by 4KV lightning protection and an IP30 protection level, ensuring reliable operation in harsh environments.

Certified with CCC, CE, FCC, and RoHS, the ONV-H3054PFD comes with a 1-year warranty and lifelong maintenance support, making it a robust and cost-effective choice for building and maintaining your network infrastructure.

What is the price of the ONV-H3054PFD Gigabit 6-Port PoE Switch in Bangladesh?

The latest price of the ONV-H3054PFD Gigabit 6-Port PoE Switch (Call for Price +88 018-94683430). You can buy the ONV-H3054PFD Gigabit 6-Port PoE Switch from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.

Contact Us: +88 01894-683430
