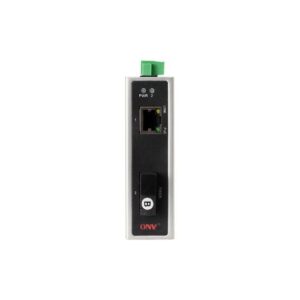

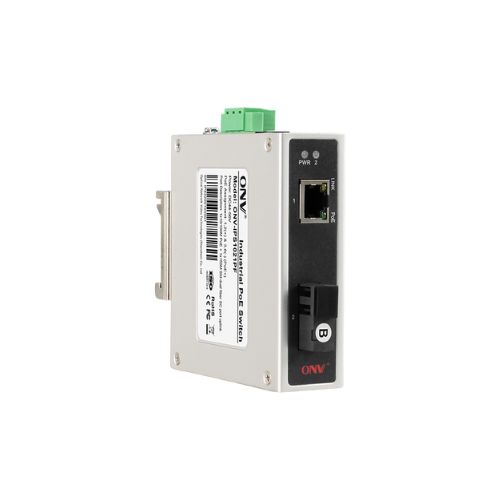

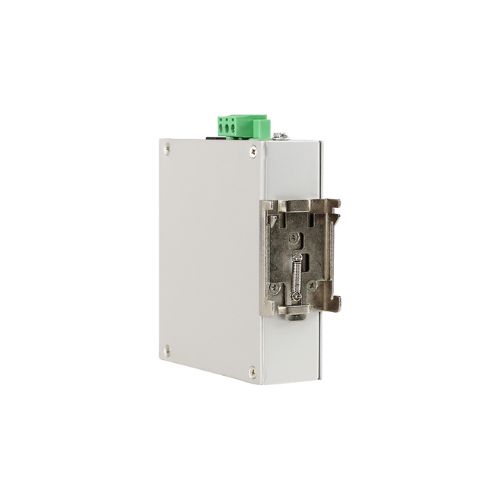

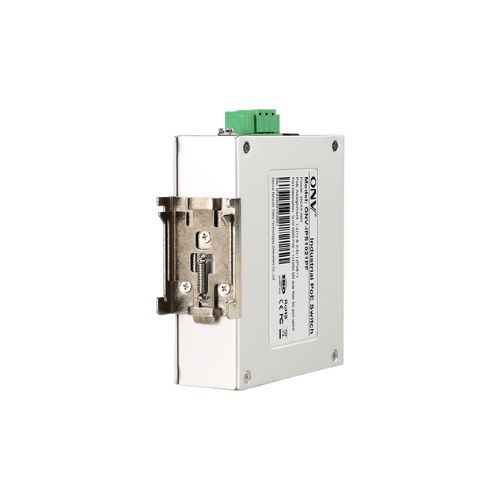

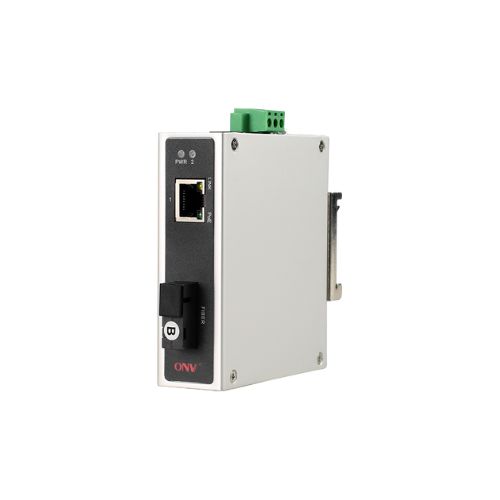

ONV-IPS1021PF 10/100M 2-port industrial PoE switch

ONV-IPS1021PF 10/100M 2-port industrial PoE switch - Image 3

ONV-IPS1021PF 10/100M 2-port industrial PoE switch

Features of the ONV-IPS1021PF 10/100M 2-port industrial PoE switch

(Call for Price +88 018-94683430)

1× PoE+ Port (30W max) – Powers IP cameras, APs, and IoT devices
1× 100M SC Fiber Uplink – Supports long-distance transmission up to 2km
Industrial-Grade Build – Operates in extreme temperatures (-40°C to +75°C)
1*E POE+1*EF（SM）
6KV Lightning Protection – Ensures network stability in harsh environments
Dual DC Power Input (48-55V) – Provides a redundant and reliable power supply

Description
Reviews (0)

Description

Specification of the ONV-IPS1021PF 10/100M 2-port industrial PoE switch

Model	ONV-IPS1021PF \| ONV-IPS1021PF-A \| ONV-IPS1021PF-B
Interface Characteristics
Fixed Port	1155M uplink SC fiber port (Data) 110/100Base-TX PoE port (Data/Power)
Ethernet Port	Port 1 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP ( ≤100 meters)
Optical Fiber Port	Optical module is single-mode dual fiber 20km, SC port
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.0Gbps (non-blocking)
Forwarding Rate@64byte	0.3Mpps
MAC	1K
Buffer Memory	512K
Jumbo Frame	2048bytes
LED Indicator	Power: PWR (Green), PoE: PoE (Green), Network: Link (Yellow), Fiber port: 2 (Green)
PoE&Power Supply
PoE Port	Port 1
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<1W, Full load af<15, at<30W
Working Voltage	DC44-56V, 3P industrial terminal and DC jack, support anti-reverse protection
Power Supply	No, optional 48V/36W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS1021PF 10/100M 2-port industrial PoE switch

The ONV-IPS1021PF 10/100M 2-port industrial PoE switch is a robust 2-port industrial PoE switch made for dependable network connectivity in challenging conditions. It has one 100Base-FX SC fiber uplink port for long-distance data transfer up to 2 km and one 10/100Base-TX PoE port for data and power transmission. This switch is perfect for outdoor deployments and industrial applications because of its small size, robust construction, and IP40-rated protection, which allows it to tolerate temperatures ranging from -40°C to +75°C. IP cameras, wireless access points, and other PoE-powered devices will operate without a hitch thanks to its compatibility for IEEE 802.3af PoE, which delivers 30W per port. Store-and-forward switching is used by the ONV-IPS1021PF to provide reliable and effective data transfer. With its 6KV lightning protection, it improves network security and keeps linked equipment safe from power surge damage. By ensuring a redundant power supply, the dual DC power input (48-55V) lowers the chance of downtime.

Overall, the ONV-IPS1021PF 10/100M 2-port industrial PoE switch is perfect for applications requiring endurance and dependability, such as remote networking, outdoor monitoring, and industrial automation.
