ONV-IPS1064 10/100M 6-port industrial Ethernet switch

Features of the ONV-IPS1064 10/100M 6-port industrial Ethernet switch

(Call for Price +88 018-94683430)

Model: ONV-IPS1064
Ports: 6× 10/100M RJ45
Design: IP40, fanless, aluminum housing
Power: Dual DC 12–48V input
Mounting: DIN rail
Use: Industrial environments

Description
Reviews (0)

Description

Specification of the ONV-IPS1064 10/100M 6-port industrial Ethernet switch

Model	ONV-IPS1064
Interface Characteristics
Fixed Port	6*10/100Base-TX RJ45 ports (Data)
Ethernet Port	Port 1-6 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.6Gbps (No-blocking)
Forwarding Rate @64byte	0.89Mpps
MAC	2K
Buffer Memory	768K
Jumbo Frame	2048bytes
LED Indicator	Power: PWR (Green), Network: Link 1-6 (Yellow)
Power Supply
Power Consumption	Standby<3W, Full load<5W
Input Voltage/ Interface	DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

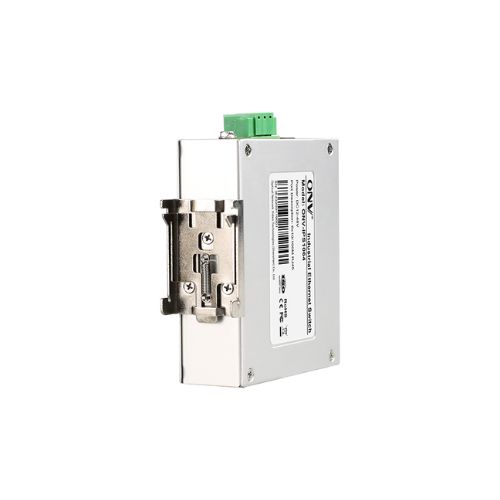

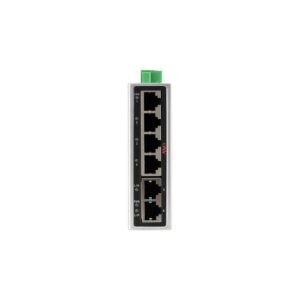

ONV-IPS1064 10/100M 6-port industrial Ethernet switch

The ONV-IPS1064 10/100M 6-port industrial Ethernet switch is a tough, unmanaged, 6-port industrial Ethernet switch made for demanding applications in challenging conditions. It is perfect for connecting IP cameras, sensors, PLCs, and other industrial equipment because it has 6 x 10/100M RJ45 ports that allow for steady and fast data transfer. The ONV-IPS1064 guarantees long-term, maintenance-free operation with its strong protective features and fanless design. The ONV-IPS1064 is designed to work dependably in a variety of settings, including power substations, outdoor control cabinets, and manufacturing floors.

It is resistant to shock, vibration, and moisture and functions well in a broad temperature range of -40°C to +75°C. Its IP40 protection shields internal components from dust and debris, and its metal casing guarantees mechanical robustness. With its DIN rail and wall-mount adaptability, this switch allows for versatile placement and is made for easy installation and little maintenance. Simply connect your device and turn it on to begin using it. Its plug-and-play feature eliminates the requirement for setup or software.

Overall, the ONV-IPS1064 10/100M 6-port industrial Ethernet switch fits the bill when your business needs reliable, compact, and effective network connectivity. With its robust construction for industrial settings and its simplicity-focused design, it’s the best option for reliable and affordable Ethernet expansion.
