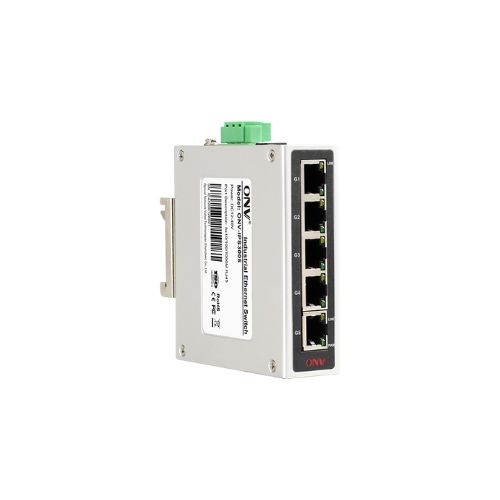

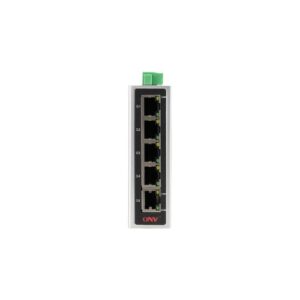

ONV-IPS3005 Gigabit 5-port industrial Ethernet switch

ONV-IPS3005 Gigabit 5-port industrial Ethernet switch

Features of the ONV-IPS3005 Gigabit 5-port industrial Ethernet switch

(Call for Price +88 018-94683430)

Model: ONV-IPS3005
Ports: 5× Gigabit RJ45
Design: IP30-rated, fanless aluminum housing
Power: Dual DC input (12–48V) with reverse protection

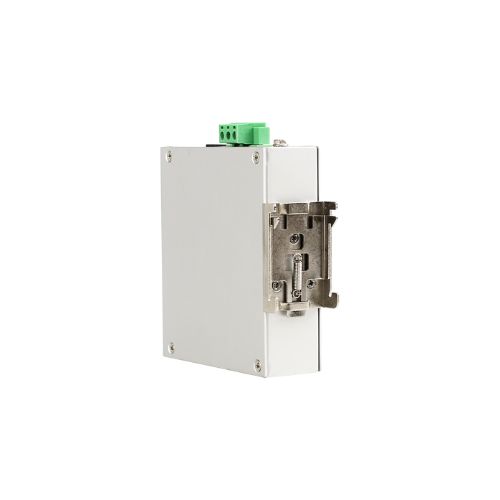

Mounting: DIN rail
Use: Reliable for harsh industrial environments

Description
Reviews (0)

Description

Specification of the ONV-IPS3005 Gigabit 5-port industrial Ethernet switch

Model	ONV-IPS3005
Interface Characteristics
Fixed Port	5*10/100/1000Base-T RJ45 ports (Data)
Ethernet Port	Port 1-5 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate @64byte	7.44Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216bytes
LED Indicator	Power: PWR (Green), Network: Link G1-G5 (Yellow)
Power Supply
Power Consumption	Standby<3W, Full load<5W
Input Voltage/ Interface	DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS3005 Gigabit 5-port industrial Ethernet switch

The ONV-IPS3005 Gigabit 5-port industrial Ethernet switch is a small, durable, 5-port Gigabit Ethernet switch that can provide dependable, fast connectivity even in the most challenging conditions. It will help you advance your industrial networking. This switch’s superior protective features, plug-and-play operation, and industrial-grade construction make it ideal for outdoor installations, transit systems, and factory floors, among other applications. This switch offers quick and reliable connections for a variety of industrial Ethernet devices, including controllers, sensors, and IP cameras, thanks to its 5 × Mbps RJ45 ports.

The ONV-IPS3005 is perfect for harsh situations since it is made with a strong metal shell and is designed to function in harsh environments. It works flawlessly in temperatures ranging from -40°C to 75°C. Just plug in your devices; there is no setup necessary. With this unmanaged switch, growing your network is simple. For versatile and safe installation in cabinets, enclosures, or equipment installations, it has DIN-rail and wall-mount support. Even in places where power fluctuations are common, your devices remain secure and connected thanks to 6KV surge and lightning protection. For long-term performance, the fanless thermal structure guarantees silent, dust-resistant, and energy-efficient operation.

Overall, the ONV-IPS3005 Gigabit 5-port industrial Ethernet switch is your go-to option for creating a strong and dependable industrial Ethernet network because of its sturdy construction, quick performance, and zero-configuration architecture. This switch offers reliable, smooth operation whether you’re powering smart factories or keeping an eye on transportation systems.
