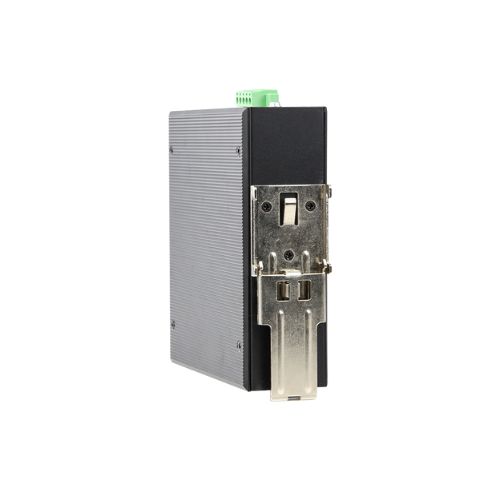

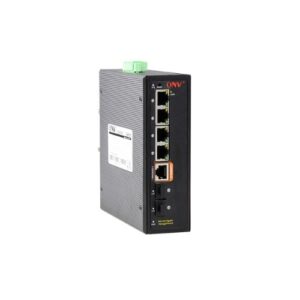

ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch

Features of the ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch

(Call for Price +88 018-94683430)

4× GE RJ45 + 2× GE SFP ports
L2+ managed, supports VLAN, QoS, STP/RSTP, ERPS
Wide temp range: -40°C to 80°C, fanless IP40 design
Dual 12–48V DC power input with protection
DIN-rail mount, industrial-grade reliability

Description
Reviews (0)

Description

Specification of the ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch

Model	ONV-IPS33006FM
Interface Characteristics
Fixed Port	1Console RS232 port (115200,N,8,1) 410/100/1000Base-T RJ45 ports (Data) 2*100/1000Base-X uplink SFP fiber ports (Data) 2 sets V+, V- redundant DC power port (5P Phoenix terminal)
Ethernet Port	Port 1-4 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate @64byte	8.93Mpps
CPU(Hz)	500M
DRAM	1G
Flash	128M
Buffer Memory	4M
MAC	8K
LED Indicator	Power/ System: SYS (Green), Network: Link (Yellow), Fiber port: L/A (Green)
Reset Switch	Yes, Press and hold the reset switch for 10s and release it to restore the factory settings
Power Supply
Power Consumption	Standby<8W, Full load<12W
Working Voltage	DC12-48V, 5P Phoenix terminal connection, supports anti-reverse connection protection
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	145134.547mm
Net /Gross Weight	0.7kg/ 0.9kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Broadcast storm suppression based on port rate Port real-time traffic management (Flow Interval) Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 16Kbps and max is 1Gbps
L3 Feature	IPV4 static route/ default route
VLAN	Port-based VLAN (4K), VLAN based on the protocol IEEE802.1q, Port configuration of Access, Trunk, Hybrid
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 3 aggregation groups and 8 ports per group
Spanning Tree	RSTP (IEEE 802.1w)
ERPS	ERPSv2
Multicast	Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2
Port Mirroring	Bidirectional data mirroring based on port
QoS	802.1p/ DSCP priority mapping, Diff-Serv QoS Queue scheduling algorithm (SP, WRR, WFQ) Flow-based rate limiting, Flow-based packet filtering Flow-based based redirection, 8*Output queues of each port
ACL	Port-based and VLAN-delivered ACL The L2-L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range to define the ACL.
Security	Port isolation, Port broadcast message suppression Port-based and Mac-based IEEE802.1X certification User hierarchical management and password protection AAA&RADIUS certification, IP source address protection
DHCP	DHCP Client, DHCP Snooping
Management	Web network management (https), Ping detection ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status Link Layer Discovery Protocol (LLDP), System work log Console/ Telnet and CLI configuration, SNMP V1/V2/V3 NTP clock, HTTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch

The ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch is a high-performance 6-port L2+ managed industrial Ethernet switch that was created especially to satisfy the demanding requirements of mission-critical networking settings, smart transportation, and industrial automation. This small switch, which was carefully designed and constructed to last, offers reliable gigabit performance, clever administration features, and remarkable durability—even in challenging industrial or outdoor environments. With two × 100/1000Mbps SFP uplink connections and four × 10/100/1000Mbps RJ45 ports, the ONV-IPS33006FM offers fast copper and fiber connectivity.

This switch manages data traffic with ease and effectiveness, whether it is for long-distance fiber uplinking or local connectivity. This switch equips network managers with the necessary tools to build safe, scalable, and efficient industrial networks by supporting L2+ features like VLAN, QoS, IGMP Snooping, SNMP, Port Trunking, Static Routing, and MAC Binding. The ONV-IPS33006FM has an IP40-rated metal shell, is designed to withstand harsh conditions, and can withstand temperatures ranging from -40°C to 75°C. It is perfect for industries, power plants, and outdoor deployments since it is resistant to dust, vibration, and electromagnetic interference.

Overall, the ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch is a compact yet powerful solution for building stable, intelligent, and rugged industrial networks. With its robust construction, advanced management features, and high-speed performance, it ensures uninterrupted operation and maximum control across your entire network infrastructure.

What is the price of the ONV-IPS33006FM Gigabit 6-port L2+ managed industrial Ethernet switch in Bangladesh?

The latest price of the ONV-IPS33006FM is (Call for Price +88 018-94683430). You can buy the ONV-IPS33006FM from us at the best price. You can either purchase it through our website or directly visit our office.
