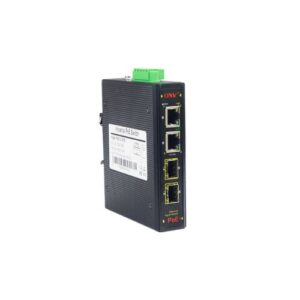

ONV-IPS33042PF Gigabit 4-port industrial PoE switch

ONV-IPS33042PF Gigabit 4-port industrial PoE switch

Features of the ONV-IPS33042PF Gigabit 4-port industrial PoE switch

(Call for Price +88 018-94683430)

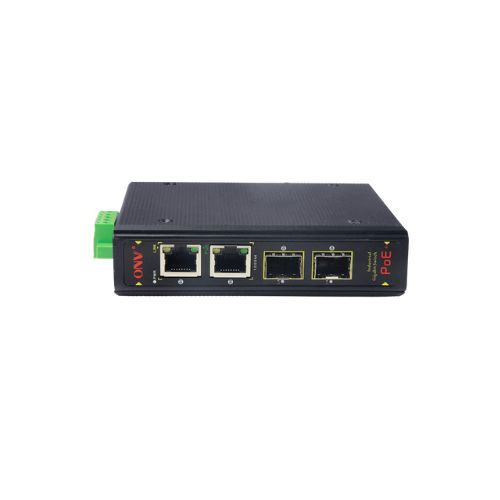

Ports: 2× Gigabit RJ45 (PoE) + 2× SFP Fiber
PoE Standard: IEEE 802.3af/at, up to 30W per port
Industrial Grade: -40°C to 75°C, rugged metal casing
Power Input: Dual DC 48-57V
Design: DIN-rail mounting for industrial use

Description
Reviews (0)

Description

Specification of the ONV-IPS33042PF Gigabit 4-port industrial PoE switch

Model	ONV-IPS33042PF
Interface Characteristics
Interface	21000Base-X uplink SFP fiber ports (Data) 210/100/1000Base-T PoE ports (Data/Power) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-2 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm /0-40km,1550nm /0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	5.95Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR(Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green)
PoE& Power Supply
PoE Port	Port 1-2
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<4W, Full load af<30W, at<60W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/36W or 48V/60W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension	11910030mm
Net /Gross Weight	0.4kg/ 0.5kg

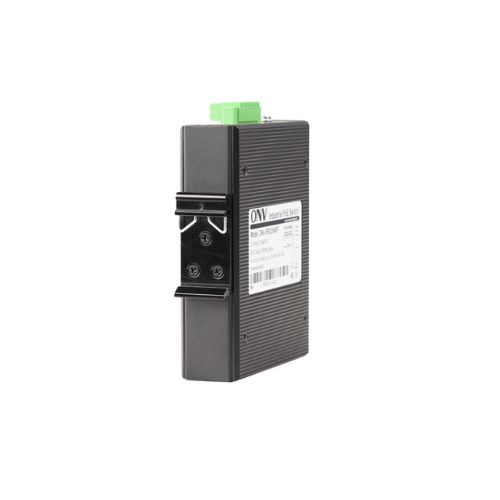

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS33042PF Gigabit 4-port industrial PoE switch

The ONV-IPS33042PF Gigabit 4-port industrial PoE switch is a sturdy 4-port Gigabit industrial PoE switch made to withstand challenging conditions. It offers two gigabit SC fiber ports and four PoE-enabled gigabit Ethernet ports, guaranteeing smooth power and data transfer over extended distances. The switch is perfect for IoT, surveillance, and industrial automation applications since it has redundant DC power inputs for increased dependability. It offers store-and-forward switching with a non-blocking 12Gbps switching capacity and is outfitted with IEEE 802.3 protocols. IP cameras, wireless access points, and other PoE devices can be effectively powered by the 48-57V DC input that the PoE ports (1-4) provide. Additionally, it provides excellent ESD and surge protection, guaranteeing stability in trying circumstances.

Overall, the ONV-IPS33042PF Gigabit 4-port industrial PoE switch is designed for unwavering performance in industrial environments and features a durable DIN rail installation, IP40-rated protection, and an operating temperature range of -40°C to 75°C. Long-term dependability and security are ensured by its numerous certifications and 5-year warranty.

What is the price of the ONV-IPS33042PF Gigabit 4-port industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS33042PF Gigabit 4-port industrial PoE switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS33042PF Gigabit 4-port industrial PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.
