ONV-IPS33064 Gigabit 6-port industrial Ethernet switch
Features of the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch
(Call for Price +88 018-94683430)
- 4× Gigabit RJ45 + 2× Gigabit SFP ports
- L2+ management: VLAN, QoS, ACL, static routing
- Redundant power (DC), fanless IP40 design
- Supports STP/RSTP/MSTP, ERPS
- DIN rail mount for industrial use
Description
Specification of the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch
| Model | ONV-IPS33064 |
| Interface Characteristics | |
| Fixed Port |
6*10/100/1000Base-T RJ45 ports (Data)

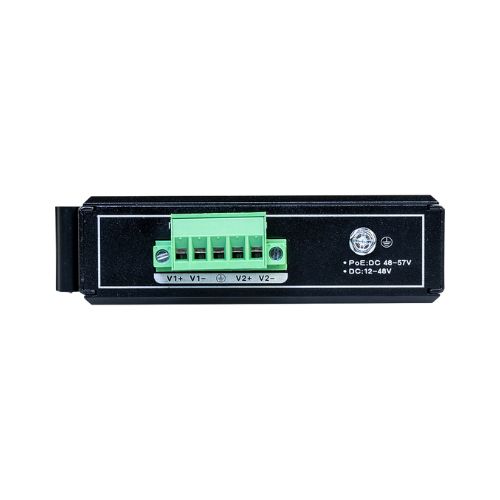

2 sets V+, V- redundant DC power ports (5P Phoenix terminal) |
| Ethernet Port |
Port 1-6 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
|
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) |
| Chip Parameter | |
| Network Protocol |
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-T, IEEE 802.3x
|
| Forwarding Mode |
Store and Forward (Full Wire Speed)
|
| Switching Capacity |
16Gbps (non-blocking)
|
| Forwarding Rate @64byte | 8.93Mpps |
| MAC | 8K |
| Buffer Memory | 2M |
| Jumbo Frame | 9.2K |
| LED Indicator |
Power: PWR (Green), Network: Link, Link/Act (Yellow)
|
| Power Supply | |
| Working Voltage |
DC12-48V, 5P industrial phoenix terminal, support anti-reverse protection
|
| Power Consumption |
Standby<4W, Full load<6W
|
| Power Supply |
No, optional 24V/24W industrial power supply
|
| Physical Parameter | |
| Operation TEMP / Humidity |
-40°C~+80°C, 5%~90% RH Non condensing
|
| Storage TEMP / Humidity |
-40°C~+85°C, 5%~95% RH Non condensing
|
| Dimension (L*W*H) |
119*100*30mm
|
| Net /Gross Weight | 0.4kg /0.5kg |
| Installation |
Desktop, 35mm DIN Rail
|
| Certification & Warranty | |
| Lightning Protection |
Protection level: IP40
Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV |
| Mechanical Properties |
IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
|
| Certification |
CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
|
| Warranty |
5 years, lifelong maintenance.
|
ONV-IPS33064 Gigabit 6-port industrial Ethernet switch
The ONV-IPS33064 Gigabit 6-port industrial Ethernet switch is a high-performance 6-port Gigabit industrial Ethernet switch that is made for the most demanding industrial settings. It guarantees dependable, quick, and secure connectivity for a variety of industrial applications. This switch is perfect for automation systems, surveillance installations, transportation networks, and more because it is built with sturdy features and industrial-grade protection.
The ONV-IPS33064, which has six × Mbps RJ45 ports, enables smooth data transfer in industrial environments by offering fast, reliable network connections for devices including controllers, sensors, IP cameras, and more. Offering an operating temperature range of -40°C to 75°C and a sturdy metal casing, this switch is made to endure severe situations, such as factories, outdoor installations, and transportation hubs. Use unmanaged plug-and-play functionality to streamline your network configuration. Installation is quick and easy because no configuration is required. Installing the ONV-IPS33064 in control cabinets, racks, or other tight locations is made simple by its versatile design, which allows for DIN-rail or wall mounting. Even in unpredictable power conditions, this switch’s 6KV lightning and surge protection helps avoid network disruptions brought on by electrical spikes, guaranteeing steady and safe communication. It is perfect for settings that require energy economy and noise reduction because of its fanless design, which guarantees silent operation and lowers maintenance requirements.
Overall, the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch offers a strong and dependable solution for your Ethernet networking requirements because it is designed to manage high bandwidth demands and sustain steady network performance in demanding industrial environments. This switch provides outstanding dependability, security, and usability, whether you’re creating a new network or updating an old one.
What is the price of the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch in Bangladesh?
The latest price of the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS33064 Gigabit 6-port industrial Ethernet switch from us at the best price. You can either purchase it through our website or directly visit our office.
Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.
Contact Us: +88 01894-683430
