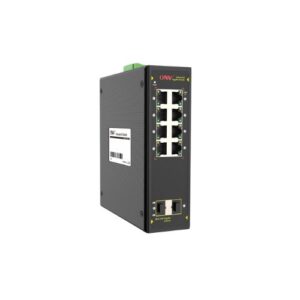

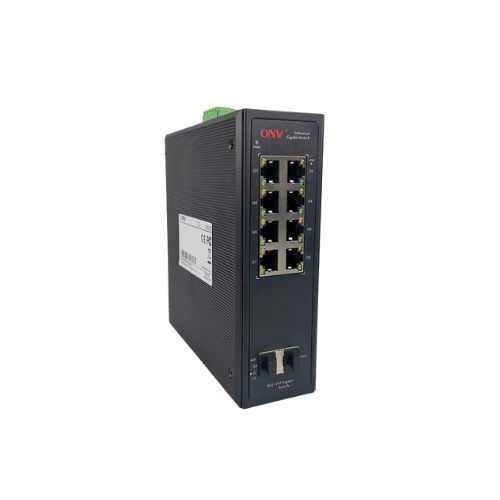

ONV-IPS33108F Gigabit 10-port industrial Ethernet switch

ONV-IPS33108F Gigabit 10-port industrial Ethernet switch

Features of the ONV-IPS33108F Gigabit 10-port industrial Ethernet switch

(Call for Price +88 018-94683430)

8× Gigabit RJ45 + 2× Gigabit SFP ports
IP40-rated metal housing, fanless design
Dual 12–48V DC power input
DIN rail mounting
Unmanaged, plug & play

Description
Reviews (0)

Description

Specification of the ONV-IPS33108F Gigabit 10-port industrial Ethernet switch

Model	ONV-IPS33108F
Interface Characteristics
Fixed Port	810/100/1000Base-T RJ45 ports (Data) 21000Base-X uplink SFP fiber ports (Data) 2 sets V+, V- redundant DC power port (5P phoenix terminal)
Ethernet Port	Port 1-8 support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default not include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	20Gbps (non-blocking)
Forwarding Rate @64byte	14.88Mpps
MAC	8K
Buffer Memory	4M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link, Link/Act (Yellow)
Power Supply
Work Voltage	DC12-48V, 5 Pin industrial Phoenix terminal, support anti-reverse protection.
Power Consumption	Standby<8W, Full load<20W
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation TEMP/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	145134.547mm
Net /Gross Weight	0.9kg / 1.1kg

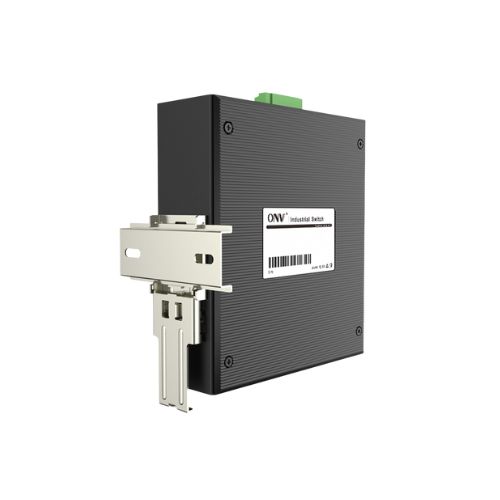

Installation	Desktop, 35mm DIN Rail
`Certification & Warranty`
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS33108F Gigabit 10-port industrial Ethernet switch

The ONV-IPS33108F Gigabit 10-port industrial Ethernet switch is a tough and highly effective 10-port industrial gigabit Ethernet switch designed to provide reliable, fast connectivity in challenging and important situations. It provides dependable data transfer over short and long distances using a combination of copper and fiber connections, which makes it the perfect choice for networks in smart cities, intelligent transportation, surveillance, and industrial automation. With 8 × Mbps RJ45 ports and 2 × Mbps SFP uplink connectors, this model allows Ethernet and fiber connections to be seamlessly integrated.

The ONV-IPS33108F is capable of providing both long-range and fast local data access. The switch is designed to withstand harsh operating circumstances and operates dependably at temperatures between -40°C and 75°C. It is ideal for installations in outside enclosures, industrial floors, or transportation systems because of its sturdy metal housing, which is resistant to shock, vibration, and dust. The switch has 6KV surge protection and ESD protection to increase longevity and guard against possible damage from lightning, voltage spikes, and static electricity. Even in settings where electricity is a concern, this guarantees steady operation. The switch can be mounted on walls or DIN rails, providing installation flexibility for a range of commercial and industrial applications.

Overall, the ONV-IPS33108F Gigabit 10-port industrial Ethernet switch is a strong and reliable industrial switch designed for high-performance networks where dependability and uptime are essential. Whether you are responsible for overseeing extensive automation systems or setting up infrastructure in difficult-to-reach places, this switch offers the durability, connectivity, and security you require to maintain uninterrupted operations.
