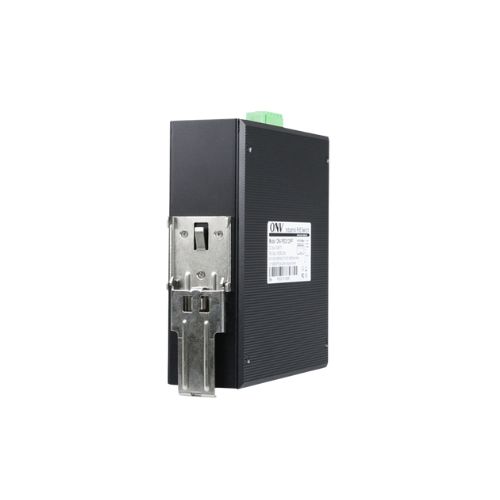

ONV-IPS33128PF Gigabit 12-port industrial PoE switch

Features of the ONV-IPS33128PF Gigabit 12-port industrial PoE switch

(Call for Price +88 018-94683430)

Ports: 10× Gigabit PoE + 2× Gigabit SFP
PoE Standard: IEEE 802.3af/at, up to 30W per port
Industrial Grade: -40°C to 75°C, rugged metal casing
Power Input: Dual DC for redundancy
Design: Fanless, DIN-rail mounting

Description
Reviews (0)

Description

Specification of the ONV-IPS33128PF Gigabit 12-port industrial PoE switch

Model	ONV-IPS33128PF
Interface Characteristics
Fixed Port	21000Base-X uplink SFP fiber ports (Data) 210/100/1000Base-T uplink RJ45 ports (Data) 8*10/100/1000Base-T PoE ports (Data/ Power) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-10 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	24Gbps (non-blocking)
Forwarding Rate@64byte	17.86Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frames	9.2K
LED Indicator	Power: PWR (Green), Network: Link, Link/Act (Yellow), PoE: PoE (Green)
PoE& Power Supply
PoE Port	Port 1- 8
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<8W, Full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension	145134.547mm
Net /Gross Weight	0.9kg/ 1.15kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS33128PF Gigabit 12-port industrial PoE switch

The ONV-IPS33128PF Gigabit 12-port industrial PoE switch is a sturdy 12-port PoE switch of industrial quality made to satisfy the exacting specifications of contemporary networking applications. This switch offers dependable power to connected devices and guarantees smooth data transfer with its 8 PoE-enabled Gigabit Ethernet ports, 2 extra Gigabit uplink RJ45 ports, and 2 Gigabit SFP fiber interfaces.

It is the perfect option for outdoor networking, surveillance systems, and industrial automation because of its robust metal construction, broad temperature resistance, and powerful lightning protection.

The ONV-IPS33128PF supports Mbps auto-sensing on its Ethernet ports and runs on IEEE 802.3 network protocols. Packet loss is eliminated by the store-and-forward switching architecture, which guarantees effective data delivery. With a forwarding rate of 17.86 Mbps and a switching capacity of 24 GB, this device provides exceptional performance for high-speed networking.

It is perfect for long-range networking applications since the two gigabit SFP ports allow for the use of either single-mode or multi-mode fiber modules, expanding transmission distances up to 120km.

High-quality networking and electrical safety requirements are ensured by the ONV-IPS33128PF’s compliance with CE, FCC, RoHS, and IEC industrial safety standards. It is a dependable long-term investment for mission-critical applications since it is shockproof, vibration-resistant, and constructed to endure extreme circumstances.

This switch offers a 5-year warranty and lifetime maintenance assistance to provide you peace of mind and guarantee optimal dependability and efficiency throughout time.

Overall, the ONV-IPS33128PF Gigabit 12-port industrial PoE switch is an excellent option for companies seeking an industrial PoE switch that is flexible, long-lasting, and high-performing. This switch guarantees smooth and continuous operation whether it is being used for high-speed data networking, industrial automation, or CCTV surveillance.

What is the price of the ONV-IPS33128PF Gigabit 12-port industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS33128PF Gigabit 12-port industrial PoE switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS33128PF Gigabit 12-port industrial PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.
