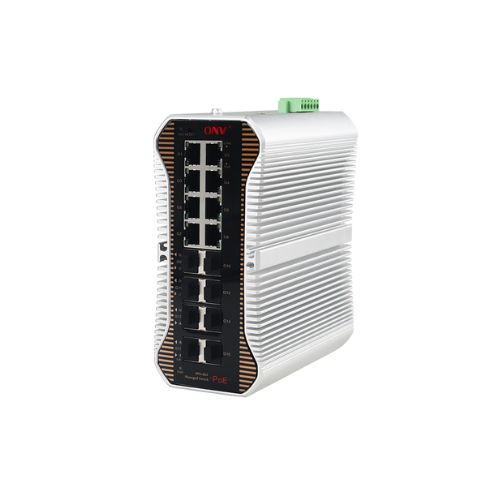

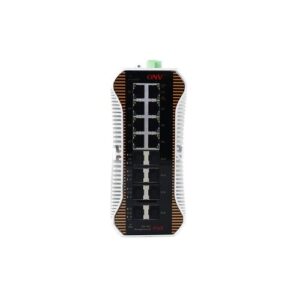

ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch

ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch

Features of the ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch

(Call for Price +88 018-94683430)

Ports: 8× Gigabit PoE + 8× Gigabit SFP
PoE Standard: IEEE 802.3af/at, up to 30W per port
Management: L2+ features, VLAN, QoS, ACL, static routing
Redundancy: STP/RSTP/MSTP, ERPS (<50ms recovery)
Industrial Grade: -40°C to 75°C, fanless, DIN-rail mounting

Description
Reviews (0)

Description

Specification of the ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch

Model	ONV-IPS53168PFM
Interface Characteristics
Fixed Port	Power failure alarm switch port (FAULT) 1Console RS232 port (115200, N, 8,1) 810/100/1000Base-T PoE ports (Data/ Power) 8100/1000Base-X uplink SFP fiber ports (Data) 2DC48-57V input ports (support reverse connection protection)
Ethernet Port	Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default matching optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full wire speed)
Switching Capacity	128Gbps (non-blocking)
Forwarding Rate@64byte	23.81Mpps
CPU	800MHz
DRAM	1G
FLASH	128M
MAC	16K
Buffer Memory	12M
Jumbo Frame	12K
LED Indicator	System: SYS (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-8
PoE Management	Port PoE real-time load power display, Port PoE output on/off, PoE work and time scheduling
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<13W, full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 6P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40~+80°C, 5%~95% RH non condensing
Dimension (LWH)	16615075mm
Net /Gross Weight	1.8kg/ 2.1kg

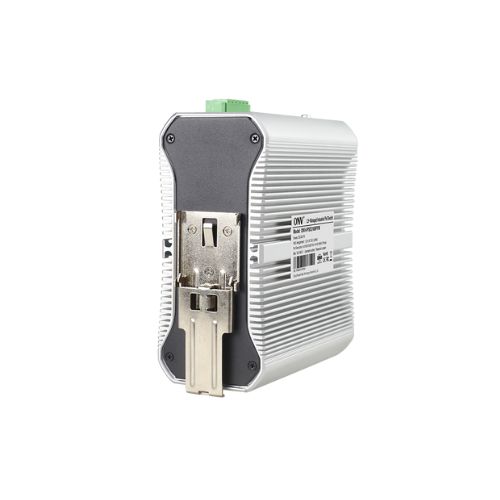

Installation	Desktop, 35mm DIN Rail
Certification& Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view IEEE802.3x flow control (Full duplex), Port exception protection mechanism Limit the rate of incoming and outgoing packet traffic, with mini granularity of 16Kbps and max of 1Gbps
L3 Feature	ARP protocol max 1024 entries Static routing/ default routing max 128 entries L2+ network management, IPV4/IPV6 dual stack management L3 routing and forwarding, and communication between different network segments and different VLAN
VLAN	VLAN based on MAC, VLAN based on the protocol Port configuration of Access, Trunk, Hybrid. GVRP VLAN protocol (4K) VLAN based on port, IEEE802.1q, Voice VLAN, QinQ configuration
Port Aggregation	LACP, Static aggregation, Max 8 aggregation groups and max 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	ERPS, Recovery time less than 20ms, ITU-T G.8032
Multicast	Multicast VLAN, User quick log out, MVR (Multicast VLAN Registration) MLD Snooping, IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring	Bidirectional traffic mirroring for basic ports one-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based Rate Limiting, Flow-based redirection Queue Scheduling Algorithm (SP, WRR, SP+WRR) Flow-based Packet Filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority Mark/ Remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Port isolation, ARP message speed limit function Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole IP Source Guard function, AAA&RADIUS certification Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	Link Layer Discovery Protocol(LLDP) One click restore, Web network management (https) ONV NMS platform cluster management (LLDP+SNMP) Cable status check, Viewing CPU Instant Utilization Status Ping detection, System work log, NTP clock, SNMP V1/V2/V3 Console/ AUX Modem/ Telnet/ CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch

The ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch is a high-performance 16-port Gigabit PoE switch made for industrial settings that need superior network security, smooth data transfer, and effective power distribution. This L2+ controlled switch is perfect for complicated network infrastructures since it is designed to be stable and dependable and offers IPV4/IPV6 dual-stack administration, high-speed optical connectivity, and sophisticated VLAN and QoS capabilities. The ONV-IPS53168PFM effectively transmits data and power over a single Ethernet cable thanks to its 8× 10/100/1000Base-T PoE ports. VoIP phones, wireless access points, and IP cameras may all be connected seamlessly thanks to each port’s 30W maximum power and support for IEEE 802.3af/at standards. For optimal energy utilization, the PoE management system enables scheduling, on/off control, and real-time power monitoring.

The switch’s 8× 100/1000Base-X SFP uplink fiber ports guarantee fast data transfer over long distances, which makes it ideal for extensive installations in enterprise networking, industrial automation, and urban surveillance. Its ring network compatibility and extensible 2.5G optical module further increase its adaptability for future network growth. Its user-friendly web-based interface (HTTPS), console access, and support for the ONV NMS platform make network administration and monitoring easier. In addition to minimizing downtime, features including LLDP, VLAN segmentation, ACL packet filtering, and ERPS quick network recovery (less than 20 ms) maximize network efficiency.

Overall, the ONV-IPS53168PFM Gigabit 16-port L2+ managed industrial PoE switch is the ideal option for companies and industries looking for a safe, effective, and future-proof networking solution because it comes with a 5-year guarantee and lifetime maintenance. Use this powerful industrial PoE switch to upgrade your network right now!

What is the price of the ONV-IPS33168PFM-4GF Gigabit 16-port L2+ managed industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS53168PFM is (Call for Price +88 018-94683430). You can buy the ONV-IPS53168PFM from us at the best price. You can either purchase it through our website or directly visit our office.
