ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch

ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch

Features of the ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch

Description
Reviews (0)

Description

Specification of the ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch

Model	ONV-IPS56128PFM
Interface Characteristics
Fixed Port	1Console RS232 port (115200, N, 8,1) Power failure alarm switch port (FAULT) 41/10G uplink SFP+ fiber ports (Data) 810/100/1000Base-T PoE ports (Data/ Power) 2DC48-57V input ports (support reverse connection protection)
Ethernet Port	Port 1-8 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e/6 or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical modules (optional order single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Fiber Port Expansion	Turbo overclocking 2.5G optical module expansion and ring network
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 850nm/ 0-300m(10G), Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full sire speed)
Switching Capacity	128Gbps (non-blocking)
Forwarding Rate@64byte	71.42Mpps
CPU	800MHz
DRAM	1G
FLASH	128M
MAC	16K
Buffer Memory	12M
Jumbo Frame	12K
LED Indicator	System: SYS (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-8
PoE Management	Port PoE real-time load power display, Port PoE output on/off, PoE work and time scheduling
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<13W, full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 6P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40~+80°C, 5%~95% RH non condensing
Dimension (LWH)	16615075mm
Net /Gross Weight	1.8kg/ 2.1kg

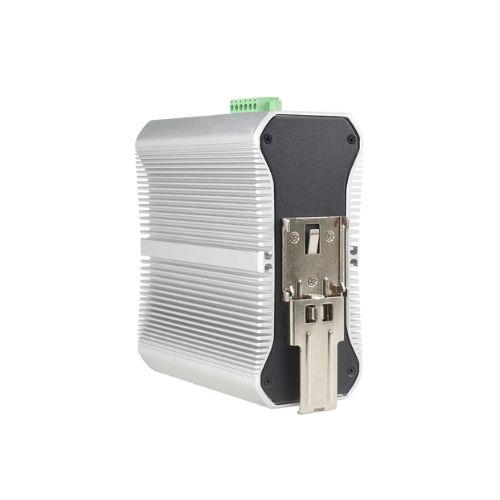

Installation	Desktop, 35mm DIN Rail
Certification& Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80-1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Port exception protection mechanism Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view Limit the rate of incoming and outgoing packet traffic, with mini granularity of 16Kbps and max of 1Gbps
L3 Feature	ARP protocol max 1024 entries Static route, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3 L2+ network management function, IPV4/ IPV6 dual-stack management
VLAN	Port configuration of Access, Trunk, Hybrid, IEEE 802.1q Voice VLAN, GVRP VLAN protocol, Port-based VLAN (4K) Protocol-based VLAN, MAC address-based VLAN, QinQ configuration
Port Aggregation	LACP, Static aggregation, Max 6 aggregation groups and max 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	ERPS, Recovery time less than 20ms, ITU-T G.8032
Multicast	MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring	Bidirectional traffic mirroring for basic ports Supports 1-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based rate limiting, Flow-based redirection Queue scheduling algorithm (SP, WRR, SP+WRR) Flow-based packet filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole IP Source Guard function, AAA& RADIUS certification Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function Port isolation, IP source address protection, ARP message speed limit function
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	Web network management (https) Link Layer Discovery Protocol (LLDP) Viewing CPU Instant Utilization Status NTP clock, One click restore, SNMP V1/V2/V3 Cable status check, Ping detection, System work log ONV NMS platform cluster management (LLDP+SNMP) Console/ AUX Modem/ Telnet/ CLI command line configuration FTP, TFTP, Xmodem, SFTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch

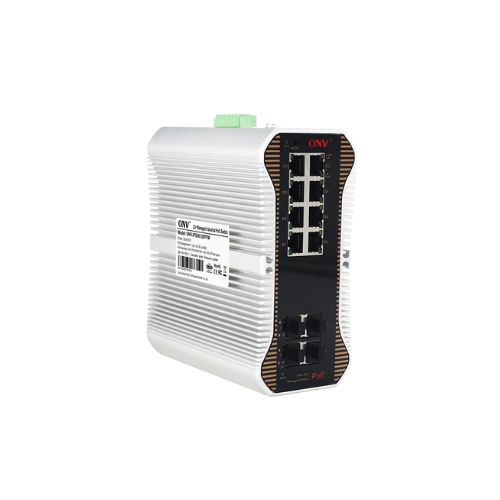

The ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch is an industrial PoE switch with strong performance intended for demanding network settings. This switch is a great option for enterprise networking, industrial automation, and surveillance systems since it has eight gigabit PoE ports and four 10G SFP+ uplink fiber connectors, which provide exceptional data throughput and power efficiency.

Powerful Networking Capabilities

Advanced networking protocols such as IEEE 802.3 standards, ARP protocol, and IPv4/IPv6 dual-stack administration are supported by this L2+ controlled switch. Its 71.42 Mpps forwarding rate improves network stability and efficiency, and its Gbps switching capacity guarantees a non-blocking, fast data transfer experience.

Reliable PoE Performance

The ONV-IPS56128PFM effectively transmits power and data via a single Ethernet connection thanks to its eight PoE-enabled ports. Every PoE port complies with IEEE 802.3af/at standards and can handle up to 30W. For optimal energy use, PoE management capabilities include scheduling, remote on/off control, and real-time power monitoring.

Advanced Fiber Connectivity

This switch has four 1/10G SFP+ uplink ports, providing a variety of fiber optic connectivity choices. Stable long-range data transmission is ensured by its support for single-mode and multi-mode fiber modules with transmission ranges of 0 to 120 km. Networking capabilities are further improved by the 2.5G module expansion with turbo overclocking.

Industrial-Grade Durability

The ONV-IPS56128PFM is designed to withstand tough conditions and has an IP40-rated metal casing for durability. It can function at temperatures ranging from -40°C to +75°C. It is perfect for outdoor and industrial applications since it has anti-interference shielding, surge resistance, and 6KV lightning protection.

Flexible Power Supply Options

This switch has anti-reverse protection and can handle DC 48-57V inputs. To accommodate different power requirements, it can be combined with an optional 48V/120W or 48V/240W industrial power supply.

Overall, the ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch is designed to be dependable and effective in enterprise networking, smart city deployments, industrial automation, and CCTV surveillance. For any industrial-grade networking infrastructure, this switch is a future-proof investment with a 5-year guarantee and lifetime maintenance support.

What is the price of the ONV-IPS56128PFM 10G uplink 12-port L2+ managed industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS56128PFM is (Call for Price +88 018-94683430). You can buy the ONV-IPS56128PFM from us at the best price. You can either purchase it through our website or directly visit our office.
