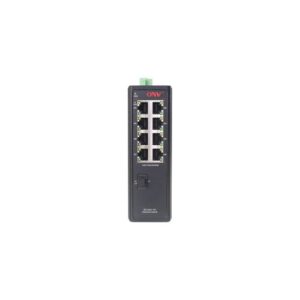

ONV-IPS57008F 2.5G 9-port industrial Ethernet switch

Features of the ONV-IPS57008F 2.5G 9-port industrial Ethernet switch

(Call for Price +88 018-94683430)

8× 2.5G RJ45 + 1× 10G SFP port
Fanless, IP40-rated metal case
Dual 12–48V DC power input

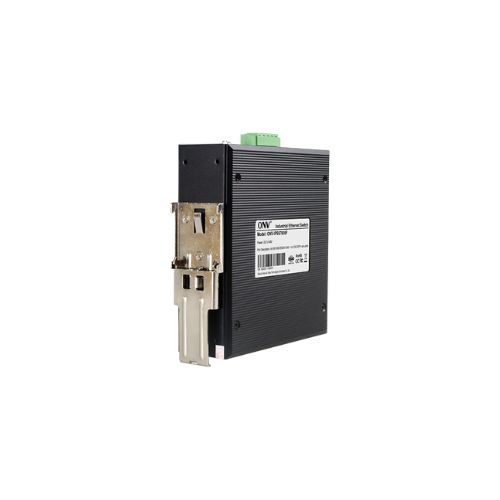

DIN rail mount, industrial design
Unmanaged, full-speed switching

Description
Reviews (0)

Description

Specification of the ONV-IPS57008F 2.5G 9-port industrial Ethernet switch

Model	ONV-IPS57008F
Interface Characteristics
Fixed Port	11/2.5/10G uplink SFP+ fiber port (Data) 810/100/1000/2500Base-T RJ45 ports (Data) 2 sets V+, V- redundant DC power ports (5P Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 2500BASE-T: Cat6A or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, 2.5/10G/ 0-300m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3bz 2.5GBase-T, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	60Gbps
Forwarding Rate @64byte	44.6Mpps
MAC	8K
Buffer Memory	8.1M
Jumbo Frame	12K
LED Indicator	Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green)
Power Supply
Total Power /Input Voltage	10W/ DC12-48V
Power Consumption	Standby<3W, Full load<10W
Interface	DC12-48V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 24V/24W industrial power supply
Physical Parameter
Operation TEMP/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage TEMP/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	145134.547mm
Net /Gross Weight	0.8kg/ 1.0kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class B IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable:±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field):100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS57008F 2.5G 9-port industrial Ethernet switch

The ONV-IPS57008F 2.5G 9-port industrial Ethernet switch is a cutting-edge 2.5G industrial Ethernet switch made for mission-critical settings that require fast data transfer. With nine ports in all, as well as support for fiber uplink and 2.5G Ethernet, it offers exceptional performance for advanced surveillance networks, intelligent transportation, and industrial automation. This switch, which is made of durable materials and has sophisticated protection, performs well in harsh environments where speed and dependability are crucial. Seven fast 2.5G RJ45 ports on the ONV-IPS57008F provide for quick data transfer for applications requiring a lot of bandwidth.

Long-distance communication is supported by the two SFP fiber uplink ports, which makes it perfect for both local and distant network parts. This durable switch is ideal for outdoor systems, roadside cabinets, factories, and more since it functions flawlessly in temperatures ranging from -40°C to 75°C. Vibration, dust, and corrosion resistance are guaranteed by the sturdy metal case. Just plug it in and turn it on; no configuration is required. Because it is an unmanaged switch, the ONV-IPS57008F reduces setup time and streamlines deployment in hectic industrial settings. This switch is easy to integrate into existing control panels, cabinets, or industrial enclosures since it is designed for maximum installation flexibility and supports both DIN-rail and wall mounting.

Overall, the ONV-IPS57008F 2.5G 9-port industrial Ethernet switch is a strong, dependable backbone for next-generation industrial networks, not just a switch. This switch is a wise investment for sectors that require speed, stability, and ease of use because of its lightning-fast 2.5G ports, reliable fiber uplink capability, and durable design that is ready for the real world.
