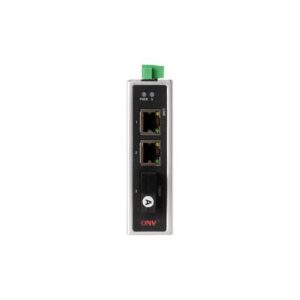

ONV-IPS1032F 10/100M 3-port industrial Ethernet switch
ONV-IPS1032F 10/100M 3-port industrial Ethernet switch

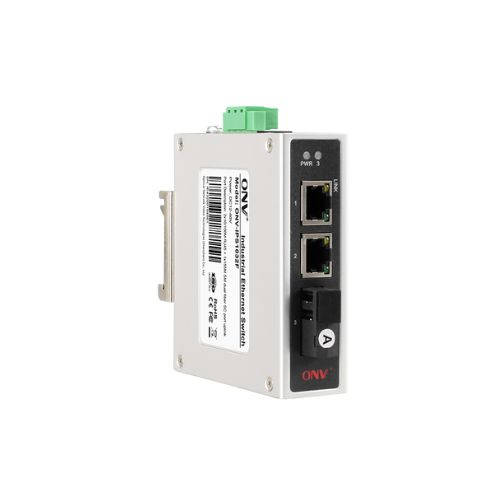

10/100M 3-port industrial Ethernet switch - Image 3

10/100M 3-port industrial Ethernet switch

Features of the ONV-IPS1032F 10/100M 3-port industrial Ethernet switch

(Call for Price +88 018-94683430)

  • Ports: 2× 10/100M RJ45 + 1× fiber port
  • PoE: 2× PoE ports (IEEE 802.3af/at)
  • Design: IP30 aluminum, fanless
  • Power: Dual 12–48V DC input

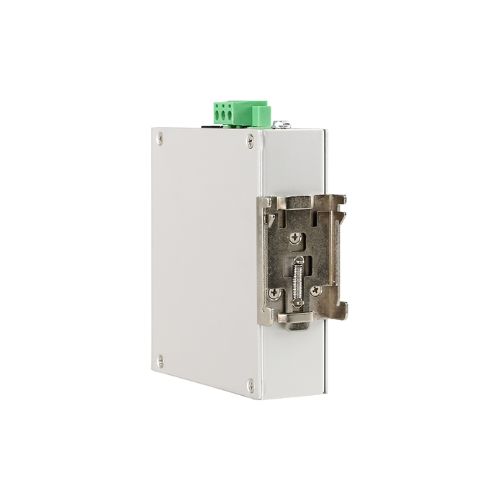

  • Mounting: DIN rail
  • Use: Industrial environments

Description

Specification of the 10/100M 3-port industrial Ethernet switch

Model ONV-IPS1032F ONV-IPS1032F-A
ONV-IPS1032F-B
Interface Characteristics
Fixed Port
1*155M uplink SC fiber port (Data)
2*10/100Base-TX RJ45 ports (Data)
Ethernet Port
Port 1-2 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Optical Fiber Port
Default optical module is single-mode dual fiber 20km, SC port
Optical Cable/ Distance
Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode
Store and Forward (Full Wire Speed)
Switching Capacity
1.0Gbps (non-blocking)
Forwarding Rate@64byte 0.45Mpps
MAC 1K
Buffer Memory 512K
Jumbo Frame 2048bytes
LED Indicator
Power: PWR (Green), Network: Link (Yellow), Fiber port: 3 (Green)
Power Supply
Power Consumption
Standby<3W, Full load<5W
Input Voltage/ Interface
DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply
No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity
-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity
-40~+85°C, 5%~95% RH Non condensing
Dimension (L*W*H) 98*88*30mm
Net /Gross Weight
0.25kg/ 0.35kg
Installation
Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection
Protection level: IP30
Lightning protection: 6KV 8/20us
IEC61000-4-3 (RS):10V/m (80~1000MHz)
FCC Part 15/CISPR22 (EN55022): Class A
IEC61000-6-2 (Common Industrial Standard)
IEC61000-4-9 (Pulsed magnet field): 1000A/m
IEC61000-4-10 (Damped oscillation): 30A/m 1MHz
IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV
IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV
IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s
IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz)
IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties
IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification
CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty
5 years, lifelong maintenance.

ONV-IPS1032F 10/100M 3-port industrial Ethernet switch

ONV-IPS1032F 10/100M 3-port industrial Ethernet switch



The ONV-IPS1032F 10/100M 3-port industrial Ethernet switch is a small, effective 3-port industrial Ethernet switch made for dependable networking in settings that are crucial to the goal. This switch guarantees steady communication in factories, outdoor installations, automation systems, and other industrial applications, thanks to its sturdy metal casing, broad temperature tolerance, and excellent surge protection. The ONV-IPS1032F operates flawlessly even when subjected to dust, high temperatures, or power surges. It can operate in temperatures between -40°C and +75°C and has an IP40-rated metal casing with lightning protection up to 6kV. This guarantees continuous operation even in isolated, open, or movable installations such as energy management facilities, outdoor control cabinets, and traffic surveillance systems. The ONV-IPS1032F has integrated reverse polarity protection and a Phoenix 5-pin terminal for safe DC power input. Its excellent thermal design and low power consumption allow it to function dependably at full load without overheating or necessitating additional cooling devices.





Overall, the ONV-IPS1032F 10/100M 3-port industrial Ethernet switch is the preferred option for people looking for dependable, long-range, and interference-proof networking in challenging industrial settings. It is a wise investment for your industrial networking infrastructure because of its fiber uplink, robust construction, and user-friendliness.



What is the price of the ONV-IPS1032F 10/100M 3-port industrial Ethernet switch in Bangladesh?

The latest price of the ONV-IPS1032F 10/100M 3-port industrial Ethernet switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS1032F 10/100M 3-port industrial Ethernet switch from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.

Contact Us: +88 01894-683430
