10/100M 3-port industrial PoE switch

Features of the 10/100M 3-port industrial PoE switch

(Call for Price +88 018-94683430)

3 PoE+ Ports (30W each) – Powers IP cameras & APs
1 SC Fiber Uplink (100M) – Up to 2km transmission
Industrial-Grade – Works in -40°C to +75°C
6KV Lightning Protection – Surge-resistant design
Dual DC Power (48–55V) – Ensures reliable operation

Description
Reviews (0)

Description

Specification of the 10/100M 3-port industrial PoE switch

Model	ONV-IPS31032PF \| ONV-IPS31032PF-M \| ONV-IPS31032PF-A \| ONV-IPS31032PF-B
Fixed Port	1155M uplink SC fiber port (Data) 210/100Base-TX PoE ports (Data/ Power) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-2 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Optical module is single-mode dual fiber 20km, SC port. (Optional single-mode single fiber and multi-mode dual fiber optical module)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-500m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 100Base-FX, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	1.0Gbps (non-blocking)
Forwarding Rate @64byte	0.43Mpps
MAC	1K
Buffer Memory	512K
Jumbo Frame	1536bytes
LED Indicator	Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green)
PoE& Power Supply
PoE Port	Port 1-2
Power Supply Pin	1/2 (+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<3W, Full load af<36W, at<60W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/36W or 48V/60W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	11910030mm
Net /Gross Weight	0.4kg/ 0.5kg

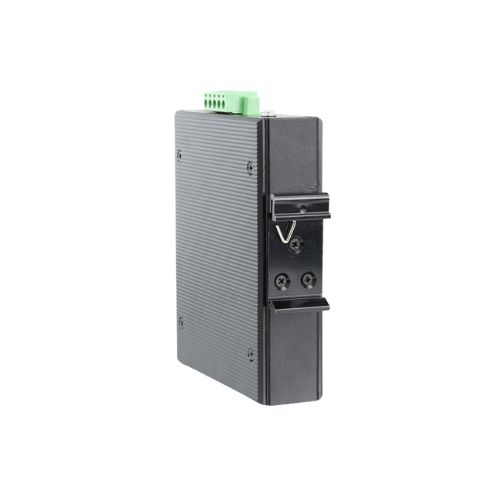

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V,1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

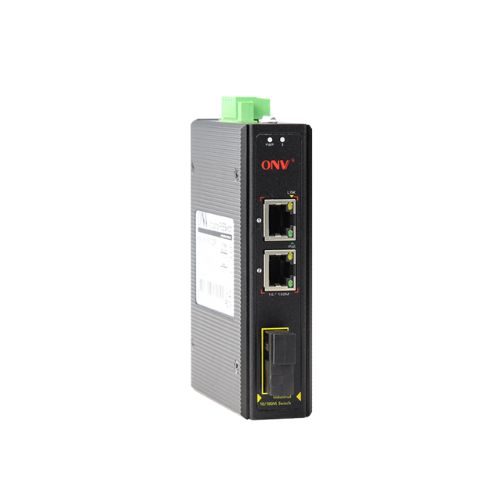

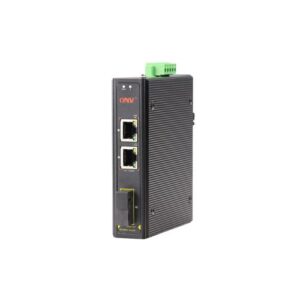

ONV-IPS31032PF 10/100M 3-port industrial PoE switch

The ONV-IPS31032PF 10/100M 3-port industrial PoE switch is a high-performance industrial PoE switch that ensures smooth power and data transfer in harsh situations. This switch offers effective networking solutions for outdoor applications, industrial automation, and security surveillance. It has three 10/100M PoE+ ports and one 100M SC fiber uplink connection. Three PoE+ (IEEE 802.3af/at) ports on this switch can supply up to 30W of power each, which can be used to power IP cameras, wireless access points, and Internet of Things devices. It effectively supports numerous devices without the need for additional power sources because of its 90W overall power budget. With a 1Gbps switching capacity and support for store-and-forward switching, the ONV-IPS31032PF guarantees steady and seamless network operation. With a 2km connectivity range, the SC fiber uplink port is perfect for long-distance transmission in industrial settings.

The switch is made to withstand tough environments; it can function in temperatures ranging from -40°C to +75°C and is protected from dust and moisture by its IP40-rated housing. In order to ensure steady and secure operation in outdoor settings, it also has 6KV lightning protection. With its dual DC power input (DC 48–55 V), DIN rail mounting, and low power consumption, this switch provides a consistent and dependable power source. It complies with industry standards thanks to its CCC, CE, FCC, and RoHS certifications.

Overall, the ONV-IPS31032PF 10/100M 3-port industrial PoE switch is a strong and affordable networking option for companies needing industrial durability, PoE power delivery, and fast data transfer.

What is the price of the 10/100M 3-port industrial PoE switch in Bangladesh?

The latest price of the ONV-IPS31032PF 10/100M 3-port industrial PoE switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS31032PF 10/100M 3-port industrial PoE switch from us at the best price. You can either purchase it through our website or directly visit our office.

Our Office Address: 51, Kazi Villa, 3rd Floor, Suvastu Arcade ICT Bhaban Goli, New Elephant Road, Dhaka-1205, Bangladesh.

Contact Us: +88 01894-683430
