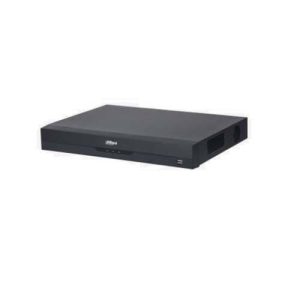

Dahua XVR4232AN-I 32 Channel XVR

Original price was: ৳ 28,000.00.Current price is: ৳ 23,100.00.

Key features of the Dahua XVR4232AN-I 32 Channel XVR

H.265+/H.265 dual-stream video compression
Supports 8-channel AI coding.
Supports HDCVI/AHD/TVI/CVBS/IP video inputs.
Max 16-channel IP camera inputs, each up to 6 MP; max 128 Mbps incoming bandwidth.
Up to 16 channels of video stream (analog channel) in SMD Plus
Long transmission distance over coax cable.

Description
Reviews (0)

Description

Specification of the Dahua XVR4232AN-I 32 Channel XVR

System

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web; Local GUI

SMD Plus

SMD Plus by Recorder

16 channels:

Secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input

32 BNC ports, CVI access by default, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input

HDCVI 1080P@ 25/30 fps, 720P@ 25/30 fps

AHD 1080P at 25/30 fps, 720P at 25/30 fps

TVI 1080P@ 25/30 fps, 720P@ 25/30 fps

IP Camera Input

Up to 16 channels of IPC access

16 channels (analog channels are converted to IP channels)

incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps; and outgoing bandwidth: 128 Mbps

Encoding Capacity

Main Stream:

the 1st channel, 1080N/720P (1 fps–25/30 fps), others

1080N/720P (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps)

Sub-steram: CIF (1 fps–7 fps)

Dual-stream

Yes

Video Bit Rate

32 kbps–6144 kbps per channel

Audio Sampling

8 kHz, 16 bit

Audio Bit Rate

64 kbps

Video Output

1 HDMI, 1 VGA, 1 TV
VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display

1/4/8/9/16/25/36

Third-party Camera Access

Onvif, Panasonic, Sony, Axis, Arecont, Pelco, Canon, and Samsung

Compression Standard

Video Compression

AI Coding; H.265+; H.265; H.264+; H.264

Audio Compression

G.711A; G.711u; PCM

Network

Network Protocol

HTTP; HTTPS; TCP / IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P

Mobile Phone Access

iOS, Android

Interoperability

ONVIF 21.06, CGI

Browser

Chrome, IE9 or above, Firefox

Network Mode

Single-address mode

Recording Playback

Record Mode

General, motion detection; intelligent; alarm

Recording Playback

1/4/9/16

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag playback, and smart playback

Storage

Disk Group

Yes

Alarm

General Alarm

Motion detection, video loss, and tampering

Anomaly Alarm

No disk, storage error, low space, offline, IP conflict, MAC conflict

Alarm Linkage

Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

Ports

TV Output

1 channel

Audio Input

1-channel RCA (external)
32-channel BNC (coaxial audio)

Audio Output

1, RCA

Two-way Talk

Yes (share the same audio input with the first channel)

HDD Interface

2 SATA ports, up to 16 TB; the maximum HDD capacity varies with environment temperature

RS-485

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

VGA

Network Port

1 (10/100/1000 Mbps Ethernet port, RJ-45)

General

Power Supply

12 VDC, 4 A

Power Consumption

Lower than 12 W (without HDD)

Net Weight

1.92 kg (4.23 lb)

Gross Weight

3.09 kg (6.81 lb)

Product Dimensions

1U, 375.0 mm × 289.4 mm × 53.0 mm (14.76″ × 11.40″ × 2.09″ ) (W × D × H)

Packaging Dimensions

433.0 mm × 141.0 mm × 366.0 mm (17.05″ × 5.55″ × 14.41″) (W × D × H)

Operating Temperature

-10 °C to +55 °C (14 °F to +131 °F)

Operating Humidity

0%–90% (RH)

Installation

Desktop

Certifications

CE: CE-LVD: EN 60950-1/IEC 60950-1
CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
FCC: Part 15 Subpart B

Details of the Dahua XVR4232AN-I 32 Channel XVR

The Dahua XVR4232AN-I 32 Channel XVR is a high-quality and effective surveillance device, providing high-quality video recording and easy access to recorded footage. The Dahua 32-Channel XVR supports a maximum resolution of 1080p, ensuring that you can capture clear and detailed video footage. It offers comprehensive playback options, including the ability to instantly playback, general playback, event playback, tag playback, and smart playback (motion detection). This XVR provides video loss and a tempering alarm.

It offers a maximum of 16-channel IP camera inputs, each up to 6 MP; with a maximum of 128 Mbps incoming bandwidth. It is perfect for a wide range of civil applications, such as retail stores, home protection, and so on.

Overall, the Dahua XVR4232AN-I 32 Channel XVR provides high performance at attractive costs. It’s a great solution for users facing budget constraints who both require quality and performance.

What is the price of the Dahua XVR4232AN-I 32 Channel XVR in Bangladesh?

The latest price of the Dahua XVR4232AN-I 32 Channel XVR is 23,100 BDT. You can buy the Dahua 32-channel XVR from us at the best price. You can either purchase it through our website or directly visit our office.
