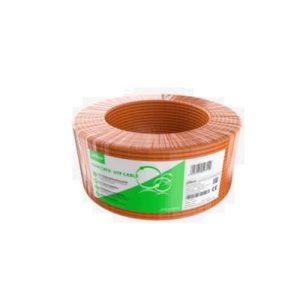

DH-PFM922I-6UN-C-100M Cable

DH-PFM922I-6UN-C-100M Cable

Original price was: ৳ 2,400.00.Current price is: ৳ 2,350.00.

  • DH-PFM922I-6UN-C-100M Cable
  • 305.0 m (1000 ft)/carton UTP CAT6, power over Ethernet
  • compatible with one cable

Description

DH-PFM922I-6UN-C-100M Cable

Conductor
MaterialCCA(Copper content 22%–31%)
Diameter0.57 mm ± 0.01 mm
American Wire Gauge23AWG
Insulation
MaterialHDPE
Min. Average Thickness0.21 mm
Diameter1.02 mm ± 0.06 mm
Color (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Separator
MaterialPE
SpecificationTranslucent 4.5 × 0.4 mm
Rip Cord
MaterialPolyester
Specification500D
Sheath
MaterialPVC
Min. Average Thickness0.5 mm
Diameter6.5 mm ± 0.3 mm
ColorOrange
Electrical
Max. DC Resistance of a Single Conductor11.5Ω/100 m
Min. Insulation Resistance5000MΩ·km
Max. DC Resistance Unbalance2% (pair intra), 4% (pairs inter)
Dielectric StrengthNo breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance100 ± 15Ω
Near End Cross Talk≥39.30 dB/100 m@250 MHz
Max. Attenuation34.8 dB/100 m@250 MHz
Return Loss≥17.3 dB/100 m@250 MHz
Mechanical
Tensile StrengthSheath≥13.5 MPa, insulation≥16 MPa
Elongation at BreakSheath≥150%, insulation≥300%
Installation Bending Radius>8 times of outer cable diameter
Conductor Elongation at Break≥10%
Environmental
Shrinkage of Insulation≤5%
Color Migration Resistance of InsulationNo migration
Sheath Tensile Strength and Elongation at Break after Aging≥12.5 MPa, ≥100%
Low Temperature Bending TestNo cracking after the test
Heat Shock TestNo cracking after the test
Operation Temperature–20°C to +60°C (–4°F to 140°F)
Installation Temperature0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)
Security
Vertical Fire Propagation TestComply with IEC 60332-1-2
Packaging
Length305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Packaging Dimensions390.0 mm x 390.0 mm x 247.0 mm (15.37″x15.37″x9.73″) (L × W × H)
Packaging Method305.0 m (1000.66 ft) a carton, one protection carton with 2 cartons inside
Net Weight≥9.2 kg (20.28 lb)
Gross Weight≥10.2 kg(22.49 lb)
Executive Standard
Executive StandardQ/DXJ 067-2019
Certification
CertificationCPR Eca
DH-PFM922I-6UN-C-100M Cable

What is the Price of DH-PFM922I-6UN-C-100M Cable in Bangladesh in 2023?

The latest price of DH-PFM922I-6UN-C-100M Cable is 2350 BDT. You can buy Dahua from us. To buy this product, You can buy it through our website or you can directly visit our office.
