ONV-IPS3021PF Gigabit 2-port industrial PoE switch

Gigabit 2-port industrial PoE switch

Features of the ONV-IPS3021PF Gigabit 2-port industrial PoE switch

(Call for Price +88 018-94683430)

Ports: 1× Gigabit RJ45 + 1× SC Fiber
PoE Standard: IEEE 802.3af/at, up to 30W
Industrial Grade: Rugged metal casing, DIN-rail mounting
Power Input: Dual DC 48-57V
Design: Reliable for industrial environments

Description
Reviews (0)

Description

Specification of the Gigabit 2-port industrial PoE switch

Model

ONV-IPS3021PF

ONV-IPS3021PF-A

ONV-IPS3021PF-B

Interface Characteristics
Fixed Port	11000Base-X uplink SC fiber port (Data) 110/100/1000Base-T PoE ports (Data/ Power)
Ethernet Port	Port 1 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP ( ≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Optical module is single-mode dual fiber 20km, SC port
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	2.97Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216 bytes
LED Indicator	Power: PWR (Green), PoE: PoE (Green), Fiber port: G2(Green), Network: Link (Yellow)
PoE & Power Supply
PoE Port	Port 1
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<1W, Full load af<15, at<30W
Input Voltage/ Interface	DC44-56V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 48V/36W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg

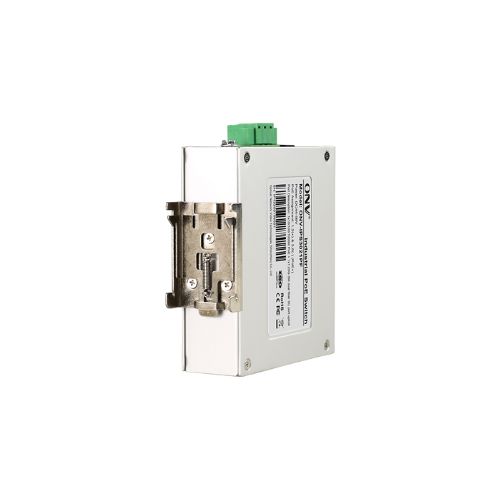

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

Gigabit 2-port industrial PoE switch

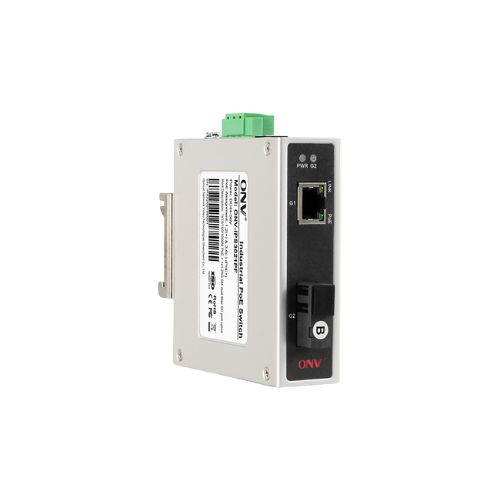

The ONV-IPS3021PF Gigabit 2-port industrial PoE switch is a small, powerful 2-port industrial PoE switch that is made to provide dependable network connectivity even under challenging conditions. This switch guarantees smooth connection in industrial environments with its 10/100/1000Base-T PoE port for data and power transmission and its 1000Base-X SFP fiber port for long-distance data transfer. With its auto-sensing gigabit Ethernet ports, MDI/MDI-X auto-adaptation, and full/half-duplex operation, it is a very effective network deployment tool. For reliable and fast data transfer, the switch has a switching capability of 12Gbps, a forwarding rate of 1.49Mpps, and supports a 2K MAC table with 2M buffer memory.

The ONV-IPS3021PF is perfect for IP cameras, wireless access points, and industrial IoT devices because it complies with IEEE 802.3af/at for Power over Ethernet (PoE) and provides power via its single PoE connector. It guarantees safe and effective operation with an input voltage of DC 48-57V and anti-reverse protection.

With a robust IP40-rated enclosure for enhanced lightning and surge protection (6KV), this industrial PoE switch is built to withstand harsh environments and functions flawlessly in temperatures ranging from -40°C to +75°C. It is appropriate for smart city infrastructure, outdoor monitoring, and industrial automation because it supports DIN rail and desktop mounting.

Overall, the ONV-IPS3021PF Gigabit 2-port industrial PoE switch is an affordable and dependable option for businesses needing secure, fast, and long-distance network connection, coming with a 5-year guarantee and lifetime maintenance.
