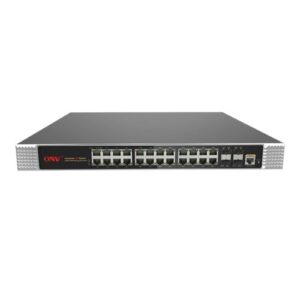

Gigabit 28-port L2+ managed industrial PoE switch

Description

Specification of the Gigabit 28-port L2+ managed industrial PoE switch

Model	ONV-IPS33028PFM	ONV-IPS33028PFM-at
Interface Characteristics
Fixed Port	2*AC100-240V input ports 1*RS232 Console port (115200, N, 8,1) 24*10/100/1000Base-T PoE ports (Data/ Power) 4*100/1000Base-X uplink SFP fiber ports (Data) 1 set DC48-57V input ports (support reverse connection protection)
Ethernet Port	Port 1-24 cab support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical modules (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	56Gbps (non-blocking)
Forwarding Rate@64byte	41.66Mpps
CPU	500M
DRAM	1G
FLASH	256M
MAC	8K
Buffer Memory	4.1M
LED Indicator	Power: PWR (Yellow), System: SYS (Yellow), Fiber port: L/A (Green), PoE: PoE (Green), Network: Link/ Act (Yellow)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-24 IEEE 802.3 af/at
PoE Management	Port PoE output on/off, Port PoE working status display
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR/ Input Voltage	400W/ (AC100-240V)	600W/ (AC100-240V)
Power Consumption	Standby<18W, Full Load<380W	Standby<22W, Full Load<600W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 5.0A	Built-in power supply, AC100~240V 50-60Hz, 6.6A
Power Input Port	Alarm switch port, 2*AC power input ports, 2*DC48-57V input ports Dual input power port: AC power supply priority to support anti-reverse connection protection, and automatically switches to DC connection when power fails.
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (L*W*H)	440*378*44.5mm
Net /Gross Weight	5.4kg/ 6.2kg	6.2kg/ 7.0kg
Installation	Desktop, 1U/19” cabinet
Certification & Warranty
Lightning Protection	IEC61000-4-3(RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m, 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV Protection level: IP30, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, Data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m,1000A/m, 1-3s IEC61000-4-5( Surge): Power cable: CM±4kV/DM±2kV, Data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	IEEE802.3x flow control (Full duplex) Broadcast storm suppression based on port rate Port real-time traffic management (Flow Interval) Limit the rate of packet traffic on incoming and outgoing ports, mini granularity is 16Kbps and max is 1Gbps
L3 Feature	IPV4 static route/ default route
VLAN	Port configuration of Access, Trunk, Hybrid IEEE802.1q, Port-based VLAN (4K), VLAN based on the protocol
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 14 aggregation groups and 8 ports per group
Spanning Tree	RSTP (IEEE 802.1w)
ERPS	ERPSv2
Multicast	Multicast VLAN, User quick exit mechanism, IGMP Snooping v1/v2
Port Mirroring	Bidirectional data mirroring based on port
QoS	802.1p/ DSCP priority mapping, Diff-Serv QoS Queue scheduling algorithm (SP, WRR, WFQ) Flow-based rate limiting, Flow-based packet filtering Flow-based based redirection, 8*Output queues of each port
ACL	Port-based and VLAN-delivered ACL The L2-L4 packet filtering function can match the first 80 bytes of the packet and provide information based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range to define the ACL.
Security	Port isolation, Port broadcast message suppression Port-based and Mac-based IEEE802.1X certification User hierarchical management and password protection AAA&RADIUS certification, IP source address protection
DHCP	DHCP Client, DHCP Snooping
Management	Web network management (https), Ping detection ONV-NMS platform cluster management (LLDP+SNMP) One click recovery, View CPU real-time utilization status Link Layer Discovery Protocol (LLDP), System work log Console/ Telnet and CLI configuration, SNMP V1/V2/V3 NTP clock, HTTP file upload and download management
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

Gigabit 28-port L2+ managed industrial PoE switch

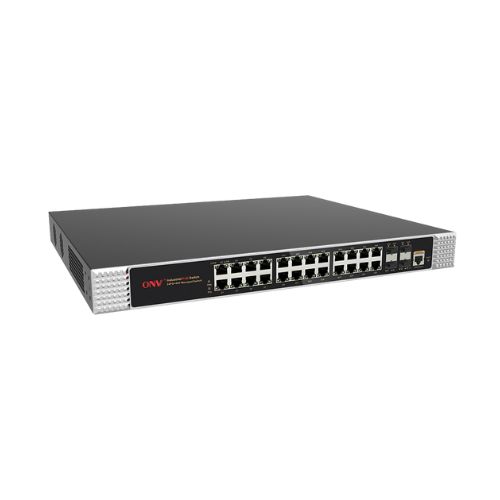

The ONV-IPS33028PFM Gigabit 28-port L2+ managed industrial PoE switch is a robust L2+ managed industrial PoE switch made for high-performance surveillance systems, industrial automation, and extensive networking. With its 28 ports—24 of which are high-speed Gigabit PoE ports and four of which are Gigabit SFP uplink ports—this switch guarantees reliable power delivery, intelligent traffic management, and smooth data transfer even for demanding applications.



Advanced PoE Capabilities for Seamless Connectivity



The ONV-IPS33028PFM is outfitted with 24 PoE-capable Gigabit Ethernet ports that support up to 30W per port and adhere to the IEEE 802.3af/at PoE standard. This eliminates the need for separate power cords and enables effective power transmission to VoIP phones, IP cameras, wireless access points, and Internet of Things devices. It is the perfect option for businesses and industrial deployments because of the included dual 400W power supplies, which provide consistent PoE functioning.



High-Speed Performance with Intelligent Network Management



VLAN, QoS, SNMP, IGMP Snooping, DHCP Snooping, LLDP, and ACLs are just a few of the Layer 2+ features that the ONV-IPS33028PFM provides. It is designed for optimal networking efficiency. These sophisticated features make it ideal for high-density networks where performance and stability are crucial because they increase network segmentation, bandwidth optimization, and security.



Industrial-Grade Durability for Extreme Environments



This switch, which was designed for severe industrial settings, can function in temperatures between -40°C and 75°C, guaranteeing continuous operation even during severe weather. The IP40-rated metal housing is ideal for industries, outdoor monitoring, transportation systems, and smart city applications because it offers superior protection against dust, impact, and environmental stress.



Flexible Uplink Options for Scalable Network Expansion



The ONV-IPS33028PFM has four gigabit SFP fiber uplink ports in addition to 24 PoE RJ45 ports, enabling long-distance data transfer and high-speed backbone connectivity. It is a flexible option for companies that need high bandwidth and low latency connections since it allows for easy integration with current fiber networks.



Reliable Power Supply for Uninterrupted Operation



This switch reduces downtime and improves network stability with its dual 400W power supply, which provides steady and dependable power output. It is the ideal option for enterprise networks and critical infrastructure since the redundant power input guarantees continuous operation even in the case of a power outage.



Long-Term Reliability with Warranty & Maintenance



Businesses can be assured of long-term dependability and peace of mind with the ONV-IPS33028PFM’s 5-year guarantee and lifetime maintenance support.







Overall, the ONV-IPS33028PFM Gigabit 28-port L2+ managed industrial PoE switch is a robust, feature-rich, industrial-grade PoE switch designed for high-performance security systems, industrial automation, and enterprise networking. This switch offers a smooth and safe networking solution for contemporary enterprises, thanks to its sturdy design, clever control capabilities, and dependable power output.



What is the price of the Gigabit 28-port L2+ managed industrial PoE switch
in Bangladesh?

The latest price of the ONV-IPS33028PFM is (Call for Price +88 018-94683430). You can buy the ONV-IPS33028PFM-at from us at the best price. You can either purchase it through our website or directly visit our office.
