Hikvision DS-3E0105P-E-M 4 Port Fast Ethernet POE Switch Best Price in Bangladesh

Description

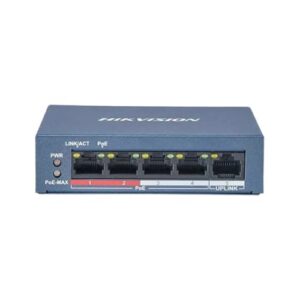

Hikvision DS-3E0105P-E-M 4 Port Fast Ethernet POE Switch

• Network Parameters
• Port Number4 × 10/100 Mbps PoE ports, and 1 × 10/100 Mbps RJ45 port
• Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
• StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Forwarding ModeStore-and-forward switching
• Working ModeStandard mode (default); Extend mode
• High Priority PortsPorts 1 to 2 Hikvision DS-3E0105P-E-M 4 Port Fast Ethernet POE Switch
• Ports For Long-Distance TransmissionPorts 1 to 4
• MAC Address Table1 K
• Switching Capacity1 Gbps
• Packet Forwarding Rate0.744 Mpps
• Internal Cache448 Kbits

• PoE Power Supply
• PoE StandardIEEE 802.3af, IEEE 802.3at
• PoE Power Pin

  End-span: 1/2(-), 3/6(+)

  Mid-span: 4/5(+), 7/8(-)

  8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

• PoE PortPorts 1 to 4
• Max. Port Power30 W
• PoE Power Budget35 W
• Long-Distance PoE38 W

• Dialing Function
• Long RangePorts 1 to 4: up to 300 m; and the speed rate of the port is 10 Mbps.

• General
• ShellMetal material, fan-free design
• Gross Weight0.48 kg (1.06 lb)
• Net Weight0.2 kg (0.4 lb) Hikvision DS-3E0105P-E-M 4 Port Fast Ethernet POE Switch
• Dimension (W × H × D)105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
• Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
• Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
• Operating Humidity5% to 95% (no condensation)
• Storage Humidity5% to 95% (no condensation)
• Power Supply48 VDC, 0.8 A Hikvision DS-3E0105P-E-M 4 Port Fast Ethernet POE Switch
• Power Consumption In Idle3 W

• Approval
• EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016) DS-3E0105P-E-M
• SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
• ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
•
