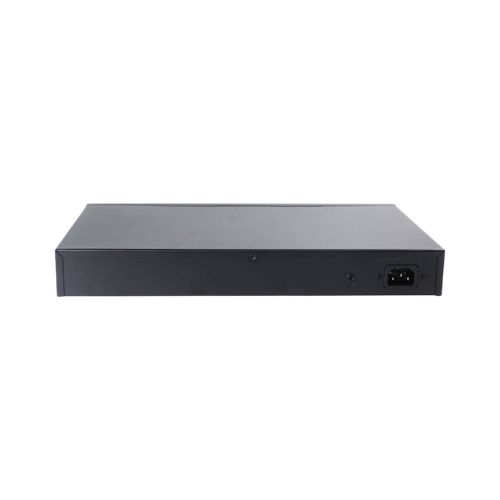

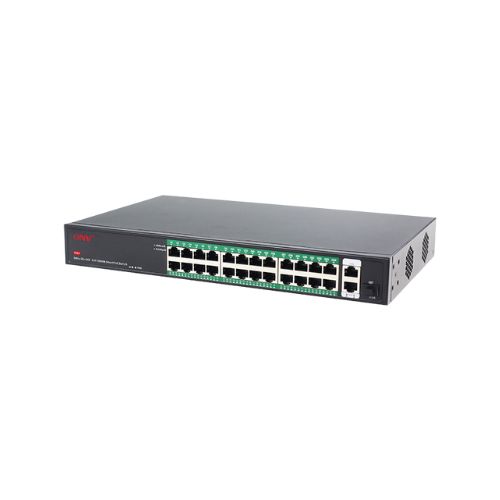

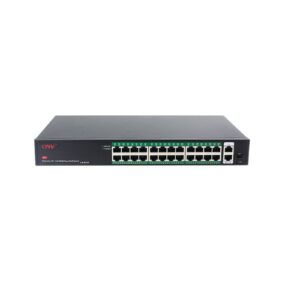

ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch

ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch

Original price was: ৳ 26,530.00.Current price is: ৳ 25,550.00.

Features of the ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch

Model – ONV-H3024PFD
24× Gigabit PoE Ports (250W) – Powers multiple devices with up to 30W per port.
2× RJ45 & 1× SFP Uplink – Flexible network expansion and long-distance support.
54Gbps Switching Capacity – High-speed, lag-free data transmission.
250m PoE Mode – Extends power and data for remote devices.
4KV Lightning Protection – Ensures stable and secure operation.

Description
Reviews (0)

Description

Specification of the ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch

Model	ONV-H3024PFD
Fixed Ports	– 24× 10/100/1000Base-T PoE ports (Data/Power) – 2× 10/100/1000Base-T uplink RJ45 ports (Data) – 1× 1000Base-X uplink SFP fiber port (Data)
Ethernet Ports	Ports 1–26 support 100/1000Base-T(X) auto-sensing, full/half duplex, MDI/MDI-X self-adaptation
Twisted Pair Transmission	– 10BASE-T: Cat3, 4, 5 UTP (≤100 meters) – 100BASE-TX: Cat5 or later UTP (≤100 meters) – 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default without optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC connector)
Optical Cable/Distance	– Multi-mode: 850nm / 0–550m – Single-mode: 1310nm / 0–40km, 1550nm / 0–120km
Network Protocols	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	54Gbps (Non-blocking)
Forwarding Rate @64byte	40.18Mpps
MAC Address Table	8K
Buffer Memory	4M
Jumbo Frame	9.2K
LED Indicators	– Power: PWR (Green) – Network: Link (Green) – PoE: PoE (Red)
PoE Ports	Ports 1–24
PoE Power Supply Pins	1/2(+) 3/6(-)
Max Power per Port	30W, PoE+
Total Power/Input Voltage	250W / AC100–240V
Power Consumption	– Standby: <8W – Full load: <250W
Power Supply	Built-in power supply, AC100–240V 50–60Hz, 4.1A
Operating Temperature/Humidity	-20°C to +55°C, 5%–90% RH non-condensing
Storage Temperature/Humidity	-40°C to +80°C, 5%–95% RH non-condensing
Dimensions (L×W×H)	350mm × 215mm × 44mm
Net/Gross Weight	2.0kg / 2.5kg
Installation	Desktop, Rack-mounted
Lightning Protection	– Lightning protection: 4KV 8/20μs – Protection level: IP30
Certifications	CCC, CE mark (commercial), CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance

ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch

The ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch is made for enterprise applications, surveillance systems, and high-speed networking. Numerous PoE-enabled devices can benefit from its smooth communication and effective power management thanks to its 24× PoE Gigabit ports, 2× RJ45 uplink ports, and 1× SFP fiber port. With its store-and-forward forwarding mode and 54Gbps non-blocking switching capacity, the ONV-H3024PFD is designed to deliver fast, low-latency data transfer. It is perfect for demanding network environments because of its 4M buffer capacity and 8K MAC address table, which enhance traffic flow. With a total PoE budget of 250W, this switch supports IEEE 802.3af/at PoE standards and offers up to 30W per port. It reduces the need for additional power sources by effectively powering VoIP phones, IP cameras, access points, and other PoE devices. By immediately restarting unresponsive PoE devices, the PoE watchdog function guarantees consistent network performance.

Overall, the ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch provides a strong, effective, and safe networking solution that is ideal for large-scale installations, commercial settings, and surveillance networks.

What is the price of the ONV-H3024PFD 24 Ports Full Giga 2RJ45 1SFP PoE Switch in Bangladesh?

The latest price of the ONV-H3024PFD 24 Ports Full Giga PoE Switch is 25,550 BDT. You can buy the ONV-H3024PFD 24 Ports Full Giga PoE Switch from us at the best price. You can either purchase it through our website or directly visit our office.
