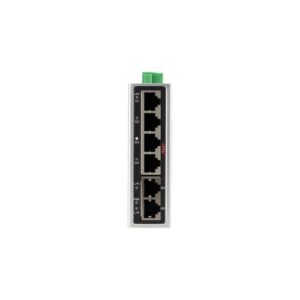

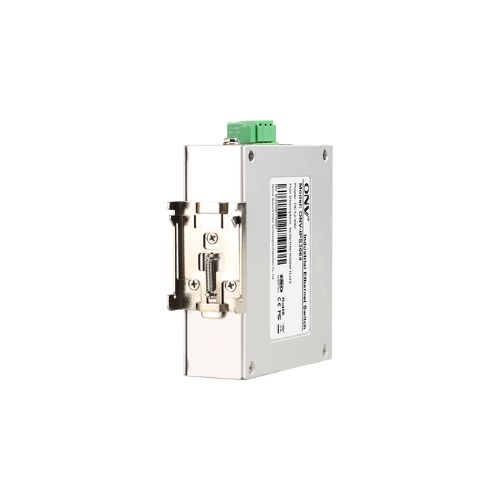

ONV-IPS3064 Gigabit 6-port industrial Ethernet switch

Features of the ONV-IPS3064 Gigabit 6-port industrial Ethernet switch

(Call for Price +88 018-94683430)

Model: ONV-IPS3064
Ports: 6× Gigabit RJ45
Design: IP30-rated, fanless metal housing
Power: Dual DC input (12–48V) with reverse protection
Mounting: DIN rail
Use: Stable in harsh industrial environments

Description
Reviews (0)

Description

Specification of the ONV-IPS3064 Gigabit 6-port industrial Ethernet switch

Model	ONV-IPS3064
Interface Characteristics
Fixed Port	6*10/100/1000Base-T RJ45 ports (Data)
Ethernet Port	Port 1-6 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate @64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216bytes
LED Indicator	Power: PWR (Green), Network: Link G1-G6 (Green)
Power Supply
Power Consumption	Standby<3W, Full load<6W
Input Voltage/ Interface	DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS3064 Gigabit 6-port industrial Ethernet switch

The ONV-IPS3064 Gigabit 6-port industrial Ethernet switch is a high-performance 6-port Gigabit industrial Ethernet switch designed to provide quick, safe, and reliable network connections while withstanding the demands of industrial settings. It is the ideal choice for connecting Ethernet devices in automation, transportation, and surveillance systems because of its small size, sturdy construction, and industrial-grade protection features. The switch has two × Mbps SFP fiber ports for long-distance fiber optic connection and four × Mbps RJ45 ports for high-speed wired devices.

The ONV-IPS3064 is perfect for usage in severe industrial settings because it is designed to function dependably in temperatures ranging from -40°C to 75°C and is housed in a sturdy metal case. Installing it is simple and requires no configuration. To enjoy smooth communication without complicated installations, just connect your devices. With DIN-rail or wall-mounting options, it can be quickly and securely installed, making it appropriate for control panels and small industrial cabinets. designed to protect against voltage spikes with 6KV lightning and surge protection, guaranteeing continuous operation even in power-unstable settings. With no moving parts, the fanless design guarantees energy efficiency and silent operation, lowering maintenance requirements and boosting long-term durability.

Overall, the ONV-IPS3064 Gigabit 6-port industrial Ethernet switch is a robust device that combines speed, safety, and simplicity. It is built for excellent dependability and is designed to fulfill the demands of current industrial networking. This industrial Ethernet switch can meet your needs for long-distance connections, quick data transfers, and robust performance in challenging conditions.
