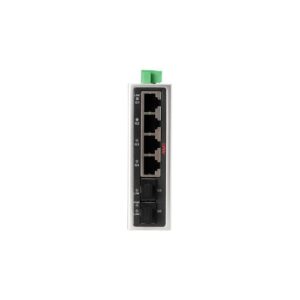

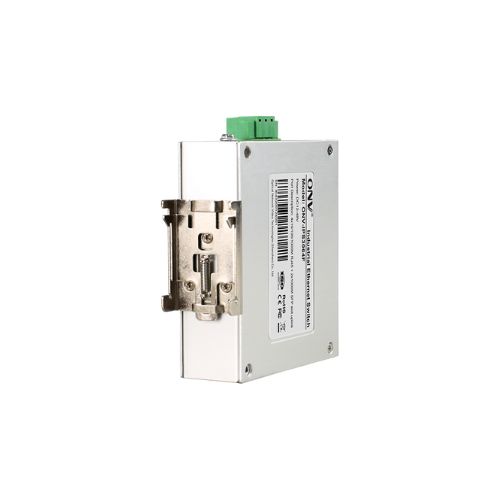

ONV-IPS3064F Gigabit 6-port industrial Ethernet switch

Features of the ONV-IPS3064F Gigabit 6-port industrial Ethernet switch

(Call for Price +88 018-94683430)

4× Gigabit RJ45 + 2× Gigabit SFP ports
Unmanaged, full wire-speed forwarding
Fanless, IP30-rated metal housing
Dual 12–48V DC power input
DIN rail mount, industrial-grade design

Description
Reviews (0)

Description

Specification of the ONV-IPS3064F Gigabit 6-port industrial Ethernet switch

Model	ONV-IPS3064F
Interface Characteristics
Fixed Port	410/100/1000Base-T RJ45 ports (Data) 21000Base-X uplink SFP fiber ports (Data)
Ethernet Port	Port 1-4 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216bytes
LED Indicator	Power: PWR (Green), Network: Link G1-G6 (Green)
Power Supply
Power Consumption	Standby<5W, Full load<8W
Input Voltage/ Interface	DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS): 10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS3064F Gigabit 6-port industrial Ethernet switch

The ONV-IPS3064F Gigabit 6-port industrial Ethernet switch is a sturdy and small 6-port Gigabit industrial Ethernet switch designed for demanding applications in challenging conditions. This switch guarantees smooth connectivity in smart industries, transportation systems, surveillance networks, and more thanks to its robust design, dependable performance, and fiber uplink support. This model offers the flexibility of long-distance fiber transmission and high-speed copper connections with its 4 × 10/100/1000Mbps RJ45 ports and 2 × 100/1000Mbps SFP fiber ports. For industrial networks that require consistent and prolonged connectivity, it is ideal.

The ONV-IPS3064F is built to withstand harsh environments and performs well in temperatures between -40°C and 75°C. Additional defense against corrosion, vibration, and dust is offered by the sturdy metal shell. Simply connect and get started without any setup. It can be easily deployed in complex environments without the requirement for IT experience because it is an unmanaged switch. Users can install the compact form factor in cabinets, control boxes, or equipment sets with freedom because it supports both DIN-rail and wall mounting. Even in areas vulnerable to electrical disruptions or lightning exposure, continuous data flow is ensured by built-in 6KV protection, which shields against unexpected voltage spikes. With no moving parts, the fanless design allows for silent, dust-free cooling, which lowers maintenance needs and boosts long-term dependability.

Overall, the ONV-IPS3064F Gigabit 6-port industrial Ethernet switch is the perfect Ethernet switch for businesses that require dependability under pressure because of its well-balanced combination of performance, robustness, and use. This switch makes sure your network remains connected even under the most trying circumstances, from the manufacturing floor to distant surveillance centers.
