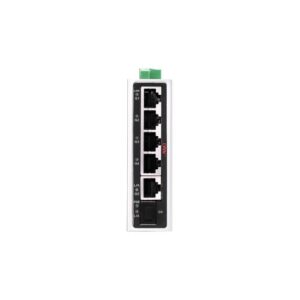

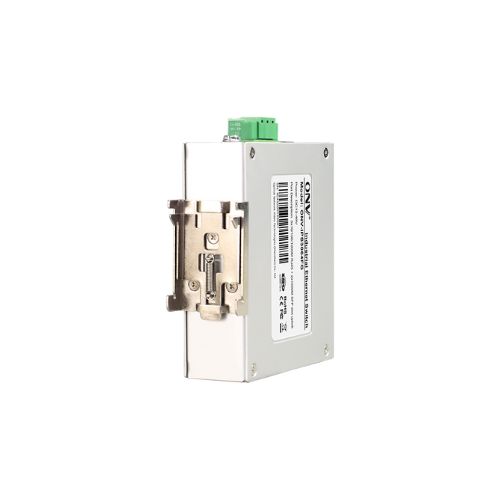

ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch

Features of the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch

(Call for Price +88 018-94683430)

5× Gigabit RJ45 + 1× Gigabit SFP port
Unmanaged, full wire-speed forwarding
IP30 fanless metal housing
Dual 12–48V DC power input
DIN rail mounting, industrial-grade design

Description
Reviews (0)

Description

Specification of the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch

Model	ONV-IPS3064FG
Interface Characteristics
Fixed Port	510/100/1000Base-T RJ45 ports (Data) 11000Base-X uplink SFP fiber port (Data)
Ethernet Port	Port 1-5 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC).
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, 1310nm/ 0-2km, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9216bytes
LED Indicator	Power: PWR (Green), Network: Link G1-G6 (Green), Fiber port: L/A (Green)
Power Supply
Power Consumption	Standby<3W, Full load<8W
Input Voltage/ Interface	DC12-48V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 12V/24W or 24V/24W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	988830mm
Net /Gross Weight	0.25kg/ 0.35kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch

The ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch is a 6-port gigabit industrial Ethernet switch with high performance and durability that is made to satisfy the needs of vital industrial networks. This switch is perfect for applications in manufacturing, surveillance, transportation, and more because it combines exceptional dependability with cutting-edge networking features to guarantee seamless connectivity in challenging conditions. With its 1 × Mbps SFP fiber port for long-distance, high-speed data transfer and 5 × Mbps RJ45 ports for conventional copper Ethernet connections, the ONV-IPS3064FG provides versatile networking options for both short- and long-range needs.

This switch has a sturdy metal casing that offers outstanding defense against adverse weather conditions. It is made to function consistently in factories, warehouses, and outdoor installations in temperatures ranging from -40°C to 75°C. Being an unmanaged switch, the ONV-IPS3064FG is ready to use straight out of the box and doesn’t require any configuration. Installation is made easier by its plug-and-play design, which enables quick network deployment and setup with little downtime. By protecting the network from electrical spikes and guaranteeing uninterrupted network functioning, even in regions vulnerable to power surges, the switch incorporates 6KV lightning and surge protection. The ONV-IPS3064FG’s fanless design increases its endurance and makes it perfect for settings where noise reduction is crucial because it runs quietly and has no moving components. This guarantees energy efficiency and lessens the need for continuous maintenance.

Overall, the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch gives demanding industrial networking applications the performance, flexibility, and dependability they require. This industrial Ethernet switch is made to withstand the most demanding conditions while offering exceptional performance, whether you’re building a new network or updating your current setup.

What is the price of the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch in Bangladesh?

The latest price of the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch is (Call for Price +88 018-94683430). You can buy the ONV-IPS3064FG Gigabit 6-port industrial Ethernet switch from us at the best price. You can either purchase it through our website or directly visit our office.
