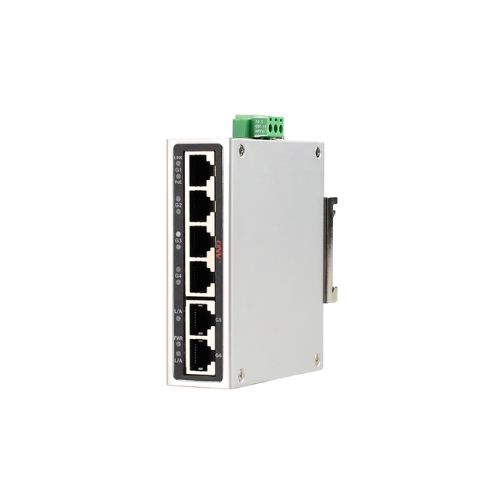

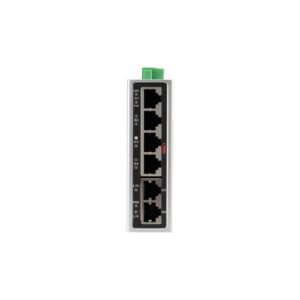

ONV-IPS3064P Gigabit 6-port industrial PoE switch

ONV-IPS3064P Gigabit 6-port industrial PoE switch

Features of the ONV-IPS3064P Gigabit 6-port industrial PoE switch

(Call for Price +88 018-94683430)

Ports: 4× Gigabit PoE + 2× Gigabit RJ45
PoE Standard: IEEE 802.3af/at, up to 30W per port
Industrial Grade: -40°C to 75°C, rugged metal casing
Power Input: Dual DC 48-57V
Design: Fanless, DIN-rail mounting

Description
Reviews (0)

Description

Specification of the ONV-IPS3064P Gigabit 6-port industrial PoE switch

Model	ONV-IPS3064P
Interface Characteristics
Fixed Port	210/100/1000Base-T uplink RJ45 ports (Data) 410/100/1000Base-T PoE ports (Data/ Power)
Ethernet Port	Port 1-6 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	8.93Mpps
MAC	8K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link G1-G4 (Green), PoE: PoE G1-G4 (Green)
PoE & Power Supply
PoE Port	Port 1-4
Power Supply Pin	1/2(+) 3/6(-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<5W, Full load af<60W, at<120W
Input Voltage/ Interface	DC44-56V, 3P industrial terminal and DC power jack, support anti-reverse protection
Power Supply	No, optional 48V/36W or 48V/60W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension	988830mm
Net /Gross Weight	0.25kg/ 0.35kg

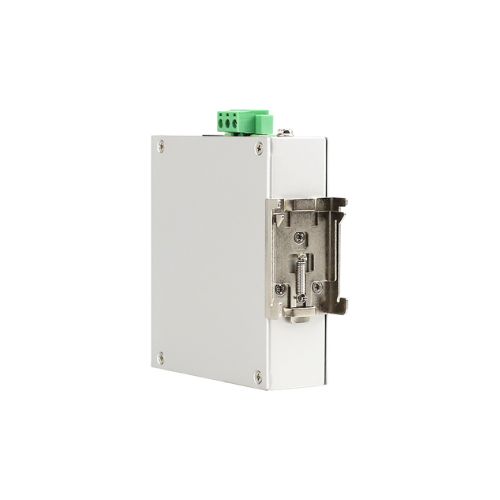

Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	Protection level: IP30 Lightning protection: 6KV 8/20us IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-32 (Free Fall), IEC60068-2-27 (Anti Shock)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS3064P Gigabit 6-port industrial PoE switch

The ONV-IPS3064P Gigabit 6-port industrial PoE switch is a high-performance 6-port industrial PoE switch made for harsh settings where reliable, fast networking is essential. This switch’s two uplink Gigabit RJ45 connections and four PoE guarantee smooth data transfer and effective power distribution for linked devices. This switch can adjust to different network speeds thanks to its six auto-sensing gigabit connections. Its support for MDI/MDI-X auto-adaptation makes integration with current networks simple. By lowering latency and increasing overall network efficiency, the store-and-forward switching method provides full wire-speed performance. Four ports on the ONV-IPS3064P can offer up to 30W of IEEE 802.3af/at PoE power per port.

It does away with the need for separate power sources, which makes it perfect for VoIP phones, IP cameras, and wireless access points. Constructed to endure severe circumstances, this switch functions in temperatures ranging from -40°C to +75°C. Because it can be mounted on a desktop or DIN rail, it is ideal for industrial uses including smart city networks, outdoor monitoring, and factory automation. With its ESD resistance, electromagnetic interference shielding, and 6KV lightning protection, the ONV-IPS3064P guarantees reliable and secure operation in demanding settings. It ensures performance that meets industry standards by adhering to CF, FCC, and RoHS certifications.

Overall, the ONV-IPS3064P Gigabit 6-port industrial PoE switch is a dependable option for companies and industries looking for dependable, high-performance networking solutions because it comes with a 5-year warranty and lifetime maintenance.
