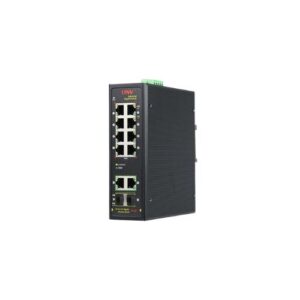

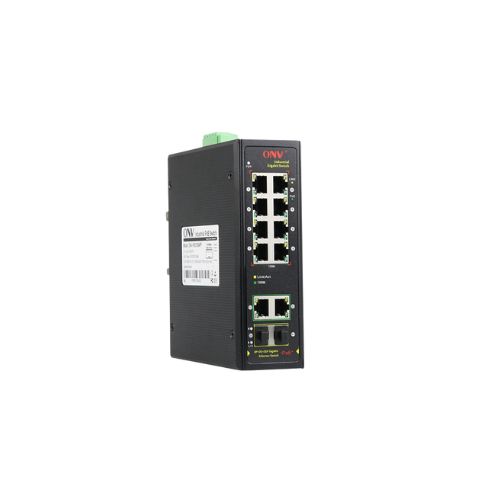

ONV-IPS31128PFB 10/100M 12-port industrial PoE switch

ONV-IPS31128PFB 10/100M 12-port industrial PoE switch

Features of the ONV-IPS31128PFB 10/100M 12-port industrial PoE switch

(Call for Price +88 018-94683430)

12 Ports: 8× PoE (30W), 2× RJ45, 2× SFP
Industrial Grade: -40°C to 75°C, IP40-rated
PoE Support: IEEE 802.3af/at, 48-57V input
Redundant Power: Dual DC for reliability
Rugged Design: DIN-rail mounting, metal casing

Description
Reviews (0)

Description

Specification of the ONV-IPS31128PFB 10/100M 12-port industrial PoE switch

Model	ONV-IPS31128PFB
Interface Characteristics
Fixed Port	810/100Base-TX PoE ports (Data/Power) 210/100/1000Base-T RJ45 ports (Data) 2*1000Base-X uplink SFP fiber ports (Data) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100Base-TX and port 9-10 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm /0-500m, Single-mode: 1310nm /0-40km,1550nm /0-120km
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (non-blocking)
Forwarding Rate@64byte	7.14Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link, link/Act (Yellow), PoE: PoE (Green)
PoE& Power Supply
PoE Port	Port 1-8
Power Supply Pin	1/2 (+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<8W, Full load af<120W, af<240W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	145134.547mm
Net /Gross Weight	0.7kg/ 0.9kg

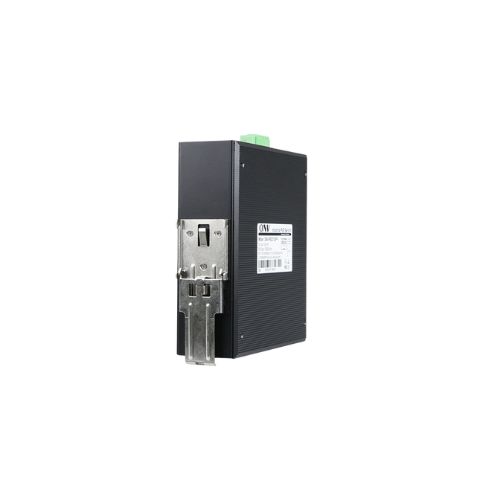

Installation	Desktop, 35mm DIN Rail
Certification& Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV; data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V,1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS31128PFB 10/100M 12-port industrial PoE switch

The ONV-IPS31128PFB 10/100M 12-port industrial PoE switch is an industrial PoE switch with a 10/100M capacity that ONV independently developed. It features two 10/100/1000M adaptive RJ45 ports, two 1000M uplink SFP fiber ports, and eight 10/100M adaptive RJ45 ports. The IEEE 802.3 af/at PoE standard can be supported by ports 1–8, and the maximum single-port PoE power is 30W. It can automatically identify and detect power-receiving devices that comply with the standard and provide power via the network cable because it is a PoE power supply device. Via the network cable, it can provide power to PoE terminal devices such industrial sensors, VoIP, IP cameras, and wireless access points. Additionally, it satisfies the network environment that requires a PoE power supply with a high density. It can establish an economical, stable, and dependable communication network for intelligent transportation, rail transit, the power sector, mining, petroleum, and industrial scenes like shipping, metallurgy, and green energy construction. Unmanaged mode is simple to use, plug & play, and requires no configuration. The ONV-IPS31128PFB is designed to withstand electrically noisy conditions with its 6 kV lightning protection, ESD protection up to ±15 kV air discharge, and surge protection up to kV. Its conformance to IEC and FCC standards ensures safety, reliability, and compliance with industrial networking requirements.

Overall, the ONV-IPS31128PFB 10/100M 12-port industrial PoE switch is the perfect networking solution for mission-critical applications requiring high reliability, security, and efficiency, as well as industrial automation and outdoor surveillance.
