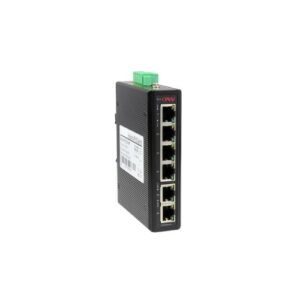

ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch

ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch

Features of the ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch

(Call for Price +88 018-94683430)

Ports: 4× Gigabit PoE + 2× Gigabit RJ45
PoE Standard: IEEE 802.3af/at/bt, up to 90W per port
Industrial Grade: -40°C to 75°C, rugged metal casing
Power Input: Dual DC 48-57V
Design: Fanless, DIN-rail mounting

Description
Reviews (0)

Description

Specification of the ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch

Model	ONV-IPS33064P-bt
Interface Characteristics
Fixed Port	210/100/1000M uplink RJ45 ports (Data) 410/100/1000M bt PoE ports (Data /Power) 2 set V+, V- redundant DC power port (5P industrial Phoenix terminal)
Ethernet Port	Port 1-6 can support 10/100/1000Base-T(X) auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3u 1000Base-T, IEEE 802.3x
Forwarding Mode	Store and Forward (Full Wire Speed)
Switching Capacity	12Gbps (Non-blocking)
Forwarding Rate@64byte	8.93Mpps
MAC	2K
Buffer Memory	2M
Jumbo Frame	9.2K
LED Indicator	Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green)
PoE & Power Supply
PoE Port	Port 1-4
Power Supply Pin	1/2(+) 3/6(-) 4/5(+) 7/8(-)
Max Power Per Port	90W, IEEE 802.3 af/at/bt
Power Consumption	Standby<6W, Full Load af<60W, at<120W, bt<240W
Input Voltage/ Interface	DC48-57V, 5P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+80°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH Non condensing
Dimension (LWH)	11910030mm
Net /Gross Weight	0.4kg /0.5kg
Installation	Desktop, 35mm DIN Rail
Certification & Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM2.5kV, DM1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock), IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.

ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch

The ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch is a sturdy 6-port industrial PoE switch made to provide lag-free networking in demanding settings. For industrial applications, this switch’s four high-power PoE ports and two uplink gigabit RJ45 ports guarantee dependable power delivery, effective data transfer, and improved network stability. It has 2× gigabit uplink RJ45 ports and 4× 10/100/1000M PoE ports (maximum 90W per port), which guarantee smooth power delivery and data transfer for automation systems, wireless APs, and IP cameras.

This switch ensures effective traffic management with its 12Gbps switching capacity, store-and-forward mode, and support for 9.2K jumbo frames. Constructed to withstand extreme temperatures (-40°C to +80°C), it has an anti-vibration design, IP40 durability, and lightning protection (6KV). Up to 6 KV lightning protection for both power and data cables is provided by the ONV-IPS33064P-bt, which is designed with extensive lightning protection and complies with IEC61000 and FCC safety standards. Dust resistance is guaranteed by the IP40-rated enclosure, and its anti-vibration and shock-proof qualities make it perfect for the mining, industrial automation, and transportation industries. Long-term network stability and peace of mind are guaranteed by the ONV-IPS33064P-bt’s 5-year warranty and lifetime maintenance support. This industrial PoE switch is designed to provide exceptional performance, dependability, and efficiency, whether it is being used for remote power distribution, traffic monitoring, or factory automation.

Overall, the ONV-IPS33064P-bt Gigabit 6-port industrial bt PoE switch is a potent industrial-grade PoE switch designed for demanding networking applications in challenging conditions. It is the best option for companies and industries looking for dependable networking solutions because of its gigabit-speed connectivity, strong PoE support, and exceptional durability.
