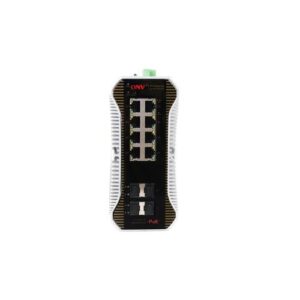

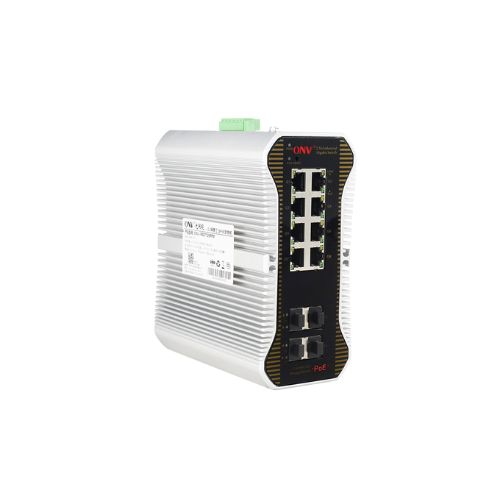

ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch

ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch

Features of the ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch

(Call for Price +88 018-94683430)

Ports: 8× 2.5G PoE + 4× 10G SFP+
PoE Standard: IEEE 802.3af/at/bt, up to 90W per port
Management: L2+ features, VLAN, QoS, ACL, static routing
Redundancy: STP/RSTP/MSTP (<50ms recovery)
Industrial Grade: -40°C to 75°C, fanless, DIN-rail mounting

Description
Reviews (0)

Description

Specification of the ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch

Model	ONV-IPS57128PFM
Interface Characteristics
Fixed Port	Power off alarm switch port (FAULT) 1Console RS232 port (115200, N, 8,1) 41/10G uplink SFP+ fiber ports (Data) 8*10/100/1000/2500Base-T PoE ports (Data/ Power) 2 set V+, V- redundant DC power ports (6P industrial Phoenix terminal)
Ethernet Port	Port 1-8 can support 10/100/1000/2500Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters) 2500BASE-T: Cat6a or later UTP (≤100 meters)
Optical Fiber Port	1/10G SFP+ optical fiber port, default no include optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km
Chip Parameter
Network Management Type	L2+
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3be 2.5GBase-T, IEEE 802.3ae 10GBase-SR/LR, IEEE 802.3x
Forwarding Mode	Store and Forward (Full wire speed)
Switching Capacity	96Gbps (non-blocking)
Forwarding Rate@64byte	89.28Mpps
CPU	Dual Core 1GHz
DRAM	2G
FLASH	256M
MAC	32K
Buffer Memory	16M
Jumbo Frame	12K
LED Indicator	Power/ System: SYS (Green), Rate: 100/1000 (Green), Network: Link (Yellow), PoE: PoE (Green), Fiber port: L/A (Green)
Reset Switch	Yes, press and hold the switch for 10 seconds and release it to restore the factory settings
PoE& Power Supply
PoE Port	Port 1-8
PoE Management	Port PoE real-time load power display, Port PoE output on/off, PoE work and time scheduling
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Power Consumption	Standby<13W, full load af<120W, at<240W
Input Voltage/ Interface	DC48-57V, 6P industrial Phoenix terminal, support anti-reverse protection.
Power Supply	No, optional 48V/120W or 48V/240W industrial power supply
Physical Parameter
Operation Temp/ Humidity	-40~+75°C, 5%~90% RH non condensing
Storage Temp/ Humidity	-40~+85°C, 5%~95% RH non condensing
Dimension (LWH)	16615075mm
Net /Gross Weight	1.8kg/ 2.1kg

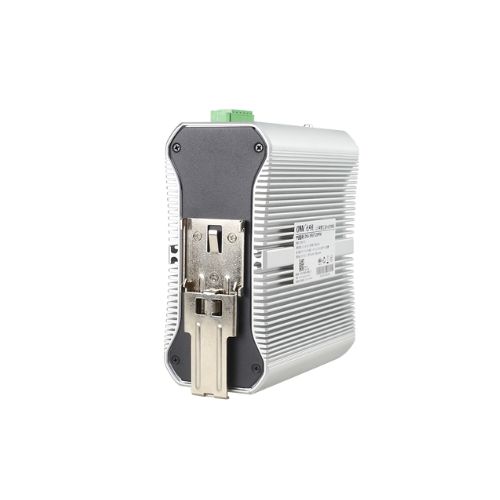

Installation	Desktop, 35mm DIN Rail
Certification& Warranty
Lightning Protection	IEC61000-4-3 (RS):10V/m (80~1000MHz) FCC Part 15/CISPR22 (EN55022): Class A IEC61000-6-2 (Common Industrial Standard) IEC61000-4-9 (Pulsed magnet field): 1000A/m IEC61000-4-10 (Damped oscillation): 30A/m 1MHz IEC61000-4-12/18 (Shockwave): CM 2.5kV, DM 1kV Protection level: IP40, Lightning protection: 6KV 8/20us IEC61000-4-4(EFT): Power cable: ±4kV, data cable: ±2kV IEC61000-4-16 (Common-mode transmission): 30V, 300V, 1s IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-6 (Radio frequency transmission): 10V(150kHz~80MHz) IEC61000-4-8 (Power frequency magnetic field): 100A/m, 1000A/m, 1s-3s IEC61000-4-5 (Surge): Power cable: CM±4kV/ DM±2kV, data cable: ±4kV
Mechanical Properties	IEC60068-2-6 (Anti Vibration), IEC60068-2-27 (Anti Shock),IEC60068-2-32 (Free Fall)
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class A, RoHS
Warranty	5 years, lifelong maintenance.
Network Management Feature
Interface	IEEE 802.3x flow control (Full duplex) Port exception protection mechanism Port real-time flow management (Flow Interval) Broadcast storm suppression based on port rate Optical port SFP module DDMI real-time digital diagnosis Port EEE Green Ethernet Energy-Saving configuration and status view Limit the rate of incoming and outgoing packet traffic, with mini granularity of 16Kbps and max of 1Gbps
L3 Feature	ARP protocol max 1024 entries Static route, RIPv1/v2, RIPng, OSPFv1/v2, OSPFv3 L2+ network management function, IPV4/ IPV6 dual-stack management
VLAN	Port configuration of Access, Trunk, Hybrid, IEEE 802.1q Voice VLAN, GVRP VLAN protocol, Port-based VLAN (4K) Protocol-based VLAN, MAC address-based VLAN, QinQ configuration
Port Aggregation	LACP dynamic aggregation, Static aggregation, Max 6 aggregation groups and max 8 ports per group.
Spanning Tree	STP BPDU Guard, BPDU filtering and BPDU forwarding STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s)
ERPS Ring Network	ERPS, Recovery time less than 20ms, ITU-T G.8032
Multicast	MLD Snooping, Multicast VLAN User quick log out, MVR (Multicast VLAN Registration) IGMP Snooping v1/v2/v3 and 1024 multicast groups at most
Mirroring	Bidirectional traffic mirroring for basic ports one-to-multiple mirroring, supports up to 4 port sessions
QoS	Flow-based rate limiting, Flow-based redirection Queue scheduling algorithm (SP, WRR, SP+WRR) Flow-based packet filtering, 8*Output queues of each port 802.1p/ DSCP priority mapping, Diff-Serv QoS, Priority mark/ remark
ACL	ACL distribution based on port and VLAN L2-L4 packet filtering function, matching the first 80 bytes message, and provides ACL definitions based on source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN, etc.
Security	Port based IEEE802.1X authentication SSL guarantees data transmission security Quad binding function of IP+MAC+VLAN+ports MAC address learning limit, MAC address black hole IP Source Guard function, AAA& RADIUS certification Anti DoS attack, Port broadcast message suppression Hierarchical user management and password protection SSH 2.0 provides a secure encrypted channel for user login Host data backup mechanism, ARP intrusion detection function Port isolation, IP source address protection, ARP message speed limit function
DHCP	DHCP Client, DHCP Snooping, DHCP Server
Management	NTP clock, Web network management (https) Ping detection, System work log, SNMP V1/V2/V3 FTP, TFTP file upload and download management Console/Telnet/CLI/SSH command line configuration ONV-NMS platform cluster management (LLDP+SNMP) One click restore, Link Layer Discovery Protocol (LLDP) Cable status check, Viewing CPU Instant Utilization Status
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch

The ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch is a top-performing 10G PoE switch of industrial grade made to provide dependable networking solutions in challenging conditions. With its four 1/10G SFP+ fiber uplink connections and eight fast 10/100/1000/2500Base-T PoE ports, this switch guarantees smooth data transfer for business, security, and industrial applications.

Powerful Networking & Advanced Management

This Layer 2+ controlled switch is perfect for mission-critical deployments because it supports advanced networking protocols like VLAN, QoS, Spanning Tree, and ERPS ring network. Even with heavy loads, the dual-core GHz CPU and Gbps switching capabilities guarantee seamless traffic flow.

Reliable PoE Power Delivery

The ONV-IPS57128PFM supports IEEE 802.3af/at PoE and can deliver up to 30W per port, allowing direct power to PoE-compatible devices such as VoIP phones, wireless access points, and IP cameras. Effective energy management is made possible by real-time PoE power scheduling and monitoring.

Industrial-Grade Durability

This switch, which has an IP40-rated metal casing and is designed to withstand harsh environments, functions at temperatures between -40°C and 75°C. In addition, it has IEC60068-certified anti-vibration and shock resistance, as well as 6KV lightning protection, guaranteeing continuous operation in industrial environments.

Seamless Network Management

IT administrators have flexible control over the ONV-IPS57128PFM thanks to its support for a variety of management options, such as Web GUI, CLI, SNMP, and ONV-NMS cluster management. In order to facilitate troubleshooting and maintenance, it also provides system work logs and one-click restoration.

Overall, the ONV-IPS57128PFM 2.5G 12-port L2+ managed industrial PoE switch is a robust, dependable, and secure networking solution designed for industrial settings that require resilient PoE capabilities and fast data transfer.
