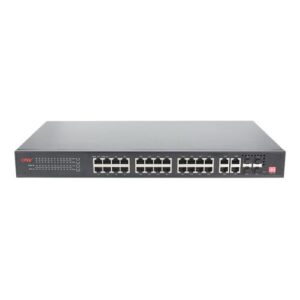

ONV-POE53028PFCMS Gigabit 28-port PoE switch

Key Features of the ONV-POE53028PFCMS Gigabit 28-port PoE switch

24 PoE ports with up to 30W per port
4 Gigabit RJ45 + 4 SFP uplink ports
Built-in power supply with 250W total power
Easy web and platform-based management
3-year warranty

(Call for Price +88 018-94683430)

Description
Reviews (0)

Description

Specification of the ONV-POE53028PFCMS Gigabit 28-port PoE switch

Model	ONV-POE53028PFCMS
Interface Characteristics
Fixed Port	24*10/100/1000Base-T PoE ports (Data/ Power)
	4*10/100/1000Base-T uplink RJ45 ports (Data)
	4*1000Base-X uplink SFP fiber cmobo ports (Data)
Ethernet Port	Port 1-24 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters)
	100BASE-TX: Cat5 or later UTP (≤100 meters)
	1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber interface, default no included optical module (optional single-mode/ multi-mode, single fiber/ dual fiber optical module. LC)
Optical Cable/ Distance	Multi-mode: 850nm/ 0-550m, Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km.
Chip Parameter
Network Management Type	L2 (Web management, platform management)
Network Protocol	IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode	Store and Forward (Full wire-speed)
Switching Capacity	56Gbps (Non-blocking)
Forwarding Rate @64byte	41.66Mpps
MAC	8K
Buffer Memory	4M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), System: SYS (Green), Network: Link (Green), PoE: PoE (Red), Fiber port: L/A (Green)
Reset Switch	Press and hold Reset for 10 seconds and then release to restore factory default settings.
PoE& Power Supply
PoE Port	Port 1-24
PoE Management	Remote on/off of PoE ports, port power, and real-time status viewing
Power Supply Pin	1/2(+) 3/6 (-)
Max Power Per Port	30W, IEEE 802.3 af/at
Total PWR/ Input Voltage	250W/ (AC100-240V)
Power Consumption	Standby<16W, Full Load<250W
Power Supply	Built-in power supply, AC100~240V 50-60Hz, 4.1A
Physical Parameter
Operation Temp/ Humidity	-20°C~+55°C, 5%~90% RH Non condensing
Storage Temp/ Humidity	-40°C~+75°C, 5%~95% RH Non condensing
*Dimension (LWH)*	44027044mm
Net /Gross Weight	2.85kg /3.7kg
Installation	Desktop, Wall mount, 1U/19” cabinet
Certification & Warranty
Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	3 years, lifelong maintenance.
Network Management Feature
Interface	Port status display, Port traffic statistics
	Port duplex/ negotiation rate configuration
	EEE Energy-saving and green Ethernet function
	IEEE802.3x flow control configuration (Full-duplex)
VLAN	Port-based IEEE802.1Q VLAN configuration (4K)
Security	Broadcast storm suppression
Management	One-key recovery, Web Management
	Mobile APP operation and maintenance management
	ONV-NMS platform management (Local platform/ Cloud platform)
System	Web browser: Mozilla Firefox 2.5 or higher, Google Chrome V42 or higher, Cat5 and above Ethernet cable
System	TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, Mac OS X) installed on each computer in the network Cat5 and above Ethernet cable

ONV-POE53028PFCMS Gigabit 28-port PoE switch

The ONV-POE53028PFCMS Gigabit uplink 28-port PoE switch is a powerful and easy-managed Layer 2 switch engineered for professional IP surveillance and large-scale networking solutions. Equipped with 24 Gigabit PoE ports, 4 Gigabit RJ45 uplink ports, and 4 Gigabit SFP combo uplink ports, this switch offers exceptional flexibility and bandwidth for growing network infrastructures.

It complies with IEEE 802.3af/at standards, delivering up to 30W per PoE port with a total PoE budget of 250W, allowing you to power a variety of PoE devices such as IP cameras, wireless access points, and VoIP phones—eliminating the need for separate power supplies.

With a switching capacity of 56Gbps and a forwarding rate of 41.66Mpps, it ensures seamless data transmission without bottlenecks. The switch supports web-based configuration, app-based control, and ONV-NMS platform management, giving network administrators complete control and visibility. Additional features like port-based VLAN, traffic statistics, broadcast storm suppression, and one-key recovery add to the switch’s intelligent functionality.
