ONV PSE3301AC Gigabit Single Port PoE Injector

Description

The ONV PSE3301AC Gigabit Single Port PoE Injector is a versatile and reliable Gigabit single port PoE injector that provides a simple and cost-effective way to power PoE devices.

Specification	ONV-PSE3301AC
Model	ONV-PSE3301AC
Interface Characteristics	Fixed Port
Fixed Port	1*10/100/1000M PoE port (Data/Power)
Uplink Port	1*10/100/1000M uplink RJ45 port (Data)
Ethernet Port	10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T:Cat3,4,5 UTP(≤100 meter)
Network Protocol and Indicator
Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
LED Indicator	Power: PWR (Green), POE: PoE (Green)
PoE & Power Supply
PoE Port	IEEE802.3af/at @ POE
Power Supply Pin	Default 1/2 (+)3/6 (-), optional 4/5(+) 7/8(-)
Max Power Per Port	30W, IEEE802.3af/at
Total PWR / Input Voltage	18W /(AC100-240V)
Power Consumption	Standby<3W, Full load<15W
Configure Power	N/A, AC100-240V 50-60Hz 0.5A
Physical Parameter
Operation TEMP / Humidity	-20~+55°C, 5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+80°C, 5%~95% RH Non condensing
Dimension (LWH)	118.19*52.94 *33.33mm
Net /Gross Weight	<0.18kg /<0.2kg
Installation	Desktop
Certification & Warranty
Lightning Protection	Port lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CCC, CE mark, commercial, CE/LVD EN62368-1, FCC Part 15 Class B, RoHS
Warranty	1 year, lifelong maintenance.

ONV PSE3301AC Gigabit Single Port PoE Injector

The ONV PSE3301AC Gigabit Single Port PoE Injector is a Gigabit single port PoE injector that supports the IEEE 802.3af/at PoE standard. It can provide up to 30W of power to a PoE-enabled device over a single Ethernet cable. The PSE3301AC is easy to install and use, and it is ideal for powering PoE devices such as IP cameras, wireless access points, and VoIP phones.

A PoE injector, also known as Ethernet-powered mid-span equipment, is a device that allows you to power PoE-enabled devices over a standard Ethernet cable. This is convenient because it eliminates the need to run a separate power cable to each device.

One example of a PoE injector is the ONV PSE3301AC Gigabit Single Port PoE Injector. This is an unmanaged gigabit PoE injector that can provide up to 30W of power to a single device. It is easy to use and install, and it is a cost-effective way to add PoE support to your network.

PoE injectors are ideal for a variety of applications

• Wireless access points
• IP cameras
• VoIP phones
• Visual intelligent building intercoms
• Other PoE-enabled devices

What is Benefits ONV PSE3301AC Gigabit Single Port PoE Injector ?

• Eliminates the need for a separate power cable for each PoE device
• Simplifies cabling and installation
• Reduces costs
• Increases flexibility and scalability
• Improves reliability

FEATURE

Gigabit Ethernet port (1 Ethernet in and 1 Ethernet out ) easy to connect

◇ Using 1 Ethernet in and 1 Ethernet out connection mode, 1*10/100/1000Mbps RJ45 port convenient connection, and simple maintenance.

◇ Support non-blocking wire-speed forwarding.

Smart PoE power supply function

◇ 1*10/100/1000Base-T RJ45 port support PoE power, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

◇ IEEE802.3af/at PoE standard, without damaging non-PoE devices.

Stable and reliable

◇ CCC, CE, FCC, RoHS.

◇ Support desktop and wall-mounted installation.

◇ Plug and play, no configuration, simple and convenient.

◇ The user-friendly panel can show the device status through the LED indicator of PWR, PoE.

◇ Low power consumption, no fan design, the flame-retardant plastic shell is exquisite and beautiful.

◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

What Is New ONV PSE3301AC Gigabit Single Port PoE Injector ?

ONV-PSE3301AC is still a good PoE injector, and it is suitable for a variety of applications. It is easy to use and install, and it is a cost-effective way to add PoE support to your network.

If you are looking for a newer PoE injector with more advanced features, you may want to consider the following products:

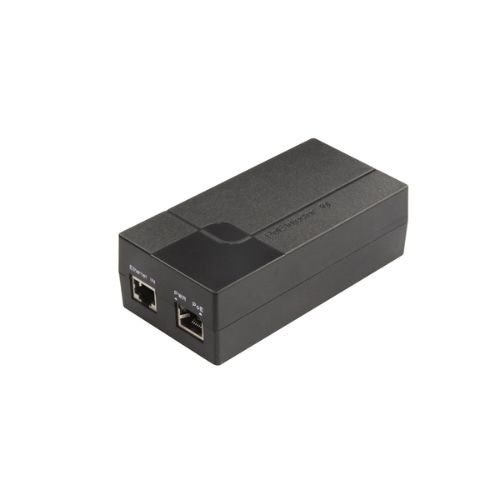

• ONV-PSE3301AC-at: This is an updated version of the ONV-PSE3301AC that supports the IEEE 802.3at PoE standard, which can provide up to 30W of power to PoE-enabled devices.
• ONV-PSE3301-24P: This is a 24-port PoE injector that can provide power to up to 24 PoE-enabled devices. It is a good choice for businesses and organizations that need to power multiple PoE devices.
• ONV-PSE3301-48P: This is a 48-port PoE injector that can provide power to up to 48 PoE-enabled devices. It is a good choice for large businesses and organizations that need to power a large number of PoE devices.

How to use the ONV PSE3301AC Gigabit Single Port PoE Injector?

1. Connect the PSE3301AC to a power outlet using the included power adapter.
2. Connect an Ethernet cable from the PSE3301AC’s PoE port to the PoE-enabled device.
3. Connect an Ethernet cable from the PSE3301AC’s uplink port to your network switch or router.
4. The PSE3301AC will automatically detect the PoE-enabled device and begin providing power.
